Vivotek CD8371-HNVF2
Vivotek CD8371-HNVF2 3MP 940nm IR Corner Dome Network Camera

Vivotek

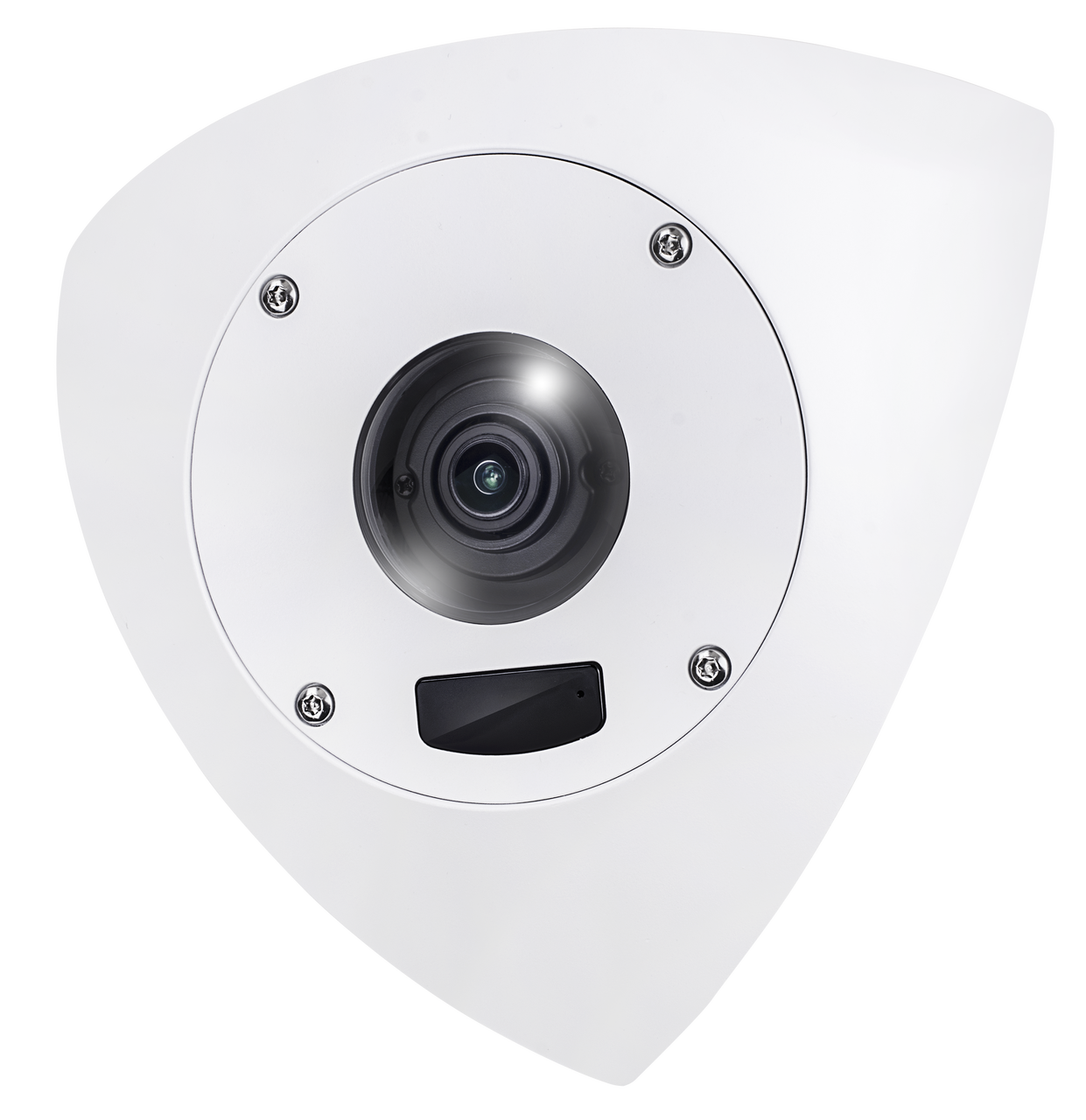

Vivotek CD8371-HNVF2 3MP 940nm IR Corner Dome Network Camera

Sale price$675.00
Discontinued
SKU: CD8371-HNVF2

Discontinued - Recommended Replacement: N/A

Contact

Vivotek CD8371-HNVF2 Features

  • Max Resolution: 2048x1536 (3MP)
  • Image Sensor: 1/2.8" Progressive CMOS
  • Day/Night: Yes, Removable IR-cut filter for day & night function
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.01 Lux @ F1.8 (Color); < 0.01 Lux @ F1.8 (B/W); 0 Lux with IR illumination on
  • IR Illuminators: Built-in 940nm IR illuminators with Smart IR
  • IR Illuminator Range: up to 10m
  • Lens Type: Fixed-focal
  • Focal Length: f = 2.8 / F1.8
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Manual
  • Field of View: 108° (Horizontal); 79° (Vertical); 137° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 20 fps @ 2048x1536
  • WDR Technology: WDR Pro (100dB)
  • Image Settings: Adjustable resolution, quality and constant bit rate control; Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, 5m range
  • Audio Capabilities: Built-in microphone, External microphone input, External line output
  • Alarm/Event Management: Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66 & Vandal-proof IK10
  • Dimensions: 226 x 221 x 112 mm
  • Weight: 1522g (3.35 lb)
  • Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)
  • Operating Humidity: N/A
  • Power/Consumption: DC 12V, AC 24V, IEEE 802.3af PoE Class 2 / 6.2W
  • Warranty: 3 years
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, I/O cable, mounting bracket

Vivotek CD8371-HNVF2 Overview

VIVOTEK’s CD8371-HNVF2/HNTV is a vandal-proof network camera specifically designed for prisons and correctional facilities. With up to 20 fps at 3-Megapixel resolution, 940nm IR illuminators, two-way audio, and available in either fixed lens (-HNVF2) or vari-focal (-HNTV), the CD8371-HNVF2/ HNTV is the most feature rich prison cell surveillance camera available today. The CD8371-HNVF2/HNTV has an anti-ligature design to limit the possibilities of self inflicted harm or suicide, a required feature for environments like prisons, holding cells, psychiatric wards, mental hospitals, and correctional institutions.

Along with having an anti-ligature design, the CD8371-HNVF2/ HNTV is designed to cover a wide area. Designed to be installed in the upper corner of a cell, the CD8371-HNVF2/HNTV has both a wide angle horizontal FOV (up to 108°) and vertical FOV (up to 79°) enabling full coverage of a rectangular cell. Both models lenses also have a 15° vertical tilt to enable vertical view adjustments where needed. WDR Pro is included enabling better image quality where variable lighting is a concern as well as SNV technology to produce high-quality full-color surveillance under low-light conditions. These combined features, along with a built-in microphone, enable correctional officers, mental health evaluators, and prison guards to monitor all the activities of those under their supervision.

The CD8371-HNVF2/HNTV also supports the industry-standard H.264 compression technology, reducing file sizes and conserving network bandwidth. It also is ONVIF compliant, enabling integration with any existing Video Management Software or VIVOTEK's own VAST Central Management Software.
