Vivotek CU9183-H Camera Unit, Cylinder Shape, 5M 30fps, Fisheye Lens

VIVOTEK’s VC9101 is a high-performance split-type camera system. Its discreet design, rich functionality and ability to be flexibly integrated into even the tightest spaces, make this camera ideal for indoor or covert surveillance of ATMs, banks, stores and offices.

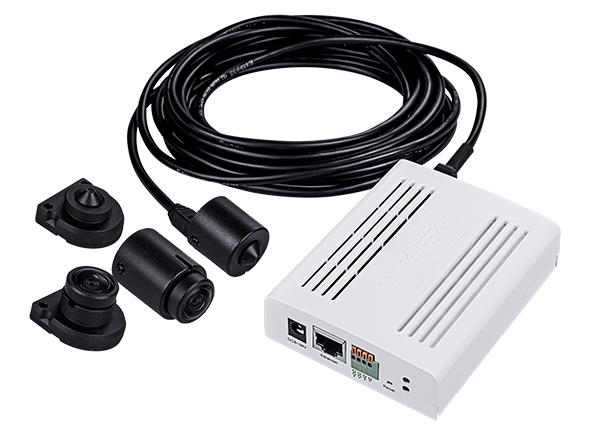

The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.

VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.

The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.

Specifications - Camera Unit
Model CU9183-H(F): Fishey e Camera
Image Sensor 1/2.7" Progressiv e CMOS
Maximum Resolution 30 f ps @ 1920x1920
Focal Length f = 1.22 mm
Aperture F2.0
Field of View
180° (Horizontal)
180° (Vertical)
180° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Minimum Illumination 0.035 lux @ F2.0 (Color)
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
S/N Ratio 56.3 dB
Dy namic Range 120 dB

Dimensions

CU9183-H: Ø 24 x 37 mm (Without cable)
CU9183-HF: 33 x 32 x 28 mm (Without cable)

Weight

CU9183-H: 28g

CU9183-HF: 52g
Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Humidity 90% RH (non-condensing)
