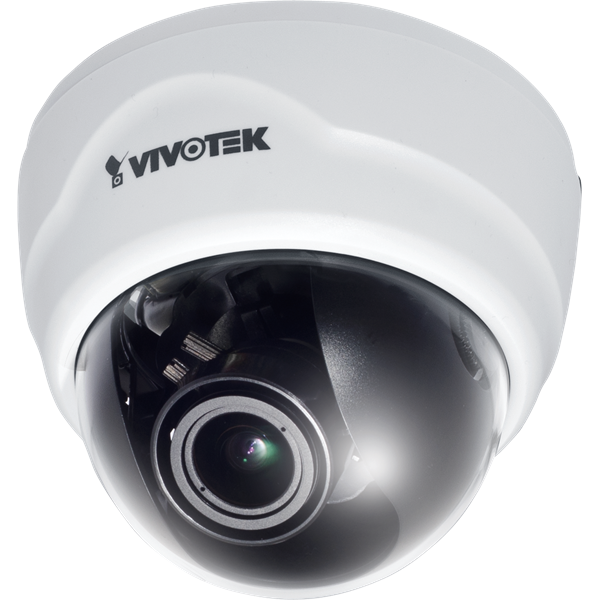

Vivotek FD8131 1MP Vari-focal Lens Compact Design Network Camera

Vivotek

Vivotek FD8131 1MP Vari-focal Lens Compact Design Network Camera

Sale price$310.00
Discontinued
SKU: FD8131

Contact

Discontinued, replaced by the FD8167.

Vivotek FD8131 Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.5 Lux @ F1.4, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 3 ~ 12 mm, F1.4 (wide, F2.0 (tele)
  • Zoom: ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 61.34° ~ 24.13° (horizontal), 37.56° ~ 15.08° (vertical), 72.85° ~ 28.18° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: 3-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using HTTP, SMTP, FTP, NAS server, File upload via HTTP, SMTP, FTP, and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, microSD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 109.5 mm x 90.5 mm
  • Weight: 500 g
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: 802.3af Power-over-Ethernet (Class 1), 12V DC, Max. 3.84 W
  • Warranty: 2 Years
  • What's Included: FD8131, quick installation guide, clamp core, screws, alignment sticker, RJ45 female, software CD, warranty card

Vivotek FD8131 Overview

VIVOTEK FD8131 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish, & efficient housing. Equipped with a 1MP CMOS sensor enabling viewing resolution of 1280x800 at 30 fps in all three compression styles (H.264, MJPEG, & MPEG-4), Users need look no further for an all-in-one camera capable of capturing high quality, high resolution video, in a wide variety of indoor applications. This camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streamssimultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms. With the vari-focal lens ranging from 3.0 ~ 12 mm , the FD8131 provides users the freedom to adjust the field of view in accordance with their application. Also included are a number of advanced features which are standard for VIVOTEK cameras, including tamper detection,MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131 provides the best value in IP surveillance for indoor applications such as offices, banks, and retail stores.
