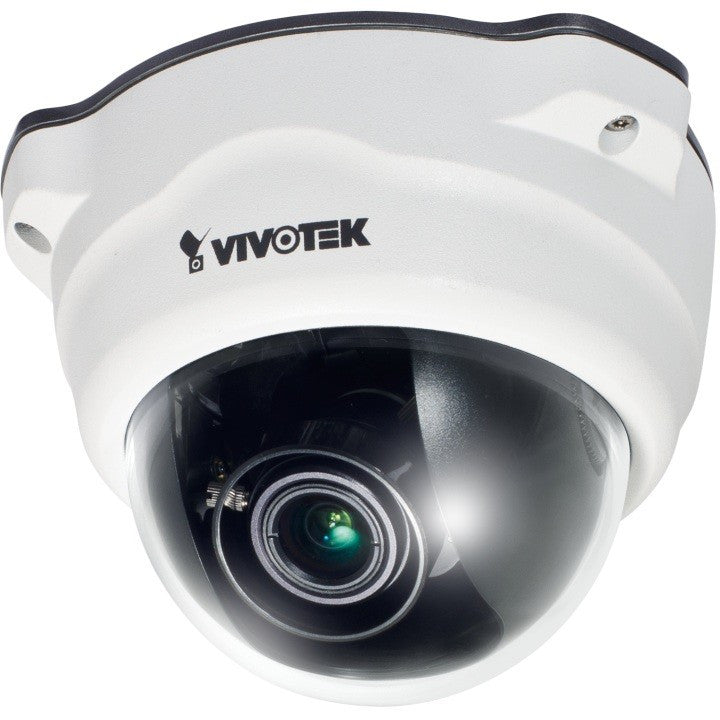

Vivotek FD8131V 1MP Vari-focal Vandal-proof Compact Design Fixed Dome Network Camera

Vivotek

Vivotek FD8131V 1MP Vari-focal Vandal-proof Compact Design Fixed Dome Network Camera

Sale price$345.00
Discontinued
SKU: FD8131V

Vivotek FD8131V Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.5 Lux @ F1.4, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-focal
  • Focal Length: f = 3 ~ 12 mm, F1.4 (wide), F3.2 (tele)
  • Zoom: ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 61.34° ~ 24.13° (horizontal), 37.56° ~ 15.08° (vertical), 72.85° ~ 28.18° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, gain, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: 3-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using HTTP, SMTP, FTP, NAS server, File upload via HTTP, SMTP, FTP, and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, icroSD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing, Vandal-proof IK10-rated metal housing
  • Dimensions: 133 mm x 94 mm
  • Weight: 589 g
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: 802.3af Power-over-Ethernet (Class 1), 12V DC, Max. 3.84 W
  • Warranty: 2 Years
  • What's Included: FD8131V, quick installation guide, clamp core, screwdriver, screws, alignment sticker, software CD, warranty card
Vivotek FD8131V Overview

VIVOTEK FD8131V are easy-to-use fixed dome network cameras specifically designed for indoor security applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality HD video. With the vari-focal lens, the FD8131V provide users the freedom to adjust the field of view in accordance with their applications. The IP66-rated housing of FD8131V protects the camera body against rain and dust and ensures operation under poor weather conditions. Furthermore, the metal vandal-proof housing effectively provides robust protection of FD8131V from vandalism. Also included are a number of advanced features standard on VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131V present the best value in IP surveillance for indoor applications
