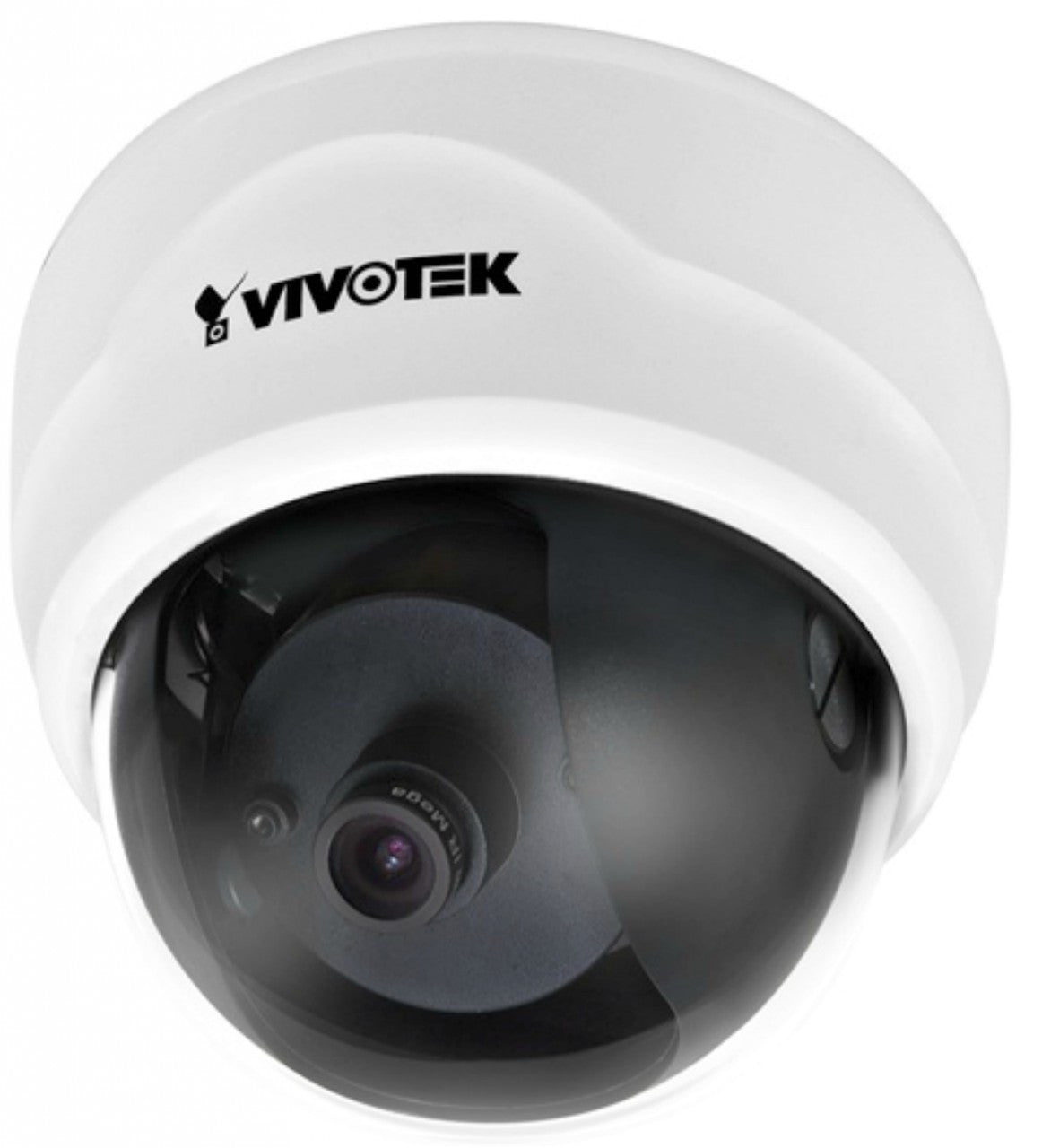

Vivotek FD8133 H.264 Dome Network IP Camera
Vivotek FD8133 H.264 Dome Network IP Camera

Vivotek

Vivotek FD8133 H.264 Dome Network IP Camera

$220.00 $290.00
Discontinued
SKU: FD8133

Discontinued - Recommended Replacement: FD8131

Link to Manufacturer's Page

Contact

DISCONTINUED, REPLACED BY THE FD8131.

Vivotek FD8133 Features

  • Resolution: 1280x800
  • Image Sensor: 1/4" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.3 Lux / F1.8 ( low light mode )
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed Board Lens 1.2 ( wide ), 2.1 ( tele )
  • Focal Length: f = 3~9
  • Zoom: N/A
  • Iris: Auto
  • Focus: Focus Assist
  • Field of View: 56° (horizontal), 41° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30/25 fps at 1280x800
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: External microphone, Audio Output, External/Internal Microphone Switch, Two-Way Audio, Audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 110mm x 91 mm
  • Weight: 463 g
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: 12V DC, Power consumption: Max. 3.5 W
  • Warranty: 2 Years
  • What's Included: Installation Wizard 2, 32-CH Central management software

Vivotek FD8133 Overview

The Vivotek FD8133 dome network IP camera offers high quality video with high resolution video. With a 1 MP image sensor allow resolutions up to 1280x800 at 30 fps, the FD8133 is an ideal dome security camera for indoor surveillance and monitoring. The camera also supports H.264 video compression which reduces bandwidth on the network and file size of images.
With the support of simultaneous H.264, MPEG-4 and MJPEG video streaming, the FD8133 supports many applications and browsers and also allows for streaming in different resolutions, frame rates and video quality. Support for ONVIF standard also allows for simplified integration and enhanced interoperability. The Vivotek FD8133 also comes with a built-in MicroSD card slot allowing you to record video and snapshots directly on the FD8133 without the need of a PC running recording software. For indoor applications requiring durability against vandals, the FD8133 includes tamper detection which can detect and alert to video blockage, redirecting, defocusing and spray-painting. These features allow the FD8133 to be an ideal candidate for applications including transportation, prisons, ATM's, banks, offices and retail stores. The Vivotek FD8133 comes with free PC based IP recording software for up to 32 Vivotek devices.
