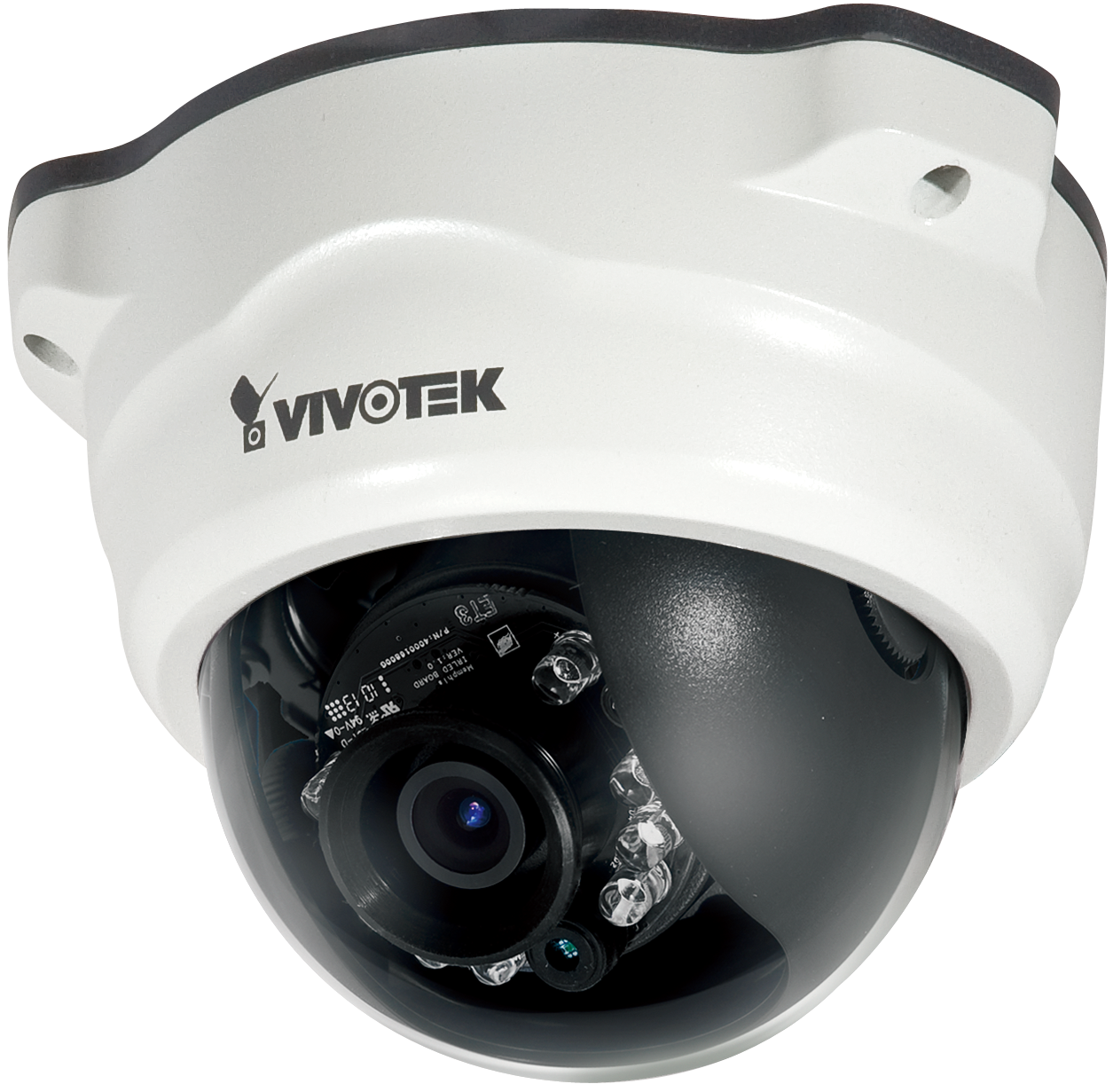

Vivotek FD8134V Vandal Proof Day-Night MP Dome Camera


Vivotek FD8134V Vandal Proof Day-Night MP Dome Camera

Sale price$285.00
SKU: FD8134V

Discontinued, replaced by the FD8154V.

Vivotek FD8134V Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.3 Lux @ F1.8 (color); 0.001 Lux @ F1.8 (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: 10 meters
  • Lens Type: Fixed Board lens
  • Focal Length: f=3.6 mm, F1.8
  • Zoom: N/A
  • Iris: N/A
  • Focus: Manual
  • Field of View: 56° (horizontal), 41° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30/25 fps at 1280x800 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual, or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, MicroSD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing, Vandal-proof IK10-rated metal housing
  • Dimensions: Ø: 133mm x 94 mm
  • Weight: 623.5 g
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: 802.3af compliant Power-over-Ethernet (Class 2), 12V DC, Power consumption: Max. 3.5 W
  • Warranty: 2 Years
  • What's Included: FD8134V, clamp core, screws, quick installation guide, alignment sticker, power adapter, RJ45 female, software CD, warranty card

Vivotek FD8134V Overview

The Vivotek FD8134V is a robust, vandal proof, fixed dome network camera that offers megapixel imaging day and night. Encased in an IP66 rated housing, the FD8134V can withstand the elements and abuse it may encounter in almost any indoor or outdoor installation. Despite its robust construction, the FD8134V is not unwieldy, but is compact in form, allowing it to remain unobtrusive in many installations. Adding to the vandal proofing measures, the Vivotek FD8134V also includes tamper detection. If there is an attempt to block, redirect, paint, or otherwise disable the camera, the FD8134V can take appropriate action, even sending you an alert email. Within its housing, the FD8134V provides a host of features that make it an ideal indoor or outdoor security solution. The 1 Megapixel 1/4" CMOS sensor can capture images at a resolution 1200x800 and stream video at up to 30fps. Depending on your network configuration and your viewing requirements, you can choose between H.264, MPEG-4, and MJPEG video compression. The FD8134V even allows you multiple streams in different formats and configurations. The FD8134V provides night vision capabilities, incorporating IR illuminators that can flood your surveillance area with invisible Infrared light at a distance of up to 10 meters. You can continue to monitor with clear, detailed black and white imaging even in complete darkness, without security threats even being aware that you have a clear view of them. The FD8134V makes use of a removable IR-cut filter. During daytime hours, naturally occurring ambient Infrared light can cause some night-vision cameras to produce incorrectly colored images. The IR-cut filter on the FD8134V engages in the daytime, ensuring that you have true color in daylight conditions. The FD8134 includes PoE support, providing convenient one-wire installation if need be. Vivotek's 3-axis mechanical design makes for simplified installation whether you choose wall or ceiling mount. An on-board MicroSD/SDHC card slot allows you to add a card for onboard storage, ensuring you don't lose surveillance footage even if your network suffers a temporary outage. All of these features, plus its robust vandal proofing make the Vivotek FD8134 a solid choice for your indoor or outdoor network camera surveillance needs, even in the most demanding of installations.
