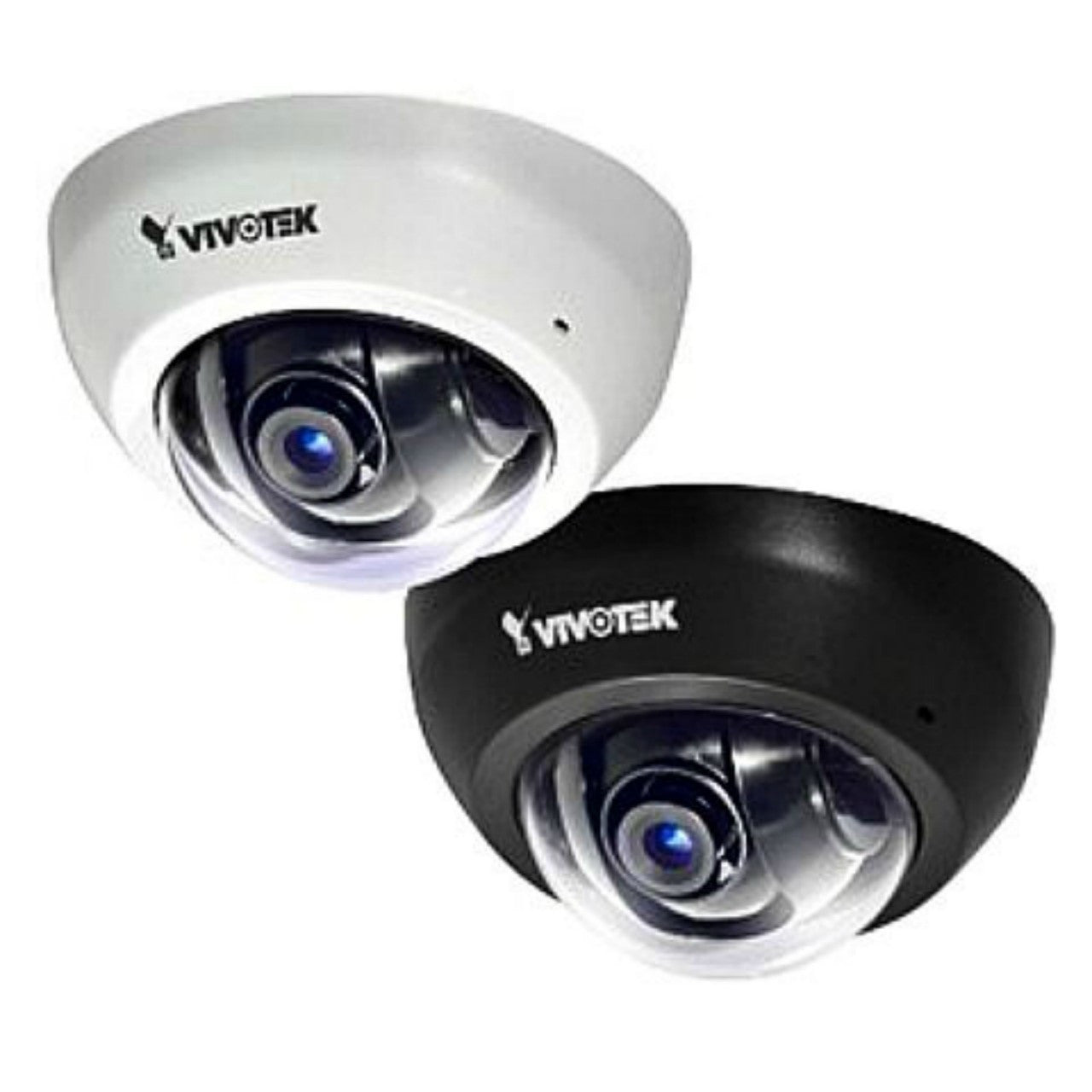

Vivotek FD8136 Ultra-Mini Dome Network Camera


Vivotek FD8136 Ultra-Mini Dome Network Camera

Sale price$199.00
SKU: FD8136

Discontinued; replaced by the FD8166A.

Vivotek FD8136 Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/4" progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.45 Lux @ F1.8, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f = 2.5 mm, F2.0 (FD8136-F2); f = 3.6 mm, F2.0 (FD8136-F3)
  • Zoom: ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
  • Iris: N/A
  • Focus: Manual
  • Field of View: FD8136-F2: 89.9° (horizontal), 62° (vertical), 101° (diagonal); FD8136-F3: 61° (horizontal), 38° (vertical), 73° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30 fps at 1280x800 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control Gain, BLC (Backlight compensation), Supports privacy masks
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5m
  • Audio Capabilities: One-way via built-in microphone
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP, NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, microSD/SDHC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 90 mm x 50 mm
  • Weight: 143 g
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
  • Operating Humidity: N/A
  • Power: 802.3af Power-over-Ethernet (Class 1), Max. 3.84 W
  • Warranty: 2 Years
  • What's Included: FD8136, focus adjustment tool, screws, quick installation guide, software CD, warranty card

Vivotek FD8136 Overview

VIVOTEK FD8136 is the world’s smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy. The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.
