Vivotek FD8137HV

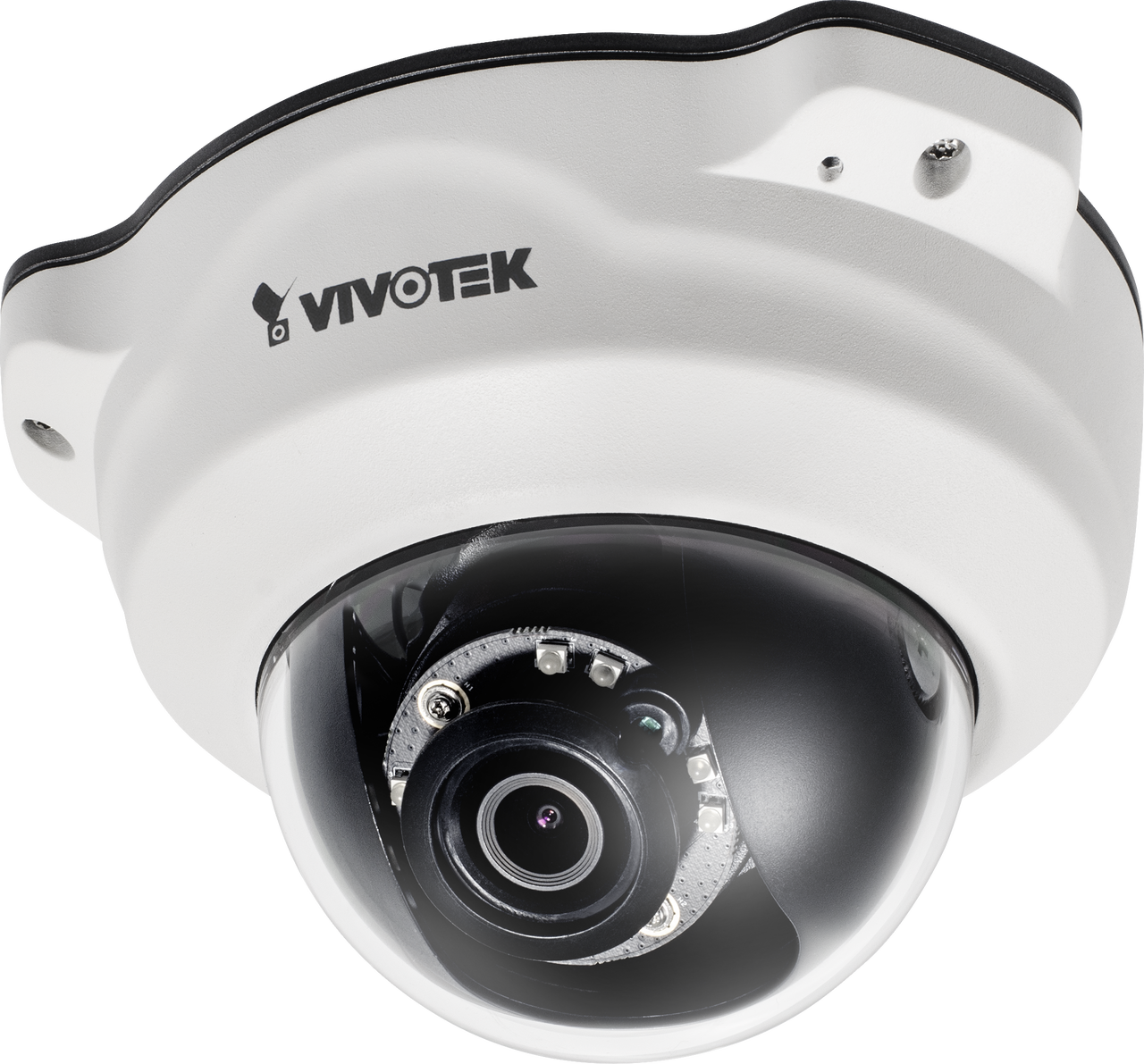

Vivotek FD8137HV Megapixel WDR Pro Dome Network Camera


Vivotek FD8137HV Megapixel WDR Pro Dome Network Camera

Sale price$255.00


Vivotek FD8137HV Features

  • Max Resolution: 1280x800 (1MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: FD8137HV-F3: 1.05 Lux @ F1.8 , 50 IRE (Color), 0.001 Lux @ F1.8, 50 IRE (B/W); FD8137HV-F6: 0.48 Lux @ F1.6, 50 IRE (Color), 0.001 Lux @ F1.6, 50 IRE (B/W)
  • IR Illuminators: Yes, Eight IR Illuminators
  • IR Illuminator Range: 15 meters
  • Lens Type: Fixed-focal
  • Focal Length: f = 3.6 mm (FD8137HV-F3) or f = 6 mm (FD8137HV-F6)
  • Zoom: 48x digital zoom ( 4x on IE plug-in,12x built-in )
  • Iris: N/A
  • Focus: Auto
  • Field of View: FD8137HV-F3 86° (Horizontal), 51° (Vertical), 103° (Diagonal) or FD8137HV-F6 59° (Horizontal), 32° (Vertical), 70° (Diagonal)
  • Compression Styles: H.264 & MPEG-4
  • Frame Rate: 30 fps @ 1280x800 In both compression modes
  • Image Settings: WDR Pro, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input
  • Alarm/Event Management: Triple-widow video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated housing
  • Dimensions: Ø: 152 mm x 94 mm
  • Weight: Net: 666 g
  • Operating Temperature: 20°C ~ 50°C (-4°F~ 122°F)
  • Operating Humidity: 90% RH
  • Power: IEEE 802.3af PoE Class 2, Max. 5.1 W
  • Warranty: 2 Years
  • What's Included: FD8137HV, Alignment Sticker, Quick Installation Guide, Screw Pack, Software CD, Warranty Card
Vivotek FD8137HV Overview
VIVOTEK FD8137HV is an easy-to-use fixed dome network camera specifically designed for indoor/outdoor security applications with a compact, stylish vandal-proof exterior. It features a HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR Pro Technology allows the camera to capture both dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8137HV to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. In order to adapt to constantly changing outdoor lighting conditions, the FD8137HV features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand rain and dust. Furthermore, the metal vandal-proof housing effectively provides robust protection from vandalism. The FD8137HV supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, and MJPEG compatibility both included, the dual streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8137HV is the ideal solution for your indoor/outdoor surveillance needs.
