Vivotek FD8138-H

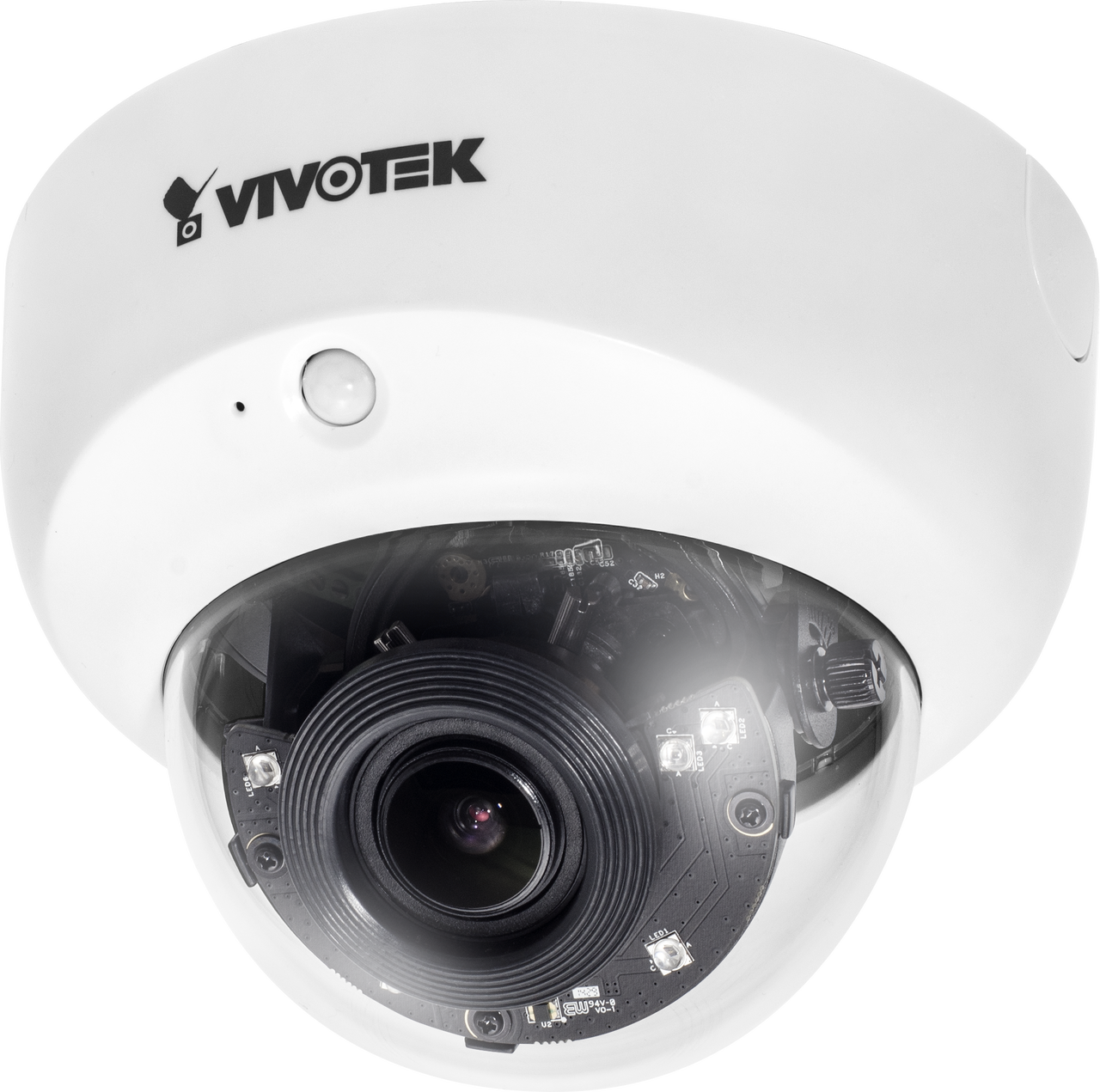

Vivotek FD8138-H 1MP Fixed Dome Network Camera

Vivotek

Vivotek FD8138-H 1MP Fixed Dome Network Camera

$307.00
Discontinued
SKU: FD8138-H

Discontinued - Recommended Replacement: FD816B-HT

Link to Manufacturer's Page

Contact

Discontinued; replaced by the FD816BA-HT.

Vivotek FD8138-H Features

  • Max Resolution: 1280x800
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.27 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
  • IR Illuminators: Yes, 6 IR LEDs
  • IR Illuminator Range: Effective up to 30 meters
  • Lens Type: Vari-focal, Manual Focus
  • Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
  • Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in, 12x built-in )
  • Iris: P-Iris
  • Focus: Manual Focus
  • Field of View: 33° ~ 87° (Horizontal), 21° ~ 54° (Vertical), 39° ~ 110° (Diagonal)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: H.264: 30 fps @ 1280x800 or MJPEG: 30 fps @ 1280x800
  • WDR Technology: Yes, WDR Pro
  • Image Settings: Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, seamless recording
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input/output (full duplex), External microphone input & Audio output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection ,audio detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 135 x 102 mm
  • Weight: Net: 512g
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: IEEE 802.3af PoE, PoE: Max. 9.7 W or DC 12V, DC 12V: Max. 9.96 W
  • Warranty: 3 Year
  • What's Included: FD8138-H Network Camera, Quick installation guide, warranty card, alignment sticker/ desiccant bag, waterproof connector, User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
Vivotek FD8138-H Overvew

The VIVOTEK FD8138-H is a stylish, fixed-dome network camera designed for diverse indoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the FD8138-H is an all-in-one indoor camera capable of capturing high quality footage at 720P resolution, even in high-contrast lighting environments. As well as providing remarkably high image quality, the FD8138-H is also equipped with VIVOTEK Smart Stream, and 3DNR to save substantial bandwidth for our users. To further enhance image quality, the FD8138-H also comes with a P-iris lens, which controls the iris with extreme precision via its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as superb image quality.
