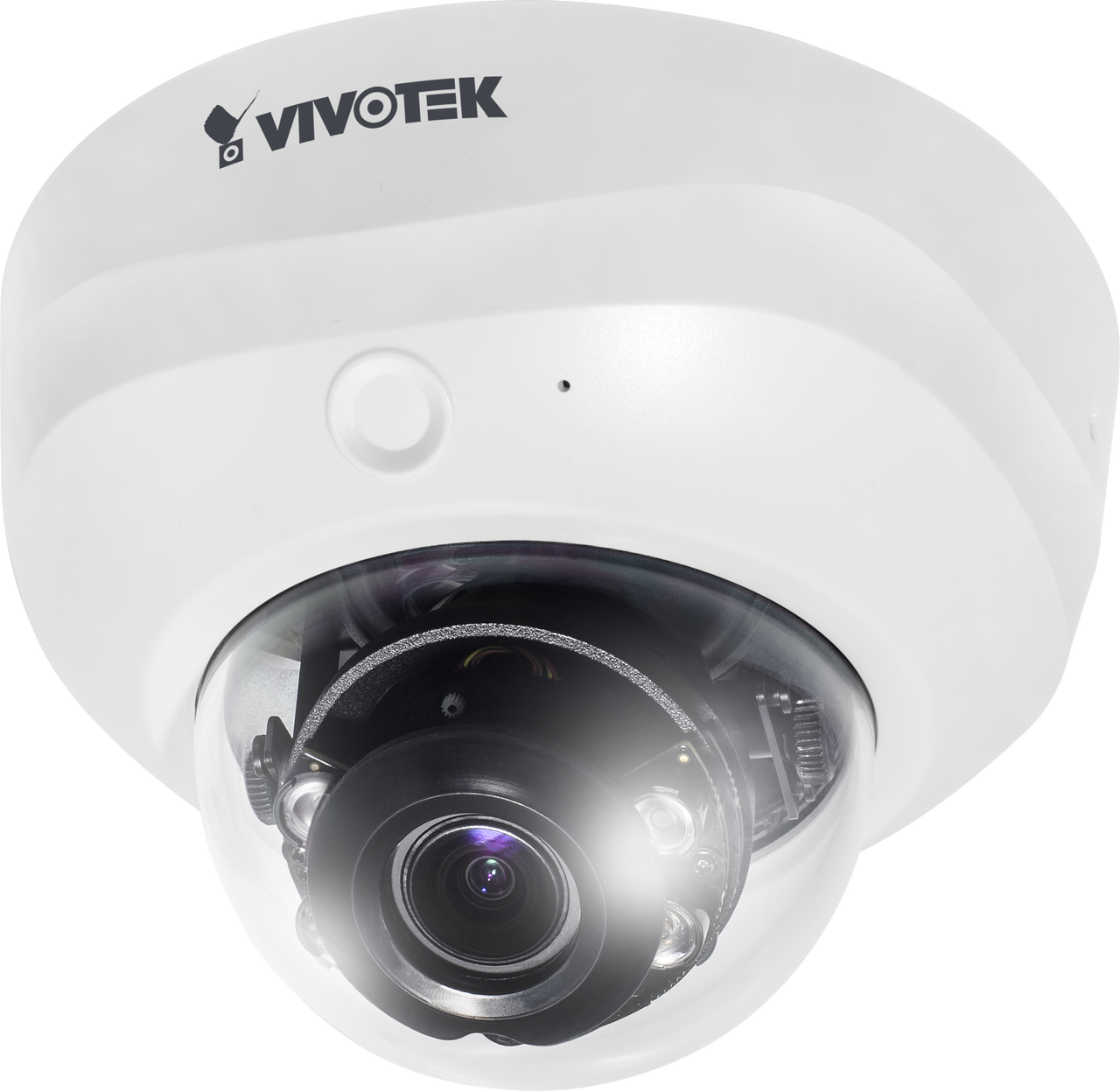

Vivotek FD8155H 1.3MP Smart Focus Dome Network Camera

Vivotek FD8155H Features

• Max Resolution: 1280x1024
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
• Minimum Illumination: 0.05 Lux @ F1.3 (Color) 0.001 Lux @ F1.3 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: 30 meters
• Lens Type: Vari-focal
• Focal Length: f = 3 ~ 10 mm / F1.3 ~ F2.5
• Zoom: ePTZ, 48x digital zoom
• Iris: P-iris/DC-iris (Reserved)
• Focus: Smart Focus System with Focus Assist OSD
• Field of View: 30° ~ 95° (Horizontal) 24° ~ 75° (Vertical) 39° ~ 123° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: up to 30 fps @ 1280x1024 or 60 fps @ 1280x1024 (One-stream mode only) in both compression modes
• WDR Technology: Yes, WDR Pro II
• Image Settings: Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, seamless recording
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via external microphone input and audio output
• Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection; Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: Ø: 157 mm x 109 mm
• Weight: 758 g (1.67 lbs)
• Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
• Operating Humidity: N/A
• Power: DC12V/AC24V, IEEE 802.3af PoE / DC 12V: Max. 8 W, AC 24V: Max. 8.8 W, PoE: Max. 10.6 W
• Warranty: 3 Years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker, L-type hex key wrench, screws, hex nut, AV cable, power cable, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD8155H Overview

VIVOTEK FD8155H is a professional indoor network dome camera offering up to 60 fps @ 1.3-Megapixel resolution with superb image quality. Featuring the new improved Wide Dynamic Range Technology WDR Pro II, this camera provides high visibility even in extremely dark and light environments with 4 shutter capture methods. Combined with 3D Noise Reduction Technology, which enables the FD8155H to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can enjoy superb image detail in all lighting conditions. Additionally, as a professional day/night camera, FD8155H adopts Smart IR technology which prevents overexposure and provides noise reduction by instantaneously adjusting IR lighting intensity to suit changes in ambient light. To provide top-notch image quality, the FD8155H also comes with a P-iris lens, which controls the iris with extreme precision via its built-in stepper motor. The iris opening is kept at an optimal level at all times, resulting in superior image sharpness and depth of field. Furthermore, because installation and adjustment of a megapixel network camera can be difficult due to the level of image detail, the FD8155H is equipped with VIVOTEK's Smart Focus System to allow remote focus and zoom adjustment.
