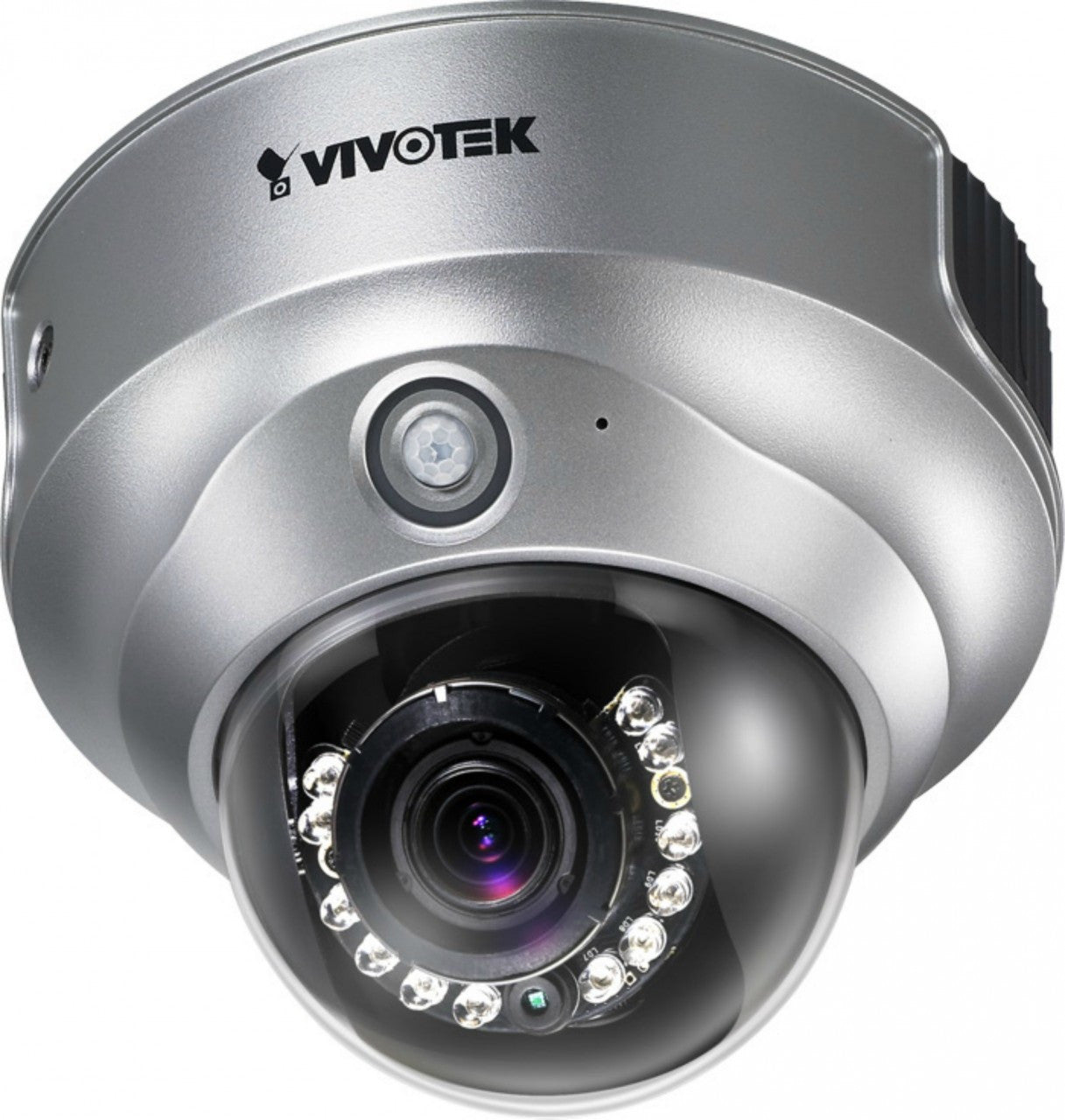

Vivotek FD8161 Day/Night 2MP H.264 Network Camera

Vivotek

Vivotek FD8161 Day/Night 2MP H.264 Network Camera

Sale price$425.00
Discontinued
SKU: FD8161

Discontinued.

Vivotek FD8161 Features

  • Max Resolution: 1600x1200
  • Image Sensor: 1/3.2" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR cut filter for day & night function
  • Minimum Illumination: 0.1 Lux @ F1.2 (color), 0.001 Lux @ F1.2 (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: 15 meters
  • Lens Type: Vari-focal Board Lens
  • Focal Length: f = 3~9, 1.2 (wide), 2.1 (tele)
  • Zoom: ePTZ
  • Iris: Auto
  • Focus: Focus Assist
  • Field of View: 31.7° ~ 93.0° (horizontal), 23.8° ~ 68.4° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation)
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, audio output, External/Internal Microphone Switch, Two-Way Audio, Audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection, PIR (Passive Infrared Sensor) for human detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 155mm x 116 mm
  • Weight: 697 g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: 90%
  • Power: 802.3af, Power-over-Ethernet (Class 1), 12V DC, Power consumption: Max. 6.5 W
  • Warranty: 2 Years
  • What's Included: FD8161, screwdriver, quick installation guide, power adapter, software CD, warranty card

Vivotek FD8161 Overview

The Vivotek FD8161 is a professional series H.264 2.0 megapixel indoor fixed dome IP network camera suitable for surveillance applications where high resolution video is required. The FD8161 is designed for installation in environments ranging from building entrance ways to airport lounges or terminals and can provide accurate identification of individuals, human faces or even license plate numbers. With the inclusion of a 2.0 megapixel image sensor the FD8161 provides wide area coverage with a field of view that is 6 times larger than that on a standard VGA IP camera. By providing such a wide field of view the FD8161 can help reduce the total number of cameras needed. With the inclusion of H.64 video compression technology the FD8161 can provide high quality video while requiring drastically reduced bandwidth compared to MPEG4 or MJPEG video compression at similar settings. Multiple video streams can also be configured for simultaneous viewing so that a dedicated high quality video feed can be configured for local monitoring or recording while still allowing for a reduced bandwidth video steam to be configured for remote or mobile viewing purposes. With the inclusion of 3GPP support the FD8161 will allow for a video stream to be viewed directly on a 3G cell phone or smart phone. The FD8161 comes equipped with a removable IR-cut filter and built-in infrared illuminators with a 15 meter range allowing for operation both during the day and at night or when no light is present within the viewing area. Additional features include a Passive Infrared (PIR) sensor, 3-axis mechanism providing flexible installation, Two-Way audio support, SD/SDHC card slot on-board storage and PoE support allowing for reduced installation cost by providing the ability to share power and video on the same Ethernet cable line. With the inclusion of free 32 channel network video monitoring and recording software the Vivotek FD8161 is a high level functioning IP network camera suitable for installation in any indoor environment.
