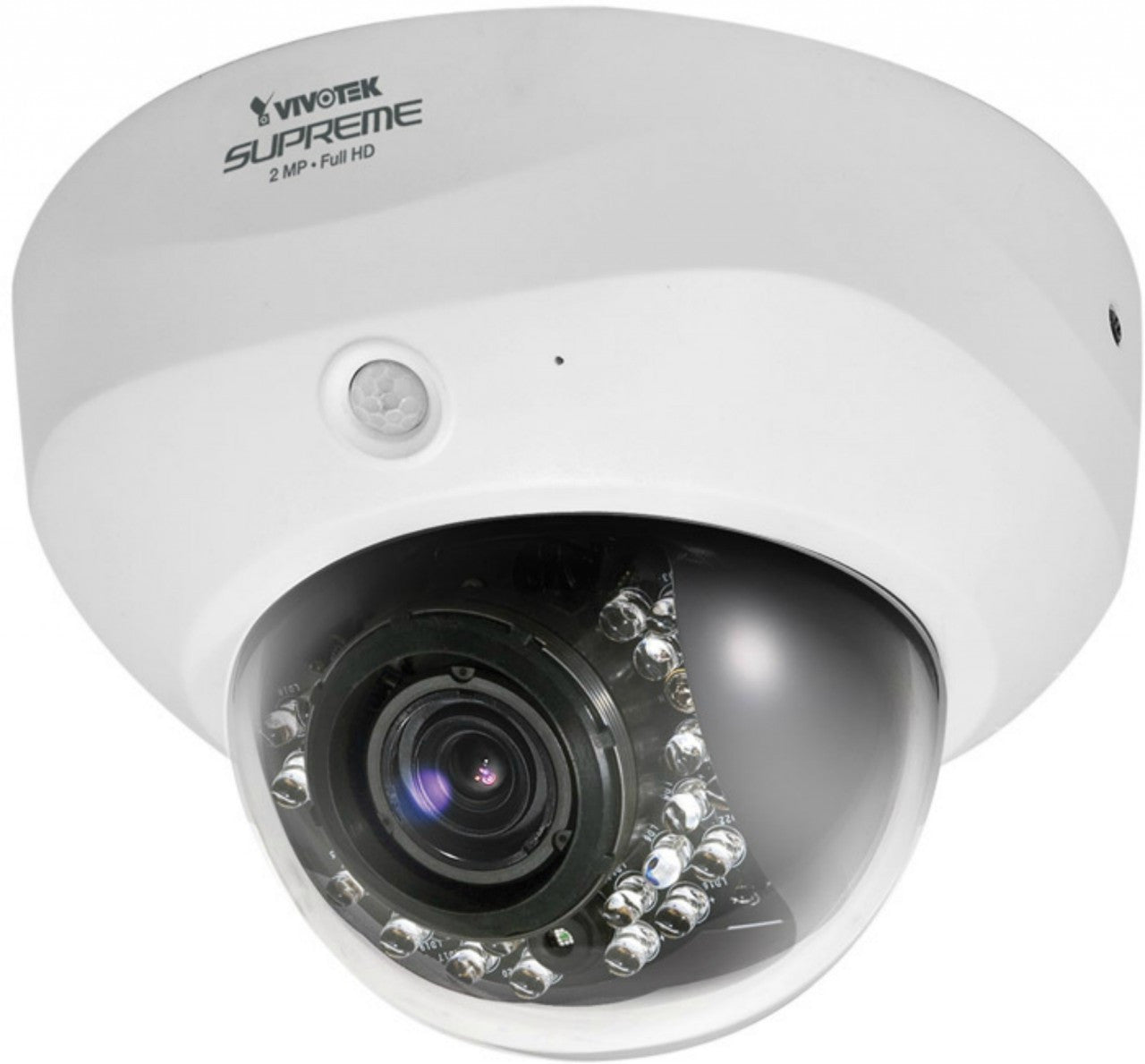

Vivotek FD8162 Front View
Vivotek FD8162 Internal View
Vivotek FD8162 What's Included
Vivotek FD8162 Banner
Network Camera Store is an Authorized Vivotek Reseller
Vivotek FD8162 Bottom View
Vivotek FD8162 with Cover Removed
Vivotek FD8162 with Cover Removed
Vivotek FD8162 with Cover Removed
Vivotek FD8162 PIR Feature
Vivotek FD8162 H.264 Feature
Vivotek FD8162 Micro SD/SDHC Card Slot
Vivotek FD8162 WDR Feature
Vivotek FD8162 Quick Installation
Vivotek FD8162 2MP WDR Enhanced Dome Network Camera

Vivotek

Vivotek FD8162 2MP WDR Enhanced Dome Network Camera

Sale price$455.00
Discontinued
SKU: FD8162

Vivotek FD8162 Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/2.7" progressive scan CMOS sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut Filter for Day & Night Function
  • Minimum Illumination: 0.08 Lux @ F1.2 ( typical ), 0.001 Lux @ F1.2 ( B/W )
  • IR Illuminators: Yes, 18 IR LEDs
  • IR Illuminator Range: 15 meters
  • Lens Type: Vari-focal Board Lens 1.2 (wide), 2.1 (tele)
  • Focal Length: f = 3~9
  • Zoom: ePTZ
  • Iris: Auto
  • Focus: Focus Assist, Built-in Focus Assist Button for Precise Focus Adjustment
  • Field of View: 31.7° ~ 93.0° (horizontal), 23.8° ~ 68.4° (vertical), 39.6° ~ 118.9° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1920x1080 in all Compression Styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, WDR enhanced, Automatic, manual or scheduled day/night mode, BLC (Backlight Compensation), Supports privacy masks
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: External microphone input, Audio Output, External/Internal Microphone Switch, Two-Way Audio, Supports Audio Mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection, PIR (Passive Infrared Sensor) for human detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 157mm x 110 mm
  • Weight: 765 g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: 90% RH
  • Power: 802.3af Power-over-Ethernet (Class 3), 12V DC, 24V AC Power consumption: Max. 5.3 W
  • Warranty: 3 Years
  • What's Included: FD8162, Screws, Quick Installation Guide, Alignment Sticker, Power Adapter, Software CD, Warranty Card

Vivotek FD8162 Overview

VIVOTEK FD8162 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8162 features a removable IR-cut filter, maintaining clear images 24 hours a day. With WDR enhancement, users can identify image details in extremely bright or dark environments. It is especially suitable for monitoring wide open indoor environments such as building entrances, airports or applications requiring accurate identification. With high-performance H.264/MPEG-4/MJPEG compression technology, the FD8162 offers extra-smooth HD video quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. To resolve this, the FD8162 is equipped with a focus assist button to allow users to precisely adjust the camera focus. Furthermore, the unique design of the four-step mount facilitates easy usage of the FD8162, offering more flexible, hassle-free installation and maintenance. Together with a PIR sensor for thermal detection, 802.3af Compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, video cropping and e-PTZ functionality, the FD8162 is indisputably the top choice for reliable and high performance surveillance.
