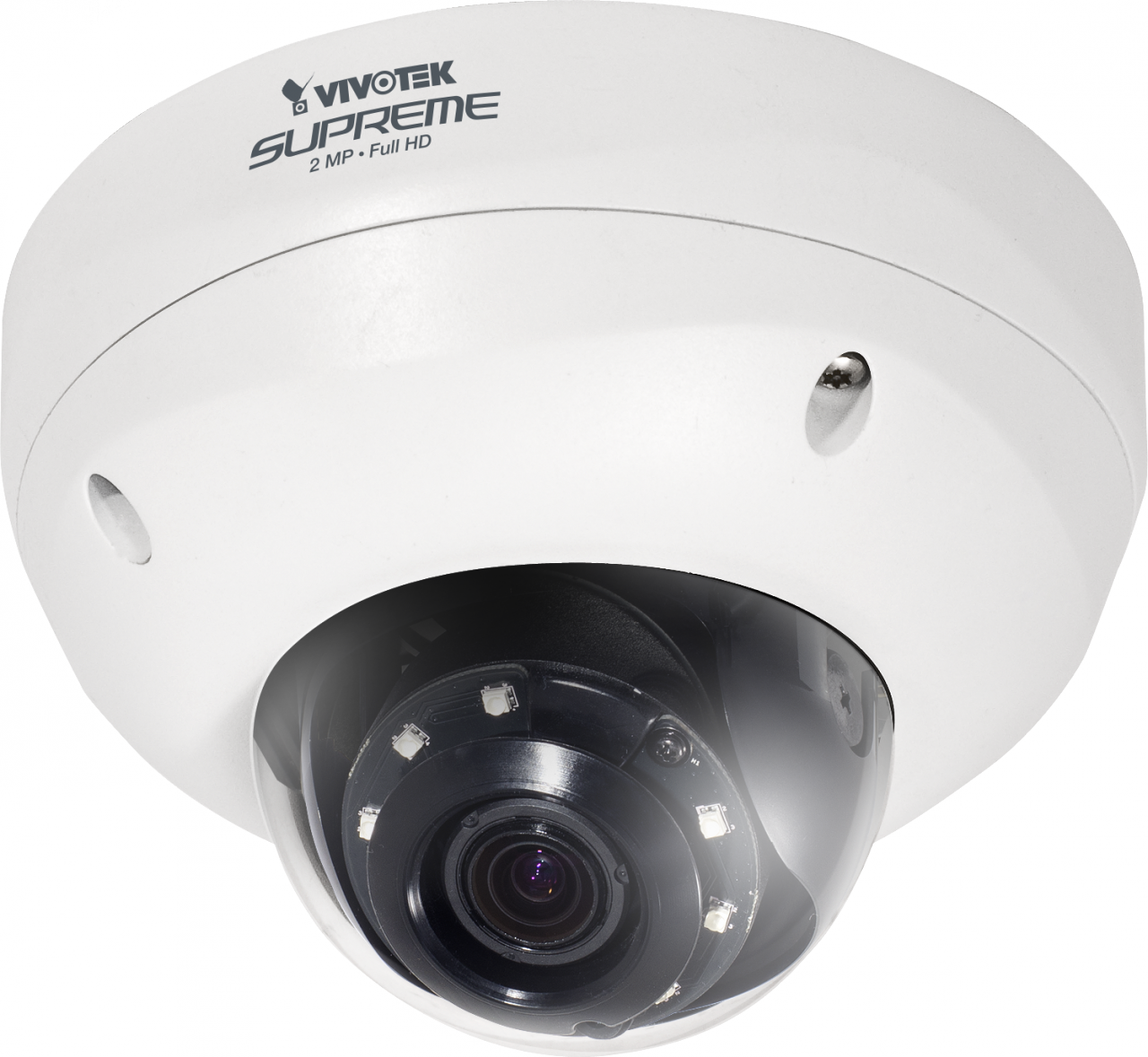

Vivotek FD8163 Front View
Vivotek FD8163 Rear View
Vivotek FD8163 Banner
Vivotek FD8163 Without Shell
Network Camera Store is an Authorized Vivotek Reseller
Vivotek FD8163 Full HD 1080p Feature
Vivotek FD8163 H.264 Feature
Vivotek FD8163 MicroSD/SDHC/SDXC card slot
Vivotek FD8163 PIR Sensor
Vivotek FD8163 WDR Enhanced Feature
Vivotek FD8163 Tamper Detection
Vivotek FD8163 Full HD Fixed Dome Network Camera

Vivotek

Vivotek FD8163 Full HD Fixed Dome Network Camera

Sale price$500.00
Discontinued
SKU: FD8163

Discontinued, replaced by the FD8167-T.

Vivotek FD8163 Features

  • Max Resolution: 1920x1080
  • Image Sensor: 1/2.7" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.08 Lux @ F1.2, 50 IRE (color); 0.001 Lux @ F1.2, 50 IRE (B/W)
  • IR Illuminators: Yes, 8 Built in IR LEDs
  • IR Illuminator Range: Up to 15 meters
  • Lens Type: Vari-focal
  • Focal Length: f = 3 ~ 9
  • Zoom: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: DC-iris
  • Focus: Smart Focus System including Easy Focus Button and Remote Focus
  • Field of View: 38° ~ 104° (horizontal), 22° ~ 71° (vertical), 43° ~ 111° (diagonal)
  • Compression Styles: H.264, MJPEG & MPEG-4
  • Frame Rate: 30 fps at 1920x1080 in all resolutions & compressions
  • Image Settings: Adjustable image size, quality, and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Audio input / Audio output (Full duplex), External microphone input, External line output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection PIR: Event notification using HTTP, SMTP, FTP, NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection; IP address filtering; HTTPS encrypted data transmission; 802.1X port-based authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 157 mm x 110 mm
  • Weight: 840 g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: IEEE 802.3af PoE Class 3, 12V DC; 24V AC
  • Warranty: 3 Years
  • What's Included: FD8136 Network Camera, Quick installation guide, warranty card, alignment sticker, T10 torx screwdriver, screws, plastic anchors, AV cable, software CD

Vivotek FD8163 Overview

VIVOTEK FD8163 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8163 features a removable IR-cut filter and 15-meter smart IR illuminators, maintaining clear images 24 hours a day. It is especially suitable for monitoring wide open indoor areas such as a building lobby, train station, or applications requiring accurate identification. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System including Easy Focus Button and Remote Focus to make installation and adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. Furthermore, the unique design featuring four-step mounting also facilitates installation of the FD8163. Together with a PIR sensor for enhanced detection, WDR enhanced, 802.3af Compliant PoE, tamper detection, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8163 is indisputably the top choice for reliable and high performance surveillance.
