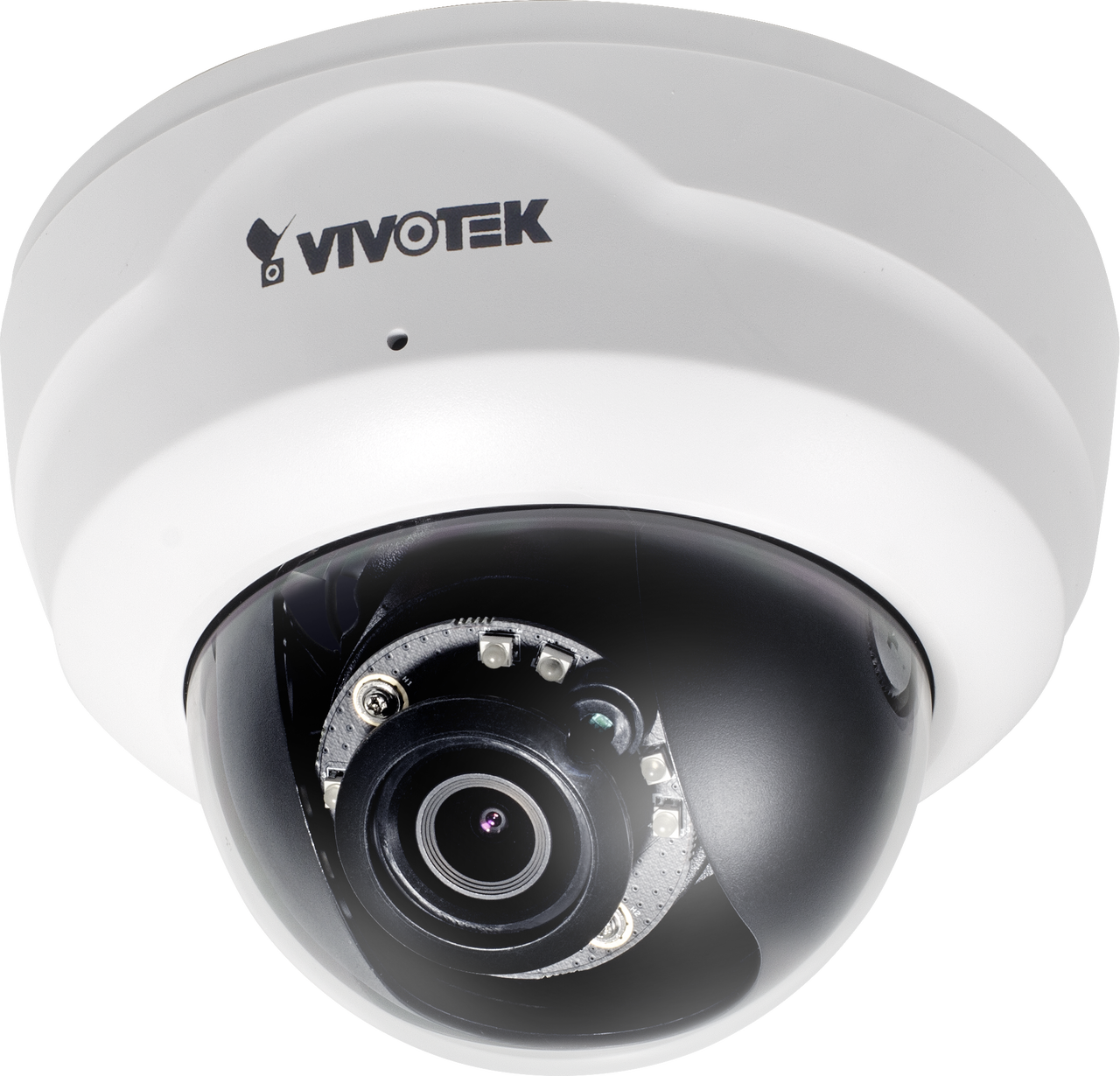

Vivotek FD8164 Indoor Dome Network Camera


Vivotek FD8164 Indoor Dome Network Camera

Sale price$285.00
SKU: FD8164


Vivotek FD8164 Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.7" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
  • Minimum Illumination: FD8164-F3: 0.28 Lux @ F1.8, 50 IRE (Color) 0.001 Lux @ F1.8, 50 IRE (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: Up to 15 m
  • Lens Type: Fixed-Focal
  • Focal Length: f = 3.6 mm / F1.8
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Manual
  • Field of View: FD8164-F3: 95° (Horizontal) 51° (Vertical) 112° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080 in both compression modes
  • WDR Technology: No
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5 m
  • Audio Capabilities: Listening via built-in microphone only
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 127 mm x 91 mm
  • Weight: 440 g (0.97 lb)
  • Operating Temperature: 0°C ~ 50°C (32°F~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: IEEE 802.3af PoE Class 2 / 5.1 W
  • Warranty: 2 Years
  • What's Included: FD8164, User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software, Quick installation guide, warranty card, alignment sticker, screw pack, software CD
  • Please Note: -F2 version was discontinued January 2016 and is no longer available.
Vivotek FD8164 Overview
VIVOTEK FD8164 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8164 is an all-in-one camera capable of capturing high quality and high resolution video up to 2 Megapixel. In order to adapt to constantly changing lighting conditions, the FD8164 features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. Featuring 3D Noise Reduction Technology, it enables the FD8164 to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. The FD8164 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, and MJPEG compatibility both included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8164 is the ideal solution for your indoor surveillance needs.
