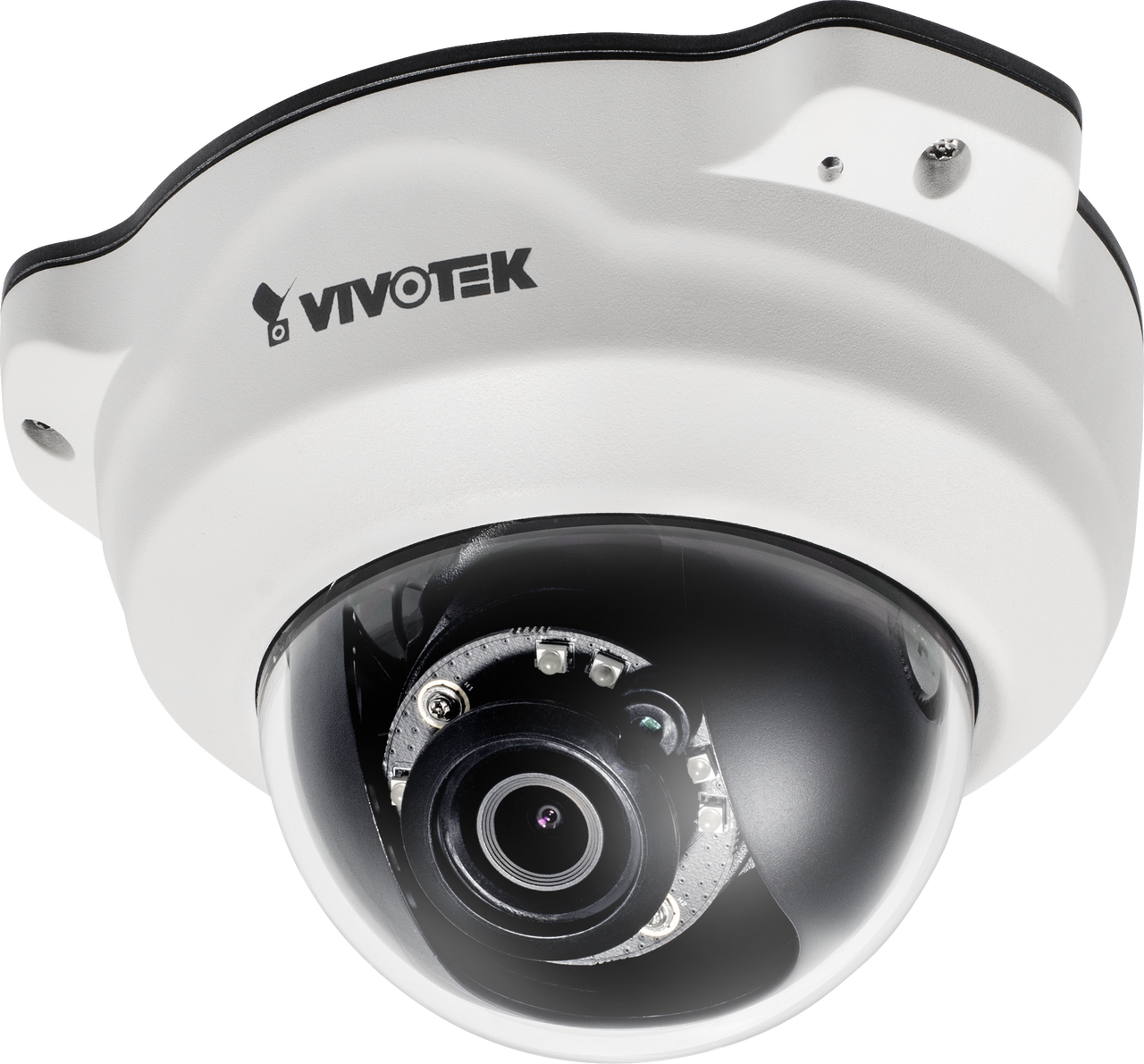

Vivotek FD8164V Vandal-Proof Dome Network Camera


Vivotek FD8164V Vandal-Proof Dome Network Camera

Sale price$345.00
SKU: FD8164V

Discontinued; replaced by the FD816B (-HVF2, -EHVF2, -HTV, -EHTV).

Vivotek FD8164V Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.7" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
  • Minimum Illumination: FD8164-F2: 0.33 Lux @ F2.0 , 50 IRE (Color), 0.001 Lux @ F2.0, 50 IRE (B/W); FD8164-F3: 0.28 Lux @ F1.8, 50 IRE (Color), 0.001 Lux @ F1.8, 50 IRE (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: Up to 15 m
  • Lens Type: Fixed-Focal
  • Focal Length: f = 2.8 mm / F2.0 (FD8164-F2); f = 3.6 mm / F1.8 (FD8164-F3)
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Manual
  • Field of View: FD8164-F2: 120° (Horizontal), 68° (Vertical), 141° (Diagonal); FD8164-F3: 95° (Horizontal), 51° (Vertical), 112° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080 in both compression modes
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5 m
  • Audio Capabilities: Listening via built-in microphone only
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in MicroSD/SDHC/SDXC Card Slot
  • Indoor/Outdoor: Indoor/Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing, Vandal-proof IK10-rated housing
  • Dimensions: Ø: 152 mm x 94 mm
  • Weight: 666 g (1.46 lb)
  • Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: IEEE 802.3af PoE Class 2 / 5.1 W
  • Warranty: 2 Years
  • What's Included: FD8164V, alignment sticker, quick installation guide, screw pack, software CD, warranty card
Vivotek FD8164V Overview
VIVOTEK FD8164V is an easy-to-use fixed dome network camera specifically designed for indoor/outdoor security applications with a compact, stylish vandal-proof exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8164V is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel. In order to adapt to constantly changing outdoor lighting conditions, the FD8164V features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand dust and rain. Furthermore, the metal vandal-proof housing effectively provides robust protection from vandalism. The FD8164V supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, and MJPEG compatibility both included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8164V is the ideal solution for your indoor/outdoor surveillance needs.
