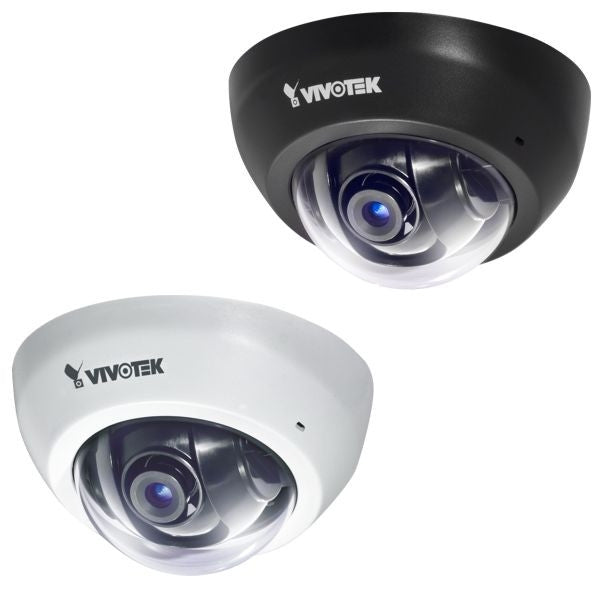

Vivotek FD8166 HD Ultra-mini Dome Network Camera


Vivotek FD8166 HD Ultra-mini Dome Network Camera

Sale price$240.00
SKU: FD8166


Discontinued; replaced by the FD8166A or FD8166A-N.

Vivotek FD8166 Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.7" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination:
    • FD8166-F2: 0.24 Lux, 50 IRE
    • FD8166-F3: 0.14 Lux, 50 IRE
    • FD8166-F6: 0.18 Lux, 50 IRE
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length:
    • FD8166-F2: f = 2.8 mm, F2.0
    • FD8166-F3: f = 3.6 mm, F1.8
    • FD8166-F6: f = 6 mm, F1.6
  • Zoom: N/A
  • Iris: N/A
  • Focus: Manual
  • Field of View:
    • FD8166-F2: 121° (horizontal); 68° (vertical); 142° (diagonal)
    • FD8166-F3: 98° (horizontal); 50° (vertical); 111° (diagonal)
    • FD8166-F6: 56° (horizontal); 31° (vertical); 64° (diagonal)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: 15 fps @ 1920x1080 in both compression styles
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5m
  • Audio Capabilities: One-way via built-in microphone
  • Alarm/Event Management: Triple-window video motion detection, Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 90 mm x 50 mm
  • Weight: 144g
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: Built-in IEEE 802.3af Compliant PoE (Class 1)
  • Warranty: 3 Years
  • What's Included: FD8166, focus adjustment tool, quick installation guide, software CD, warranty card, screws pack, focus kit

Vivotek FD8166 Overview

VIVOTEK FD8166 is the world’s smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy. The FD8166 features a 2-megapixel sensor enabling viewing resolution of 1920x1080 at 15 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. Designed with selectable focal lengths, FD8166 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8166 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8166 is the ideal solution for your surveillance needs.
