Vivotek FD8166A-F2-W
Vivotek FD8166A banner
Available in white or black
Vivotek FD8166A
Network Camera Store is an Authorized Vivotek Reseller
H.264 compression
Micro SD/SDHC /SDXC card slot
Tamper detection

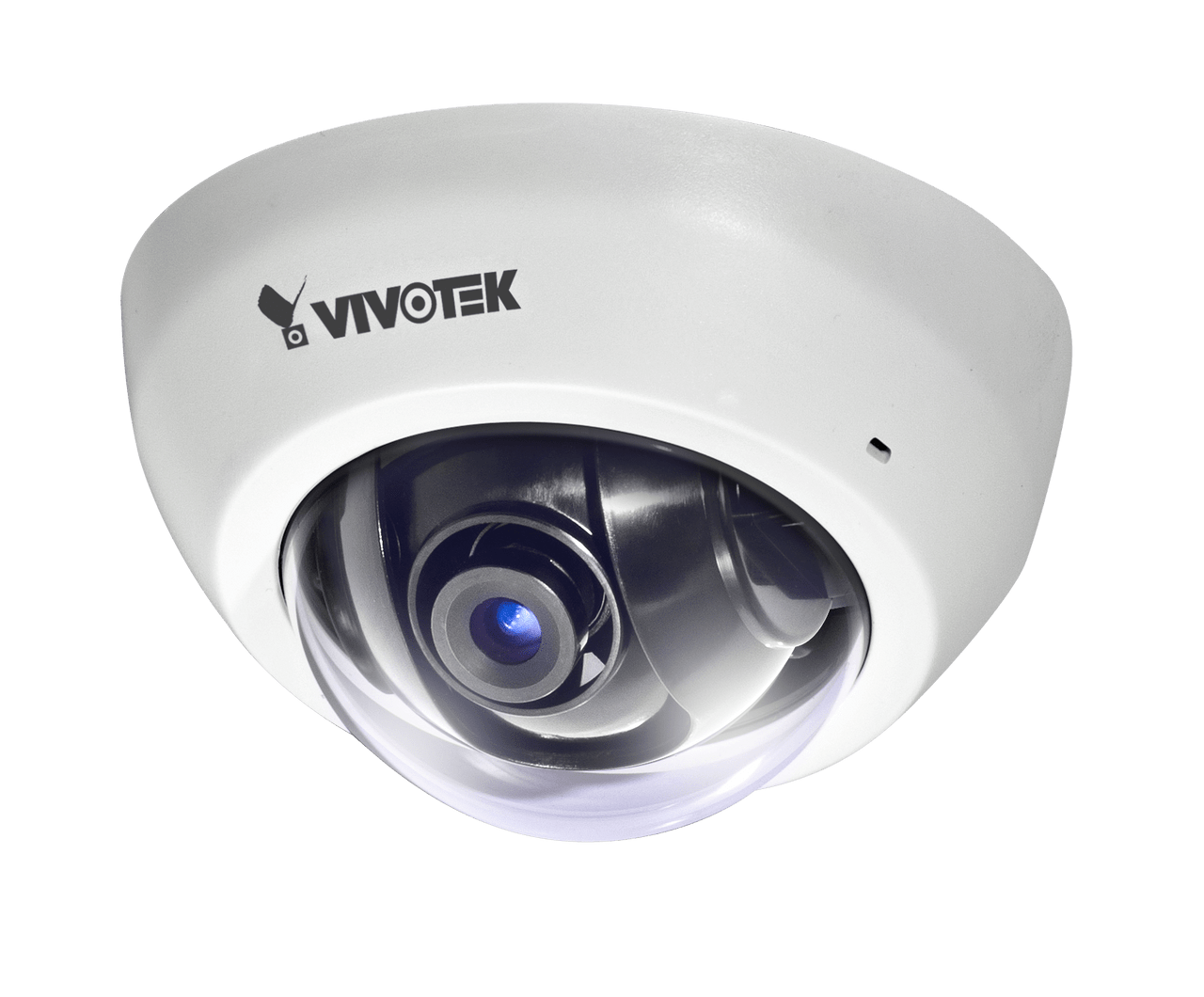

Vivotek FD8166A-F2-W 2MP Ultra-mini Dome Network Camera


Vivotek FD8166A-F2-W 2MP Ultra-mini Dome Network Camera

Sale price$191.25
SKU: FD8166A-F2-W



  • Please note: Available in a White housing (FD8166A-F2-W) and a Black housing (FD8166A-F2-B)
  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.05 Lux @ F1.8
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed
  • Focal Length: f=2.8mm / F1.8
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Manual
  • Field of View: 113° (Horizontal), 63° (Vertical), 136° (Diagonal)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: 30 fps @ 1920x1080 in both compression styles
  • Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5m
  • Audio Capabilities: One-way via built-in microphone
  • Alarm/Event Management: Triple-window video motion detection, Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Ø: 90 mm x 50 mm
  • Weight: 144g
  • Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F )
  • Operating Humidity: 90%
  • Power / Consumption: Built-in IEEE 802.3af Compliant PoE (Class 1) / 3W
  • Warranty: 3 Years
  • What's Included: Camera, focus kit, quick installation guide, software CD, warranty card, screws pack


VIVOTEK’s FD8166A is an ultra-mini fixed dome network camera with a tiny diameter of only 90 mm. Due to its compact and intelligent design and affordable price, the FD8166A is an ideal indoor surveillance solution that suits a wide variety of applications, such as retail, office, or boutiques, or to monitor elevators or other public areas. Equipped with a 2 megapixel Full HD sensor enabling viewing resolution of 1920x1080 at 30 fps, the FD8166A is capable of capturing high-definition images whether in high contrast or low light environments by deploying WDR and SNV technology. When combined with VIVOTEK’s Smart Stream II technology, the FD8166A can reduce both bandwidth and storage consumption by up to 50%* while retaining the same superb image quality as a Full HD camera. As an all-in-one camera, the FD8166A is designed for easy installation and equipped with Power over Ethernet (PoE) functionality, making setup both quick and simple. The FD8166A is also completely compatible with VIVOTEK's free 32-channel recording software. With all of these benefits and more, the FD8166A is a sure bet to fulfill your surveillance needs.
