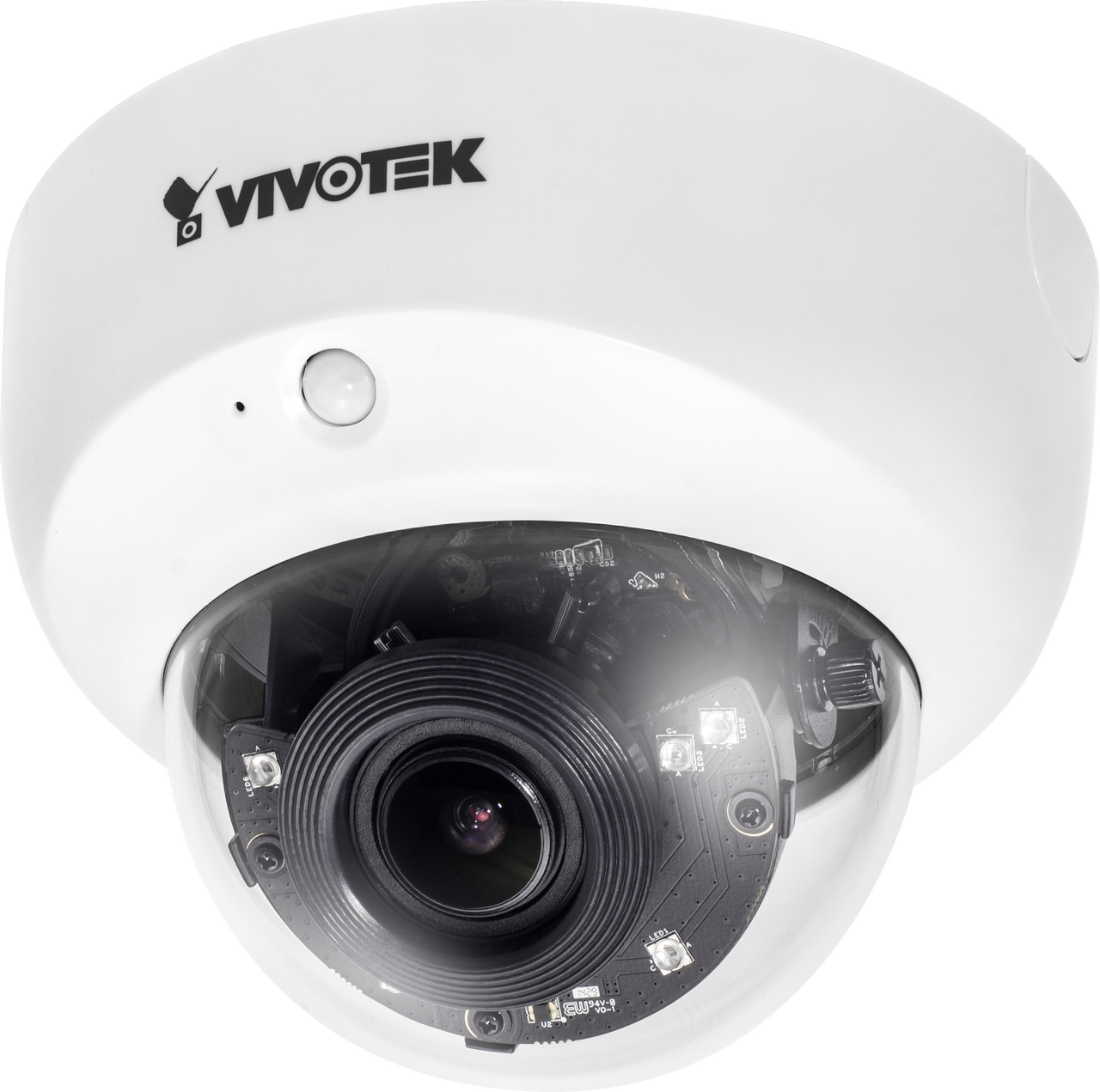

Vivotek FD8167 2MP IR Dome Network Camera

Discontinued; replaced by the FD8167A.

Vivotek FD8167 Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.06 Lux @ F1.8 (Color); 0.001 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Manual
• Field of View: 105° (Horizontal); 87° (Vertical); 135° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Supports two-way audio via built-in microphone and external line output
• Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card, File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø: 135 x 102 mm
• Weight: Net: 512 g
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V / 8.6W; IEEE 802.3af PoE Class 3 / 9.7W
• Warranty: 3 years
• What's Included: Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, CD (User's manual, quick installation guide, Installation Wizard 2, ST7501, 32-channel recording software)

Vivotek FD8167 Overview

VIVOTEK FD8167 is a stylish, indoor-style network camera designed for diverse indoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8167 is an all-in-one indoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. Providing such a polished image quality, FD8167 is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users. To emphasize the image quality, FD8167 also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality.
