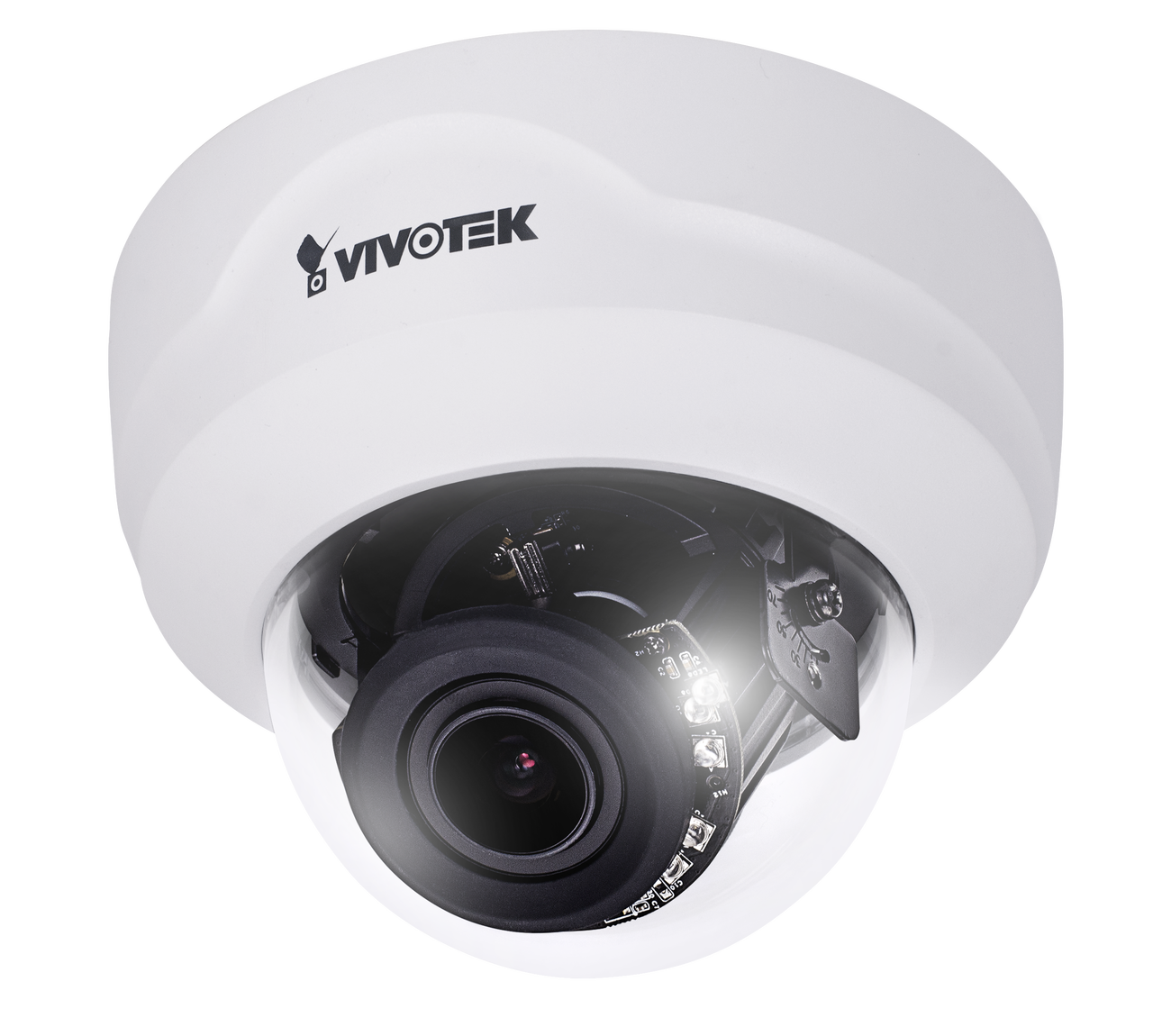

Vivotek FD8167A 2MP IR Varifocal Dome Network Camera

Features

• Available in a White housing (FD8167A) or a Black housing (FD8167A-B)
• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.9" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.05 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 20m
• Lens Type: Vari-focal, Manual
• Focal Length: f = 2.8 ~ 12 mm / F1.4 ~ F2.4
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: DC-iris
• Focus: Manual
• Field of View: 33.1°~96.6° (Horizontal), 18.9°~53.4° (Vertical), 35.3°~101.9° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate Smart Stream II, Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: Yes, 5m range
• Audio Capabilities: One-way mic only
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card, File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 129 mm x 94 mm
• Weight: Net: 416.4 g
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F )
• Operating Humidity: N/A
• Power/Consumption: IEEE 802.3af PoE Class 0 / Max. 8.5 W
• Warranty: 3 years
• What's Included: Quick installation guide, alignment sticker, screw pack, User's manual, quick installation guide, Installation Wizard 2, VAST 32-channel recording software

Overview

VIVOTEK FD8167A is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8167A is an all-in-one camera capable of capturing high quality and high resolution video up to 2 Megapixel even in low light environments.

The FD8167A features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for desired regions, and thus ensure maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

In order to adapt to constantly changing outdoor lighting conditions, the FD8167A features a removable IR-cut filter as well as IR illuminators effective up to 20M for superior image quality around the clock. Incorporating a number of advanced features standard for VIVOTEK cameras, including video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8167A is the ideal solution for your indoor surveillance needs.
