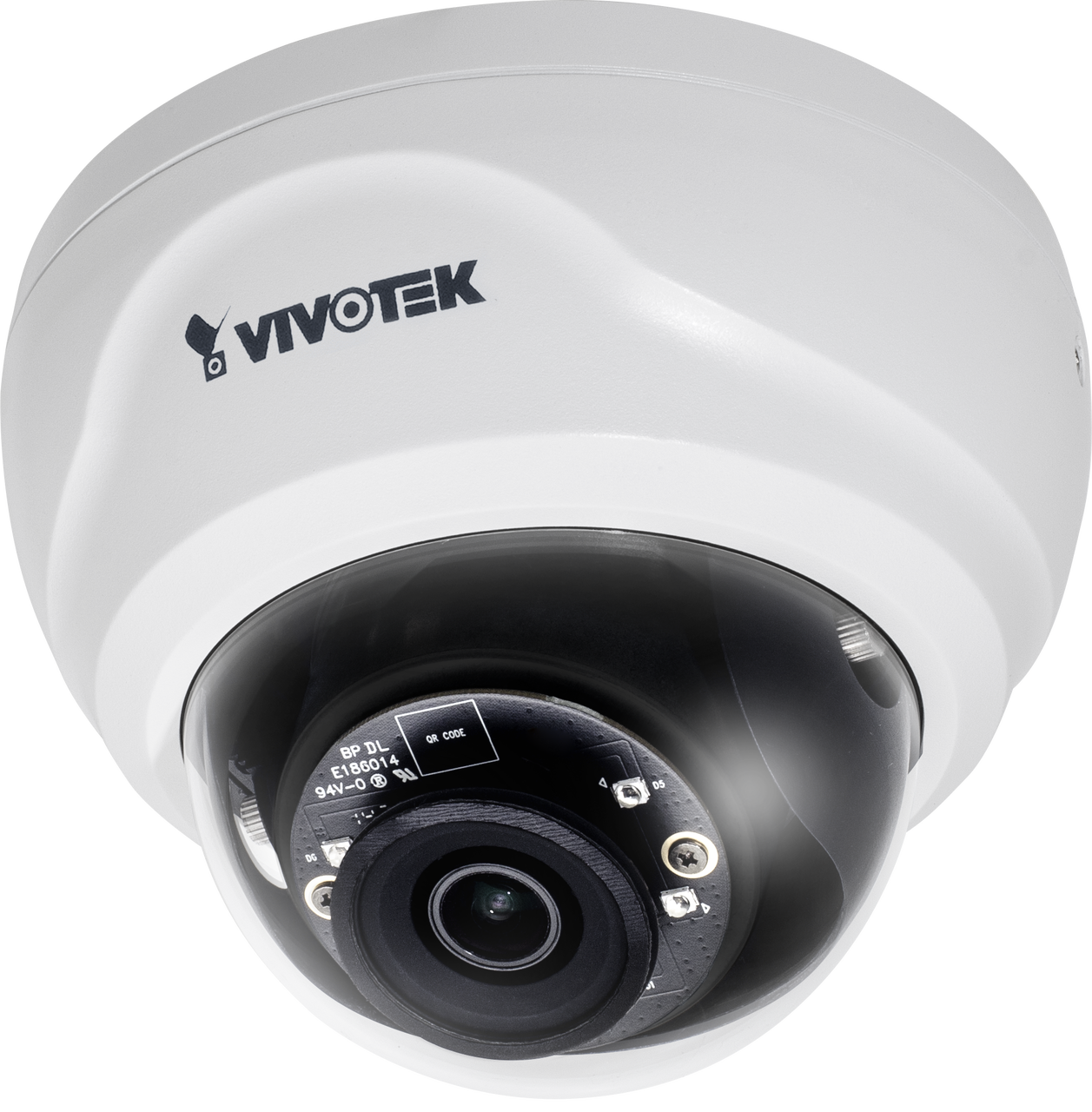

Vivotek FD8169 2MP IR Dome Network Camera

Discontinued, replaced by the FD8169A.

Vivotek FD8169 Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.7" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 1.22 Lux @ F2.0 (Color); 0.008 Lux @ F2.0 (B/W); 0 Lux @ IR LED ON
• IR Illuminators: Yes
• IR Illuminator Range: up to 20m
• Lens Type: Fixed-focal
• Focal Length: f = 2.8mm / F2.0
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: N/A
• Focus: Manual
• Field of View: 105° (Horizontal); 87° (Vertical); 135° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: No
• Image Settings: Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
• Privacy Mask: No
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø: 128 mm x 98 mm
• Weight: 435 g (.959 lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Operating Humidity: N/A
• Power: IEEE 802.3af PoE Class 3
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD8169 Overview

VIVOTEK FD8169 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8169 is an all-in-one camera capable of capturing high quality and high resolution video up to 2 Megapixel. In order to adapt to constantly changing lighting conditions, the FD8169 features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. Featuring 3D Noise Reduction Technology, it enables the FD8169 to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. The FD8169 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, and MJPEG compatibility both included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency. Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8169 is the ideal solution for your indoor surveillance needs.
