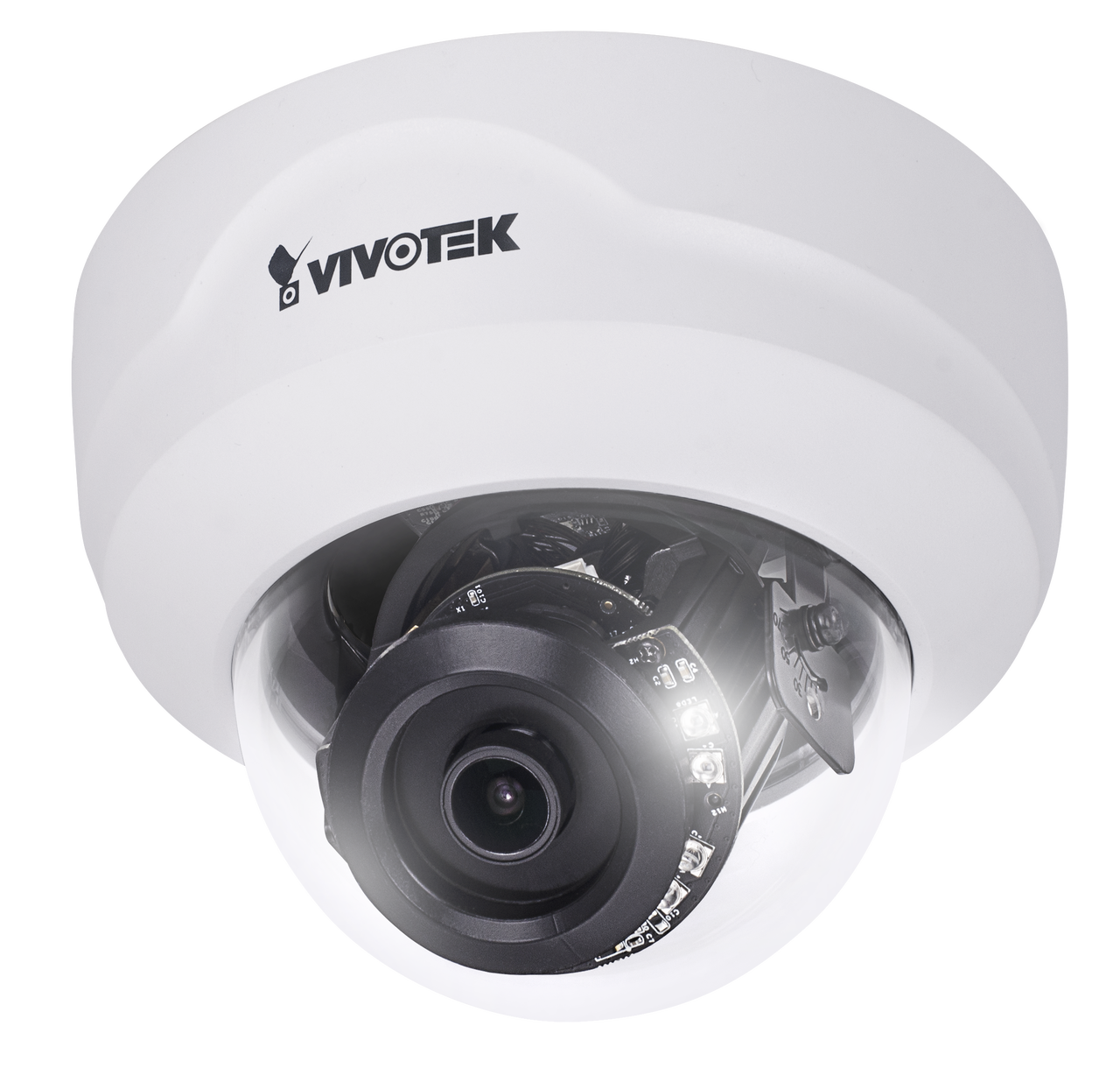

Vivotek FD8169A 2MP IR Dome Network Camera

Replaced by the FD9360-H

Features

• Available in a White housing (FD8169A) or a Black housing (FD8169A-B)
• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.9" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.06 Lux @ F1.8 (Color); 0.01 Lux @ F1.8 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m
• Lens Type: Fixed-focal
• Focal Length: f = 2.8mm / F1.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: N/A
• Focus: Manual
• Field of View: 105° (Horizontal), 60° (Vertical), 109° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate Smart Stream II, Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3D noise reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø: 129 mm x 94 mm
• Weight: Net: 416.4 g (.917 lb)
• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Operating Humidity: 90%
• Power/Cosumption: IEEE 802.3af PoE Class 0 / Max: 8.5 W
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, alignment sticker, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST 32-channel recording software)

Overview

VIVOTEK’s FD8169A is an easy-to-use fixed dome network camera specifically designed for indoor security applications, with a 2MP sensor enabling a viewing resolution of 1920x1080 at a smooth 30 fps. Dynamic and highly adaptable, the FD8169A is an all-in-one camera capable of capturing high quality video at high resolutions of up to 2 Megapixels.

The FD8169A features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for desired regions, and thus ensure maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

What's more, in order to adapt to constantly changing lighting conditions, the FD8169A features a removable IR-cut filter as well as IR illuminators effective up to 20M for superior image quality around the clock. Incorporating a number of advanced features standard for VIVOTEK cameras, including video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8169A is the ideal solution for your indoor surveillance needs.
