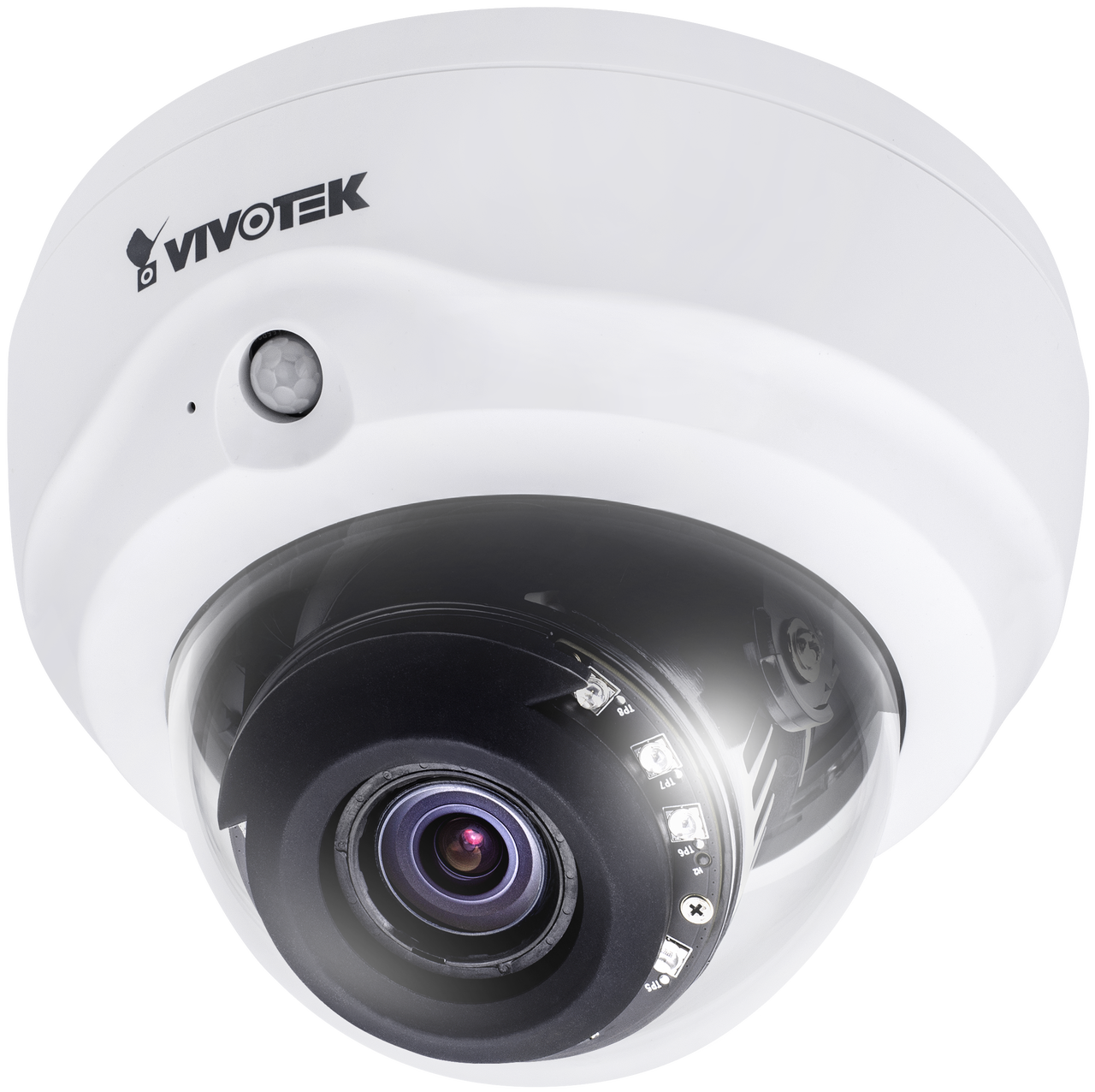

Vivotek FD816B-HT 2MP Vari-Focal Dome Network Camera

Discontinued; replaced by the FD816BA-HT.

Vivotek FD816B-HT Features

• Max Resolution: 1920x1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.03 Lux @ F1.8 (Color) 0.001 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote Focus
• Field of View: 42° ~ 105° (Horizontal); 24° ~ 57° (Vertical); 49° ~ 131° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Supports two-way audio via Built-in microphone, External line input, & External line output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 138 x 103 mm
• Weight: 541 g (1.19 lb)
• Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 11.5 W (DC 12V) or Max. 13 W (PoE)
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD816B-HT Overview

VIVOTEK's FD816B-HT is an indoor dome network camera equipped with a Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps. Representing a true all-in-one indoor camera, the FD816B-HT is capable of capturing high quality and high resolution video at up to 2 Megapixels whether in high contrast or in low light environments with WDR and SNV technology. Further increasing its flexibility, VIVOTEK's FD816B-HT provides remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of indoor applications, VIVOTEK's FD816B-HT is armed with a built-in PIR sensor to help detect unexpected events and provide security in real time. When selecting the VIVOTEK FD816B-H series, customers will be offered two options: the FD816B-HT, and the FD816B-HF2. Choosing the appropriate model will ensure any focusing requirements can be met.
