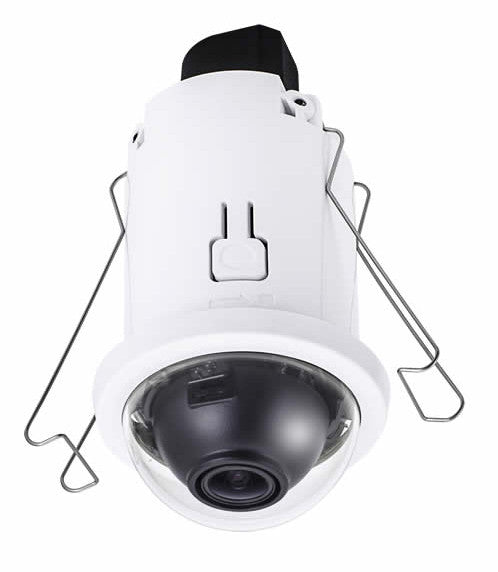

Vivotek FD816C-HF2 Recess Mount Dome Network Camera

Replaced by the FD816CA-HF2

Vivotek FD816C-HF2 Features

• Max Resolution: 1920x1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOSE
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.07 Lux @ F1.8 (Color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed
• Focal Length: f = 2.8 mm, F1.8
• Zoom: ePTZ: 4x digital zoom IE plug-in
• Iris: N/A
• Focus: Auto
• Field of View: 109° (horizontal) 61° (vertical) 132° (diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080
• WDR Technology: WDR Pro, 100dB
• Image Settings: 3D Digital Noise Reduction, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror, video rotation; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Listening via built-in microphone only
• Alarm/Event Management: 5-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection; Event notification using HTTP, SMTP, FTP and NAS server, SD Card , File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 60 x 115 mm
• Weight: 138 g
• Operating Temperature: -10°C ~ 40°C (14°F~ 104°F)
• Operating Humidity: N/A
• Power: IEEE 802.3af PoE Class 1, Max. 3.3W (DC 12V)
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, screws & anchors, alignment stickers


Vivotek FD816C-HF2 Overview

The VIVOTEK FD816C-HF2 is a recessed-mount fixed dome network camera offering up to 30 fps at 2-Megapixel resolution with superb image quality, even in the darkest hours of the night. Due to its compact size, the camera is able to blend into any surroundings such as banks, retail stores, restaurants, offices and more.Featuring the improved Wide Dynamic Range Technology, WDR Pro, the FD816C-HF2 provides superior visibility in high-contrast lighting environments with a 2-shutter capture method,and with SNV technology, it makes high-quality full-color surveillance video possible under low-ight conditions. At the other end of the spectrum, 3D Noise Reduction Technology allows users to enjoy an increased level of image detail in extremely dark environments without consuming or wasting unreasonably high bandwidth. To dramatically reduce file sizes and conserve valuable network bandwidth, the FD816C-HF2 supports industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat.
