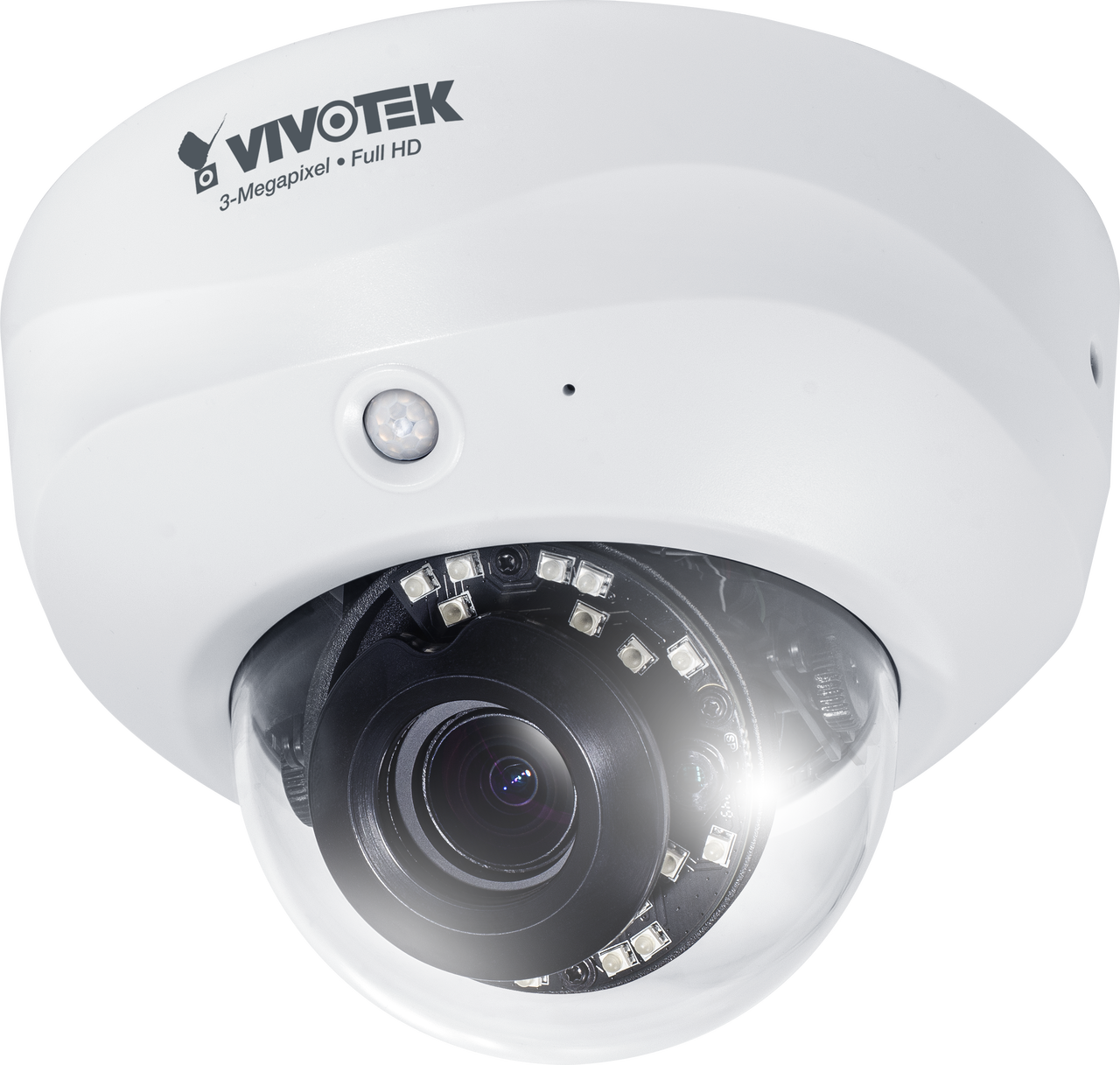

Vivotek FD8171 3MP Smart Focus System Fixed Dome Network Camera

Vivotek

Vivotek FD8171 3MP Smart Focus System Fixed Dome Network Camera

Sale price$637.00
Discontinued
SKU: FD8171

Contact

Discontinued; replaced by the FD9171-HT.

Vivotek FD8171 Features

  • Max Resolution: 2048x1536 (3MP)
  • Image Sensor: 1/2.8" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.33 Lux @ F1.3, 50 IRE (Color @1/30 sec), 0.05 Lux @ F1.3, 50 IRE (Color@1/5 sec), 0.001 Lux @ F1.3 50 IRE (B/W)
  • IR Illuminators: Yes, 15 IR LEDs
  • IR Illuminator Range: Effective up to 20 meters
  • Lens Type: Vari-focal, remote focus
  • Focal Length: f = 3 ~ 10 mm / F1.3 ~ 10 mm
  • Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in, 12x built-in )
  • Iris: P-iris/DC-iris (Reserved)
  • Focus: Smart Focus System allowing remote focus and zoom adjustment
  • Field of View: 31° ~ 91° (horizontal), 24° ~ 68° (vertical), 39° ~ 117° (diagonal)
  • Compression Styles: H.264, MJPEG & MPEG-4
  • Frame Rate: H.264: 30 fps at 2048x1536, 60 fps at 1920x1080; MPEG-4: 30 fps at 2048x1536, 50 fps at 1920x1080; MJPEG: 30 fps at 2048x1536, 60 fps at 1920x1080
  • WDR Technology: Yes, WDR Enhanced
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Smart stream
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input/output (full duplex), External microphone input & Audio output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection ,audio detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 173 mm x 115 mm
  • Weight: Net: 758 g (1.67 lbs)
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power: Max. 28W (DC 12V), Max. 34W (AC 24V), Max. 12.95W (IEEE 802.3af PoE Class 3)
  • Warranty: 2 Year
  • What's Included: FD8171 Network Camera, Alignment sticker, T20 Torx screwdriver / Screws / Plastic anchors / AV cable, Software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software), Quick Installation Guide
Vivotek FD8171 Overvew

Vivotek FD8171 is a professional indoor dome network camera offering 30 fps @ 3-Megapixel or 60 fps @ 1080p resolution with superb image quality. As a professional day/night camera, FD8171 adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of lights in the ambient environment. Featuring 3D Noise Reduction Technology, it enables the FD8171 to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. Combined WDR Enhanced technology, users can identify image details in extremely bright as well as dark environments. In addition, FD8171 implements Smart Stream Technology, which allows users to set region of interests (ROIs) for improved clarity without raising the bitrate so as to optimize storage and bandwidth efficiency. To provide top-notch image quality, FD8171 also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, FD8171 is also designed with VIVOTEK’ s Smart Focus System to make installation and adjustment easier by allowing remote focus and zoom adjustment.
