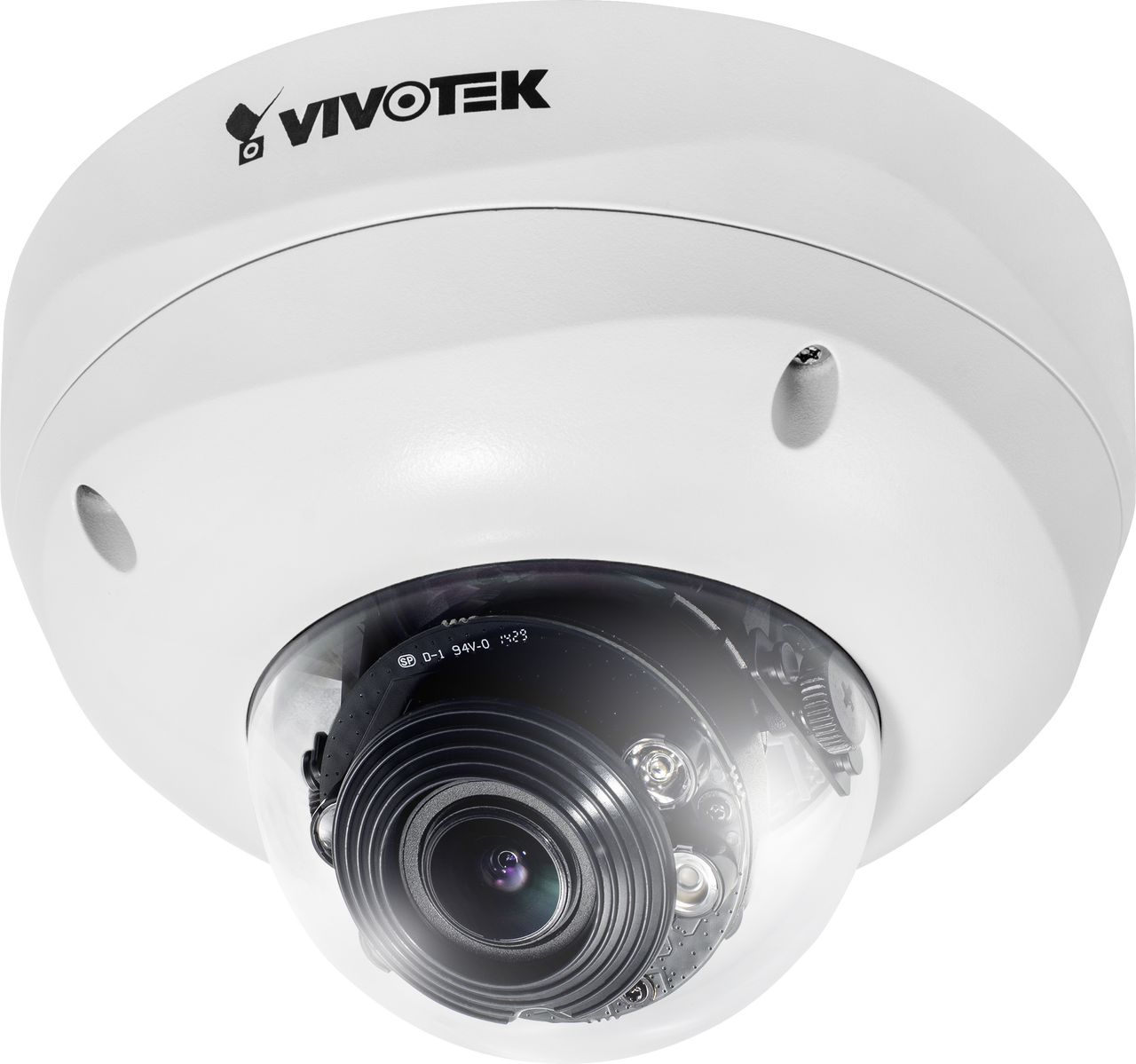

Vivotek FD8173-H 3MP IR/PIR Smart Focus Fixed Dome Network Camera


Vivotek FD8173-H 3MP IR/PIR Smart Focus Fixed Dome Network Camera

Sale price$573.00
SKU: FD8173-H


Discontinued; replaced by the FD9171-HT.

Vivotek FD8173-H Features

  • Max Resolution: 2048x1536 (3MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.33 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
  • IR Illuminators: Yes, with Smart IR Technology
  • IR Illuminator Range: Effective up to 20 meters
  • Lens Type: Vari-focal, remote focus
  • Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
  • Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in, 12x built-in )
  • Iris: P-iris
  • Focus: Smart Focus System allowing remote focus and zoom adjustment
  • Field of View: 29.7° ~ 82.6° (Horizontal), 22.4° ~ 61.9° (Vertical), 37.6° ~ 108.7° (Diagonal)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: H.264: 20 fps @ 2048x1536, 30 fps @ 1920x1080; MJPEG: 20 fps @ 2048x1536, 30 fps @ 1920x1080
  • WDR Technology: Yes, WDR Pro (100dB)
  • Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Smart Stream, Seamless recording, new text on video, SD recording 1HR
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input/output (full duplex), Internal microphone input & External audio output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø: 173 mm x 115 mm
  • Weight: Net: 758 g (1.67 lbs)
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: DC 12V / 11W, AC 24V / 12.5W, IEEE 802.3af PoE Class 3 / 11W
  • Warranty: 3 Years
  • What's Included: Camera, Quick Install guide, A/V Cable, Alignment Sticker, Screws & Screwdriver, Software CD
Vivotek FD8173-H Overvew

VIVOTEK's FD8173-H network camera features a 3-Megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR Pro feature allows the camera to capture both the dark and bright areas of an image and combine the differences to generate a highly realistic representation of the original scene. This feature enables the camera to provide video quality very close to the capabilities of the human eye. The FD8173-H can be deployed widely in high contrast environments such as lobby entrances, hotel alleys and more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field.
