Vivotek FD8177-H-B
Vivotek FD8177-H
Network Camera Store is an Authorized Vivotek Reseller

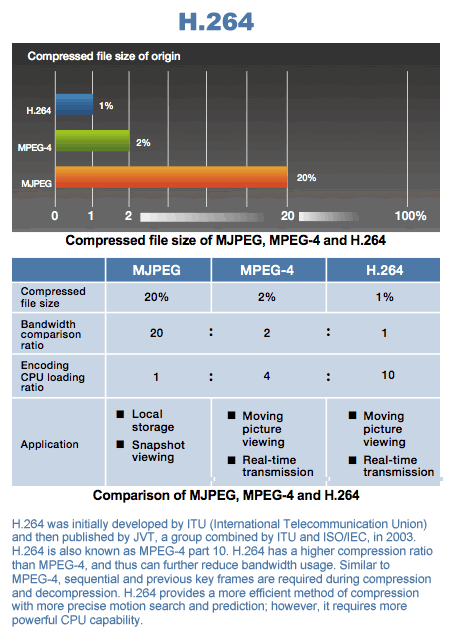

H.264 compression

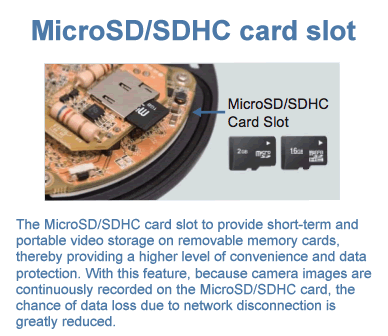

MicroSD/SDHC/SDXC card slot

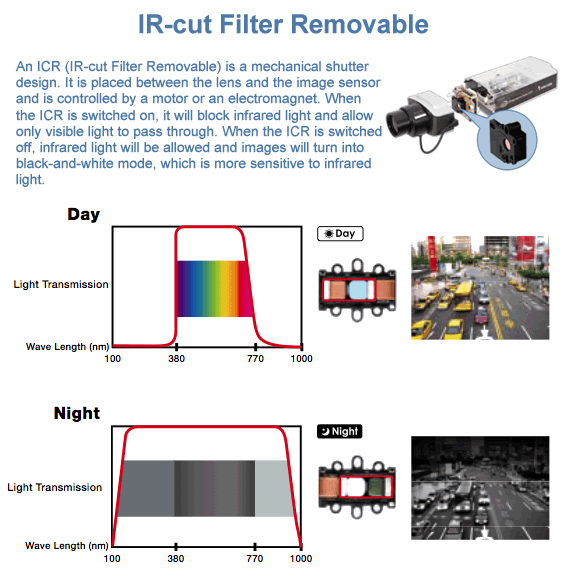

Removable IR-cut filter

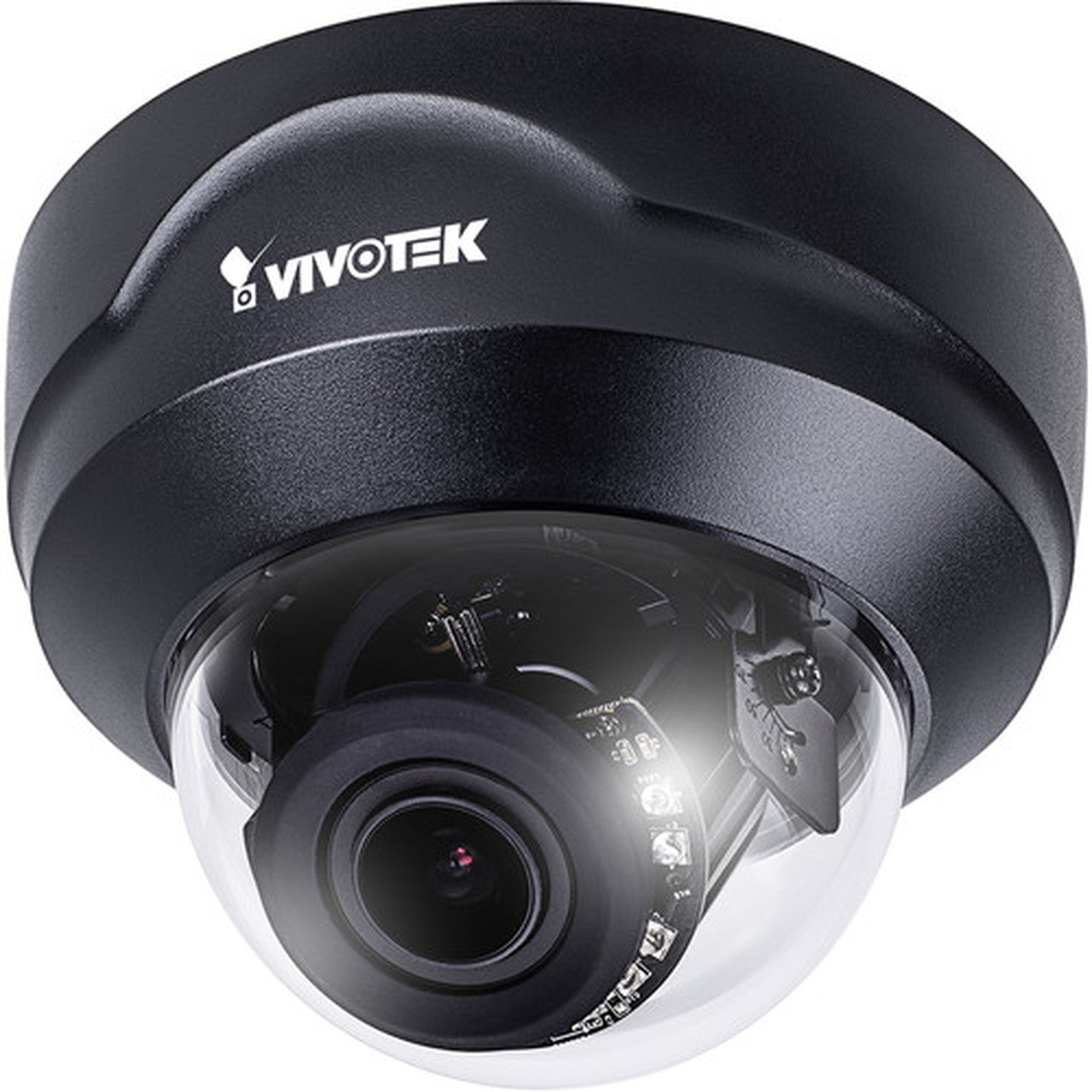

Vivotek FD8177-H-B 4MP Vari-Focal Indoor Dome Network Camera (Black)

Vivotek

Vivotek FD8177-H-B 4MP Vari-Focal Indoor Dome Network Camera (Black)

$0.00
Discontinued
Housing Color:Default Title
Link to Manufacturer's Page

Contact

Replaced by the IT9389-HT-B

Features

  • Available in a White housing (FD8177-H) or a Black housing (FD8177-H-B)
  • Max Resolution: 2688x1520 (4MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W)
  • IR Illuminators: Yes, with Smart IR
  • IR Illuminator Range: up to 30m
  • Lens Type: Vari-focal
  • Focal Length: f = 2.8 ~ 12mm / F1.4 ~ F2.2
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: DC auto iris
  • Focus: Manual
  • Field of View: 33° ~ 105° (H); 18° ~ 54° (V); 38° ~ 125° (D)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 2688x1520 (without WDR Pro); 24 fps @ 2560x1440
  • WDR Technology: WDR Pro (110 dB)
  • Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, 5m range
  • Audio Capabilities: Listening via built-in mic only
  • Alarm/Event Management: Five-window motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Ø 129 x 94 mm
  • Weight: 417 g (.91 lb)
  • Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: IEEE 802.3af PoE Class 0 / Max. 10 W
  • Warranty: 2 years
  • What's Included: Camera, Quick installation guide, alignment sticker, screw pack

Vivotek FD8177-H Overview

VIVOTEK FD8177-H is a stylish-design 4-Megapixel IR fixed dome camera for indoor applications. Equipped with a 4MP sensor, the camera offers up to 30 fps at 2688x1520 with superb image quality. Featuring the WDR Pro technology and a 2.8 ~ 12 mm vari-focal lens, the FD8177-H provides clear and accurate video under high contrast environments

With VIVOTEK's sophisticated Smart Stream II technology, the FD8177-H do optimize image quality for desired regions, and thus ensure maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

As an all-in-one day/night camera, the FD8177-H features a removable IR-cut filter as well as IR illuminators effective up to 30 meters for superior image quality even in challenging lighting conditions. Incorporating a number of features such as video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8177-H is well-design for any interior usage.
