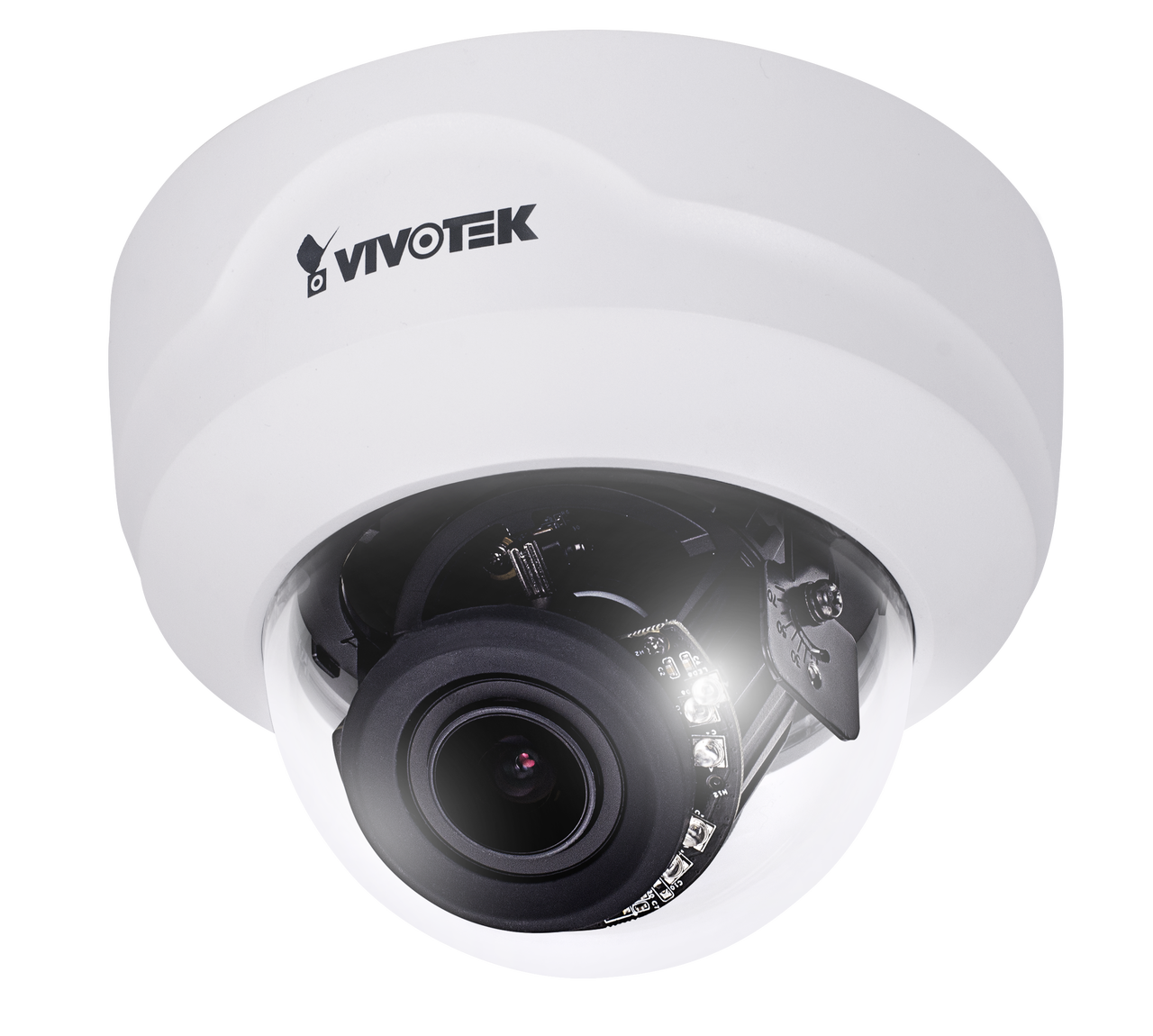

Vivotek FD8177-HT 4MP Vari-Focal Indoor Dome Network Camera

Discontinued Recommended Replacement:

FD9189-HT

Vivotek FD8177-HT Features

• Max Resolution: 2688x1520 (4MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12mm / F1.4 ~ F2.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: DC auto iris
• Focus: Remote Focus
• Field of View: 32° ~ 93° (H), 18° ~ 50° (V)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 2688x1520 (without WDR Pro); 24 fps @ 2560x1440
• WDR Technology: WDR Pro (supports up to 3.6MP)
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: Yes, 5m range
• Audio Capabilities: Two-way Audio, Built-in Microphone, External line input, External line output
• Alarm/Event Management: Five-window motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 139 x 103 mm
• Weight: 417 g (.91 lb)
• Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V, PoE / Max. 11 W
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, alignment sticker, screw pack

Vivotek FD8177-HT Overview

More information will be available soon.
