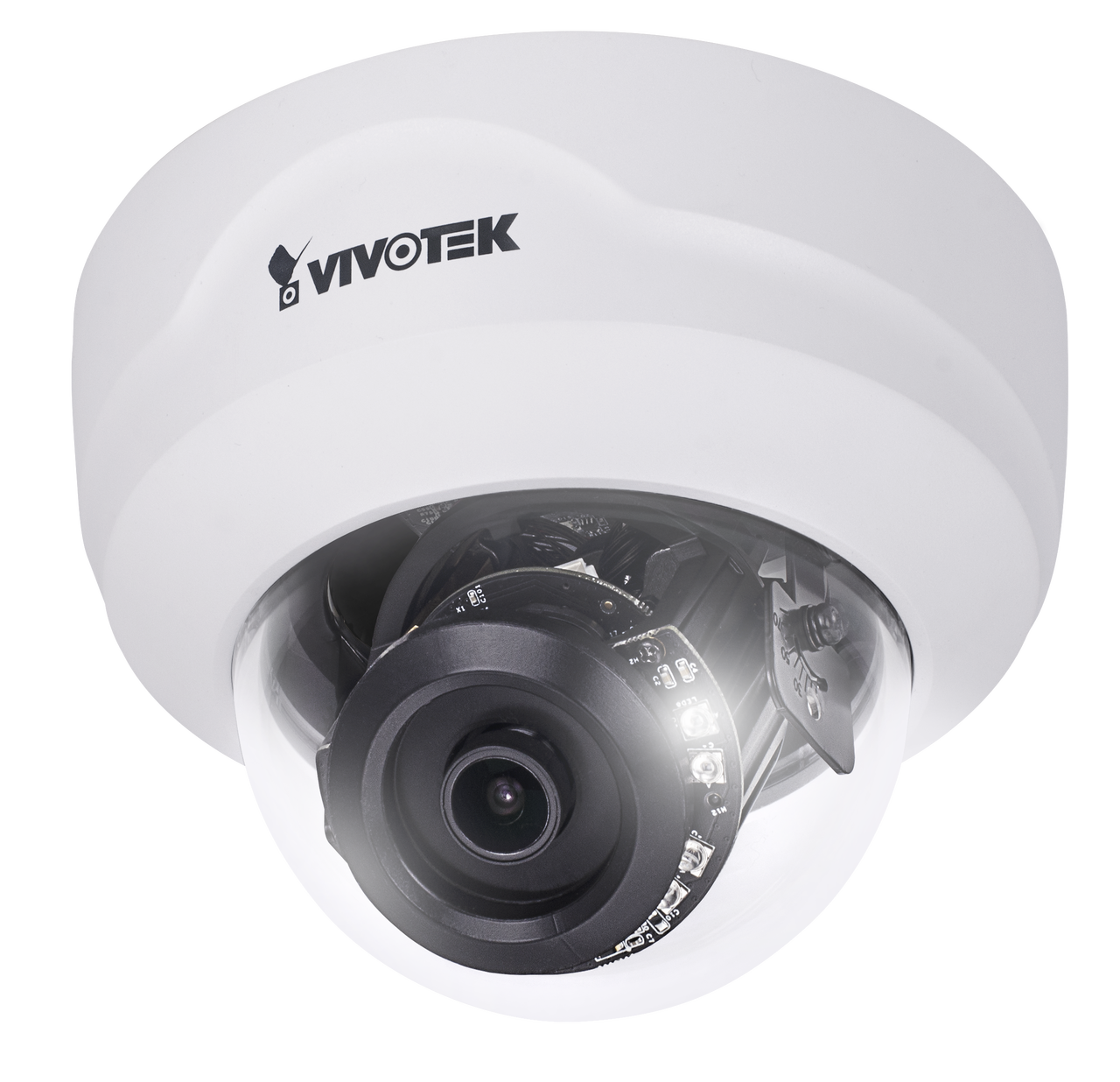

Vivotek FD8179-H 4MP Fixed Focal Indoor Dome Network Camera

Replaced by the FD9189-H

Features

• Available in a White housing (FD8179-H) or a Black housing (FD8179-H-B)
• Max Resolution: 2688x1520 (4MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 0.14 Lux @ F1.8 (Color); 0.01 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8mm / F1.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: DC auto iris
• Focus: Manual
• Field of View: 114° (H);61° (V); 132° (D)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 2688x1520 (without WDR Pro); 24 fps @ 2560x1440
• WDR Technology: WDR Pro (110 dB)
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: Yes, 5m range
• Audio Capabilities: Listening via built-in mic only
• Alarm/Event Management: Five-window motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 129 x 94 mm
• Weight: 417 g (.91 lb)
• Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: IEEE 802.3af PoE Class 0 / Max. 10 W
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, alignment sticker, screw pack

Overview

VIVOTEK FD8179-H is an indoor stylish-design 4-Megapixel IR fixed dome camera offering superb video quality with up to 30 fps at 2688x1520. This all-in-one camera with WDR Pro technology and a fixed 2.8 mm lens is capable of capturing high visibility in high contrast environments.

By adopting with VIVOTEK's sophisticated Smart Stream II technology, the FD8179-H can optimize image quality for desired regions, and thus ensure maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

As a day/night easy-to-use camera, the FD8179-H features a removable IR-cut filter as well as IR illuminators effective up to 30 meters for superior image quality. For making the camera adaptable any indoor surveillance, the FD8179-H comes with a number of features such as video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software.
