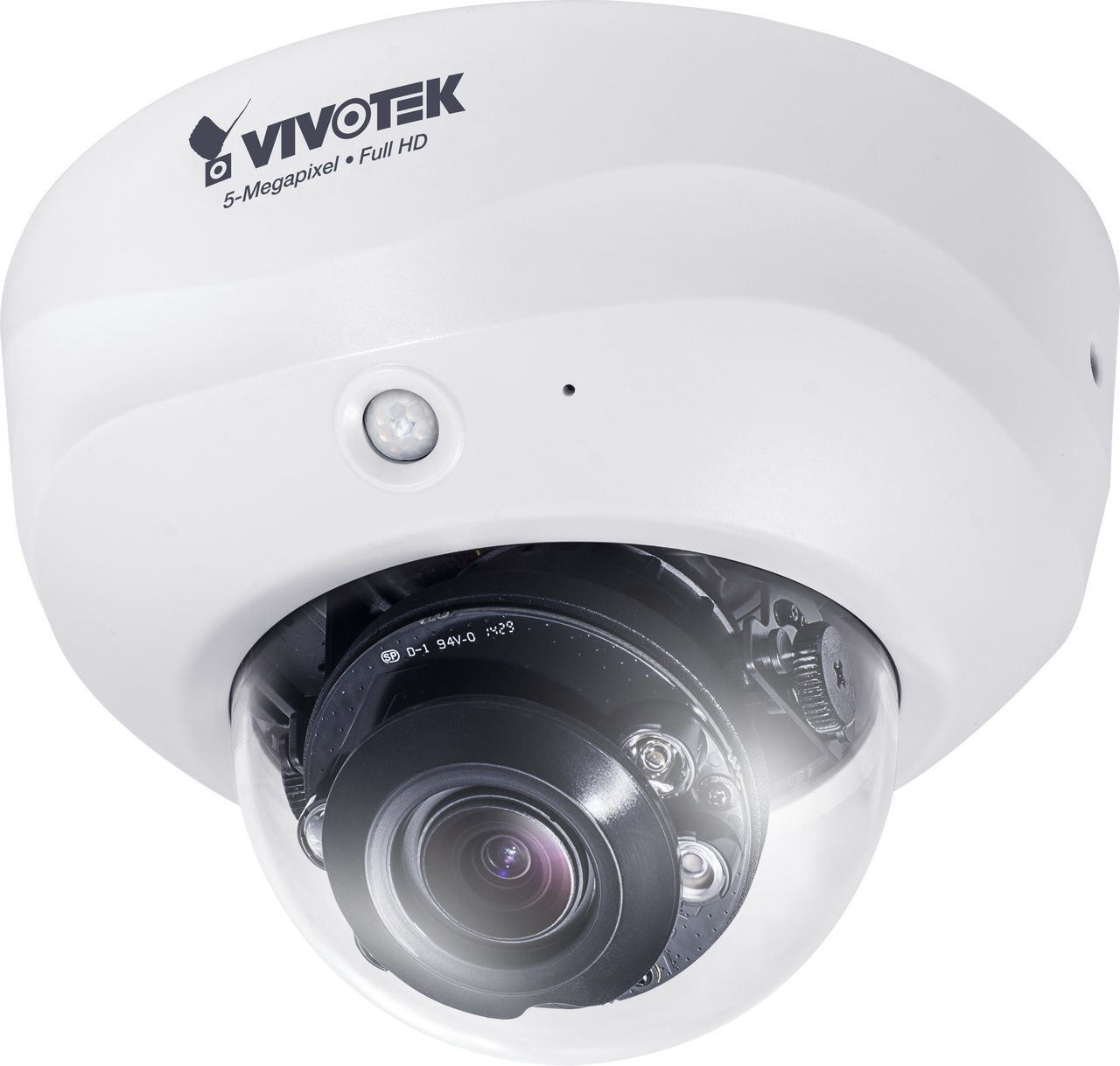

Vivotek FD8181 5MP Smart Focus PIR Dome Network Camera

Discontinued; replaced by the FD8182-T.

Vivotek FD8181 Features

• Max Resolution: 2560x1920
• Image Sensor: 1/3.2" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.27 Lux @ F1.3 (Color), 0.001 Lux @ F1.3 (B/W)
• IR Illuminators: Yes, with Smart IR technology
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 3~ 10 mm / F1.3 ~ F2.5
• Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in,12x built-in)
• Iris: P-iris
• Focus: Smart Focus System for Remote and Precise Focus Adjustment
• Field of View: 28° ~ 82° (Horizontal), 21° ~ 61° (Vertical), 37° ~ 107° (Diagonal)
• Compression Styles: MicroSD/SDHC/SDXC card slot
• Frame Rate: H.264: 25 fps at 2560x1920 30 fps at 1920x1080; MJPEG: 25 fps at 2560x1920 30 fps at 1920x1080
• WDR Technology: WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, seamless recording, smart stream, 3D Noise Reduction
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Two-way Audio (full duplex) with built-in microphone & Audio output
• Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF:Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø: 157 mm x 109 mm
• Weight: 758 g (1.67 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: 24V AC, 12V DC, IEEE 802.3at PoE / Max. 9.54W (DC 12V), Max. 10.47W (AC 24V), Max. 10.49W (PoE)
• Warranty: 3 Year
• What's Included: Camera, Quick installation guide, AV cable, DC connector, screwdriver, screws, alignment sticker, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD8181 Overview

VIVOTEK FD8181 is a brand-new professional indoor dome network camera offering up to 25 fps @ 5-Megapixel or 30 fps @ 1080p resolution with superb image quality. Equipped with new image processing technology, FD8181 provides excellent image quality and finer detail than ever before. The powerful 3D Noise Reduction technology and Smart Stream technology enable the FD8181 to optimize resolution on a desired object or area to maximize efficiency of bandwidth usage.
