Vivotek FD8182-F1-W
Vivotek FD8182-F1 banner
Network Camera Store is an Authorized Vivotek Reseller
Passive Infrared Sensor
WDR Enhancement
H.264 compression
MicroSD/SDHC/SDXC card slot
Removable IR-cut filter

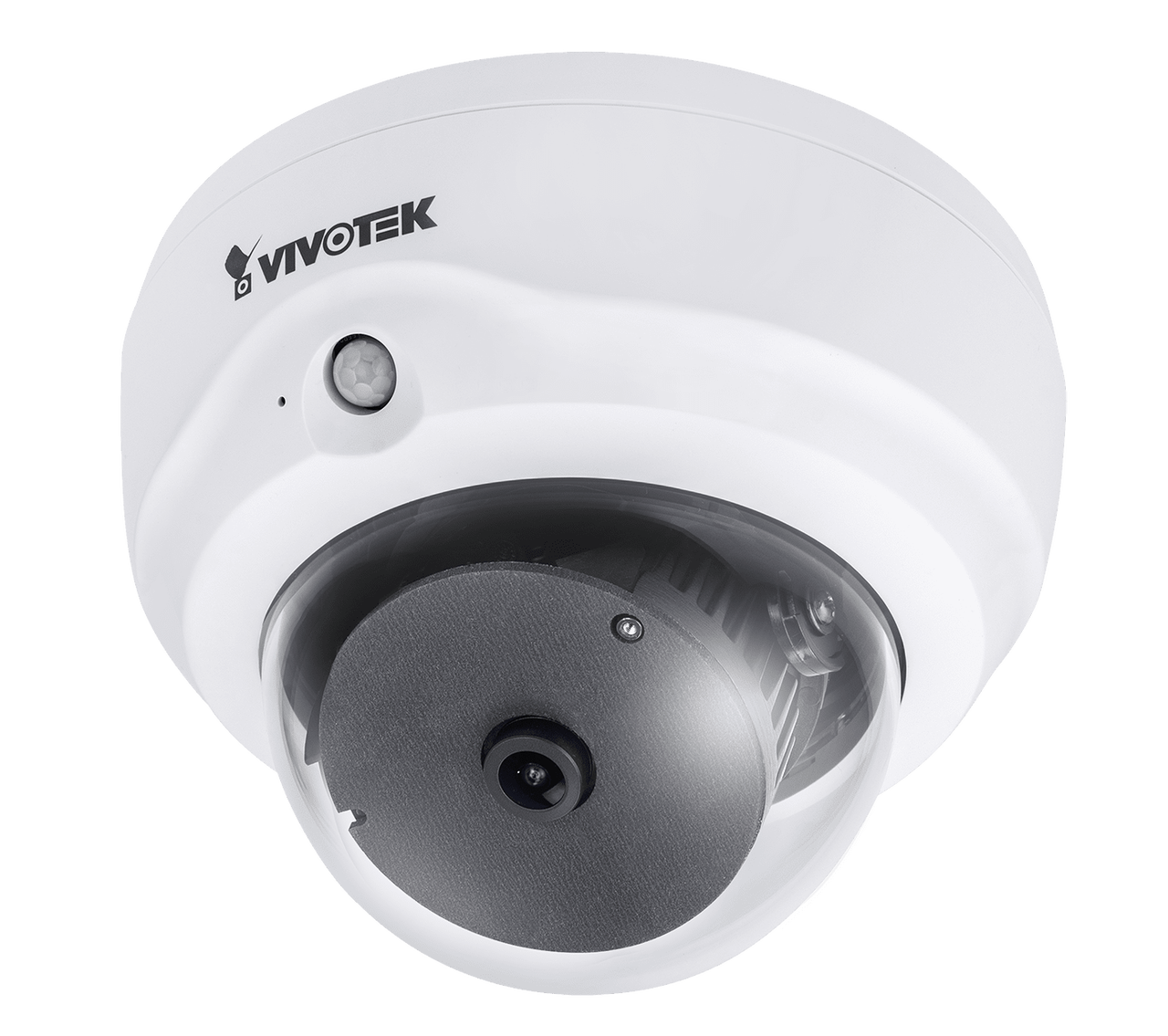

Vivotek FD8182-F1-W 5MP Ultra Wide Angle Dome Network Camera


Vivotek FD8182-F1-W 5MP Ultra Wide Angle Dome Network Camera

Sale price$285.00
SKU: FD8182-F1-W


Vivotek FD8182-F1-W Features

  • Available in a White housing (FD8182-F1-W) or a Black housing (FD8182-F1-B)
  • Max Resolution: 2560x1920 (5MP)
  • Image Sensor: 1/3.2" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.58 Lux @ F2.2 (Color)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-focal
  • Focal Length: f = 1.93 mm / F2.2
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: P-iris
  • Focus: Fixed
  • Field of View: 137° (Horizontal), 101° (Vertical), 180° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 15 fps @ 2560x1920, 15 fps @ 2048x1536, 30 fps @ 1920x1080, (in both compression modes)
  • WDR Technology: Yes, WDR Enhanced
  • Image Settings: Adjustable resolution, quality and bitrate, Smart Stream, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Supports two-way audio via built in mic, external line input, & external line output
  • Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD Card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Ø 138 x 103 mm
  • Weight: 482 g (1.06 lb)
  • Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
  • Operating Humidity: 90%
  • Power/Consumption: DC 12V or IEEE 802.3af/at PoE Class 0 / Max. 9 W
  • Warranty: 3 years
  • What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Shepherd, VAST 32-channel recording software)

Vivotek FD8182-F1 Overview

VIVOTEK’s FD8182 is a series of economical professional indoor fixed dome network cameras in VIVOTEK’s 5MP Lite series. Designed to provide higher resolution and sharper image quality, the FD8182 series offer up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution. With powerful 3D Noise Reduction technology and Smart Stream technology, the FD8182 series can also optimize resolution for a desired object or area to maximize efficiency of bandwidth usage. Increasing its flexibility, VIVOTEK’s FD8182 series has options for both fixed focus lenses and remote focus lenses with built-in stepping motors and P-iris'.The FD8182 series also has a built-in PIR (passive infrared) sensor to help detect unexpected events and provide real time alerts.

With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this series by adding third-party applications on to the FD8182-F1, FD8182-F2 and the FD8182-T. The new FD8182-F1, with it's f1.96mm lens, is also capable of seeing up to 137° horizontal and 101° vertical FOV, enabling it to cover wide areas in high detail. Thus, the FD8182 series is ideal for a wide variety of unique indoor applications including retail, education, and hospital vertical markets.
