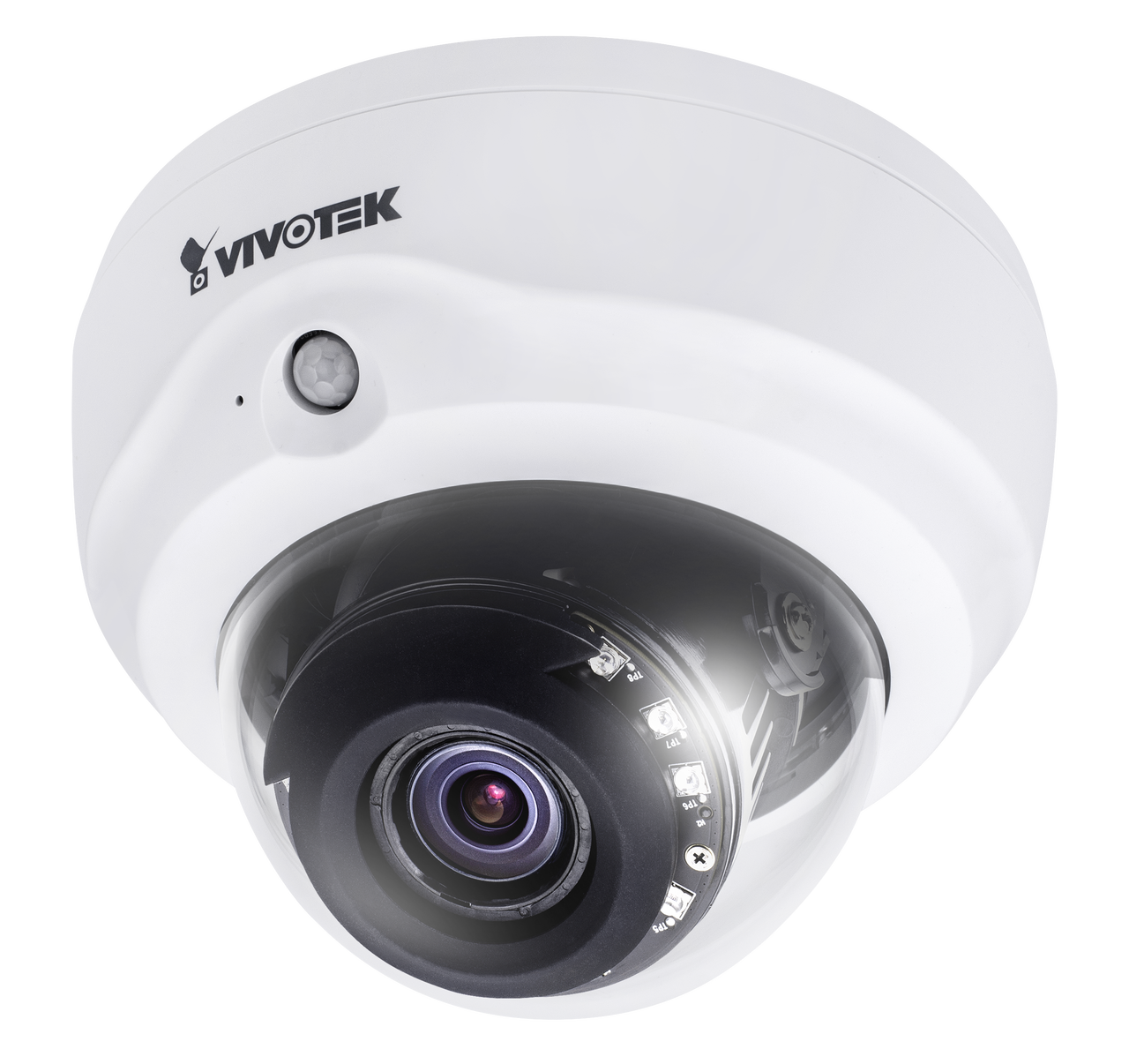

Vivotek FD8182-T 5MP Remote Focus Dome Network Camera

Replaced by the FD9189-HT or FD9187-HT

Vivotek FD8182-T Features

• Max Resolution: 2560x1920 (5MP)
• Image Sensor: 1/3.2" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.04 Lux @ F1.2 (Color) 0.001 Lux @ F1.2 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 3 ~ 9 mm / F1.2 ~ F1.6
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote Focus
• Field of View: 35° ~ 78° (Horizontal), 27° ~ 54° (Vertical), 44° ~ 101° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 15 fps @ 2560x1920; 15 fps @ 2408x1536; 30 fps @ 1920x1080 In both compression modes
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Supports two-way audio via external line input & external line output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 138 x 103 mm
• Weight: 541 g (1.19 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 7.5 W (DC 12V) or Max. 9 W (PoE)
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD8182-T Overview

VIVOTEK’s FD8182-T is an economic professional indoor fixed dome network camera in VIVTOTEK’s 5MP V-Pro Lite series. Design to provide higher resolution and sharper image with more detail, the FD8182-T offers up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution. With powerful 3D Noise Reduction technology and Smart Stream technology, the FD8182-T can also optimize resolution for a desired object or area to maximize efficiency of bandwidth usage. Increasing its flexibility, VIVOTEK’s FD8182-T provides remote focus with built-in stepping motors and P-iris to provide precise adjustment remotely. To meet the demands of indoor applications, VIVOTEK’s FD8182-T is also equipped with a PIR sensor to help detect unexpected events and provide the appropriate response in real time. With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this FD8182 series by adding third-party applications for the FD8182-F2 and the FD8182-T. Thus, the FD8182 series is not only equipped with multiple focusing methods, but is also highly flexible and able to be expanded to meet the requirements of a wide variety of indoor applications.
