Vivotek FD8335H 720p HD Dome Network Camera

Vivotek

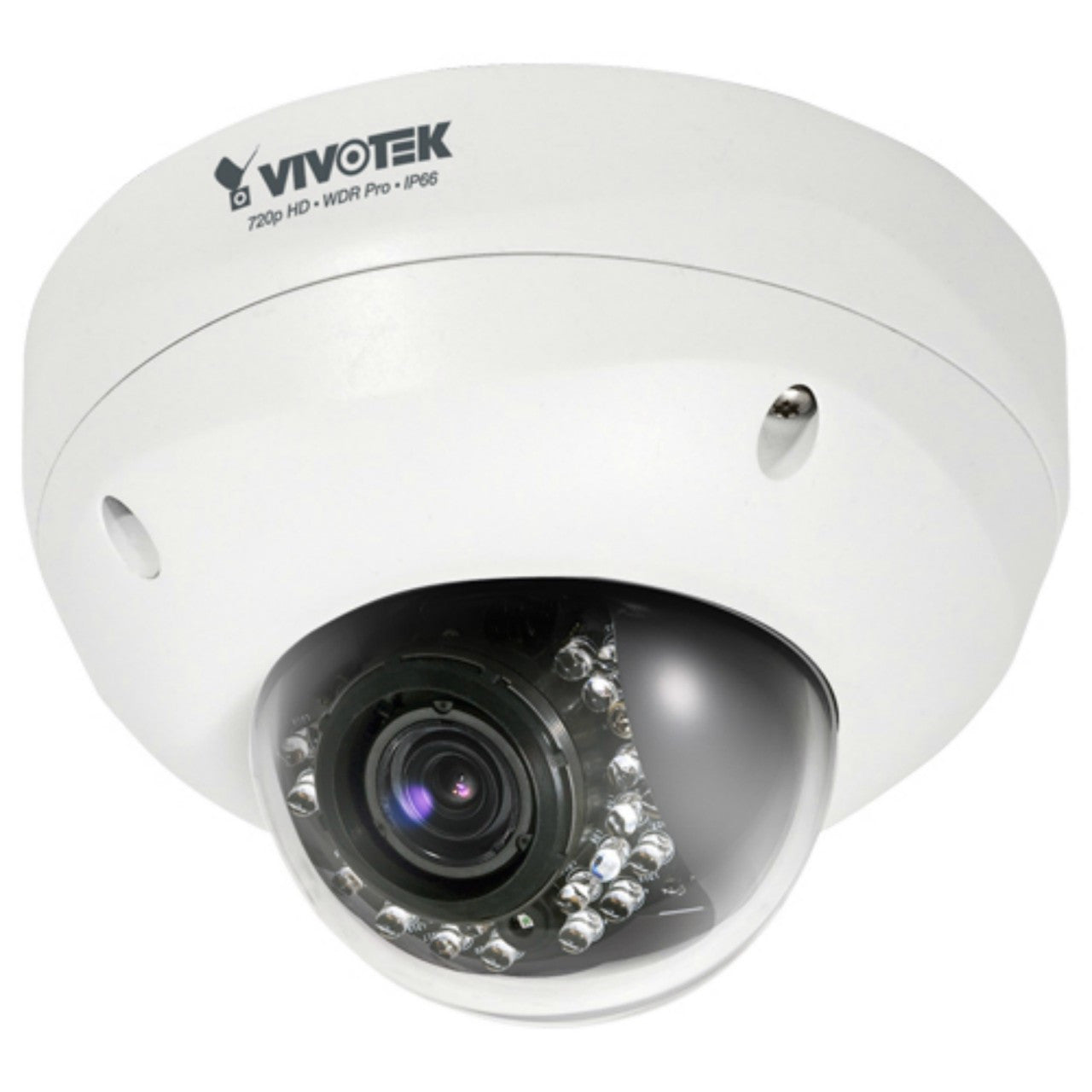

Vivotek FD8335H 720p HD Dome Network Camera

Sale price$425.00 Regular price$570.00
Discontinued
SKU: FD8335H

Contact

Discontinued; replaced by the FD8338-HV.

Vivotek FD8335H Features

  • Max Resolution: 1280 x 800 Resolution
  • Image Sensor: 1/2.7" progressive scan CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.8 Lux @ F1.2, 50 IRE, 0.001 Lux @ F1.2, 50 IRE ( B/W )
  • IR Illuminators: Yes
  • IR Illuminator Range: 20 meters
  • Lens Type: Vari-focal Lens, 1.2 ( wide ), 2.1 ( tele )
  • Focal Length: f = 3~9
  • Zoom: ePTZ
  • Iris: P-Iris
  • Focus: Auto, Smart Focus System with Focus Assist OSD
  • Field of View: 102.68° ~ 35.4° (horizontal), 61.93° ~ 22.80° (vertical), 122.56° ~ 41.11° (diagonal)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: 30fps at 1280x800 on all compression styles
  • Image Settings: WDR Pro, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, Gain, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input / Audio output ( half duplex )
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, Event notification using HTTP, SMTP, FTP, NAS server, File upload via HTTP, SMTP, FTP and NAS server,
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Vandal-proof IK10-rated metal housing, Weather-proof IP66-rated housing
  • Dimensions: 173 mm x 115 mm
  • Weight: 1414 g
  • Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
  • Operating Humidity: N/A
  • Power: 802.3af Power-over-Ethernet (Class 3), 24V AC, Max. 8 W power consumption
  • Warranty: 2 Years
  • What's Included: FD8335H, alignment sticker, bushing, mounting plate, L-type hex ket wrench, screws, waterproof connector, quick installation guide, software CD, warranty card

Vivotek FD8335H Overview

VIVOTEK's FD8335H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8335H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8335H is an outstanding 24-hour surveillance solution. The vandal-proof and the IP66-rated housing of the FD8335H enables users to easily build a cost-effective IP surveillance system without additional accessories. Its metal vandal-proof housing effectively provides robust protection from vandalism. Meanwhile, the IP66 integrated housing shields the camera from dust and water, allowing it to be applied in the harsh weather conditions of outdoor environments.
