Vivotek

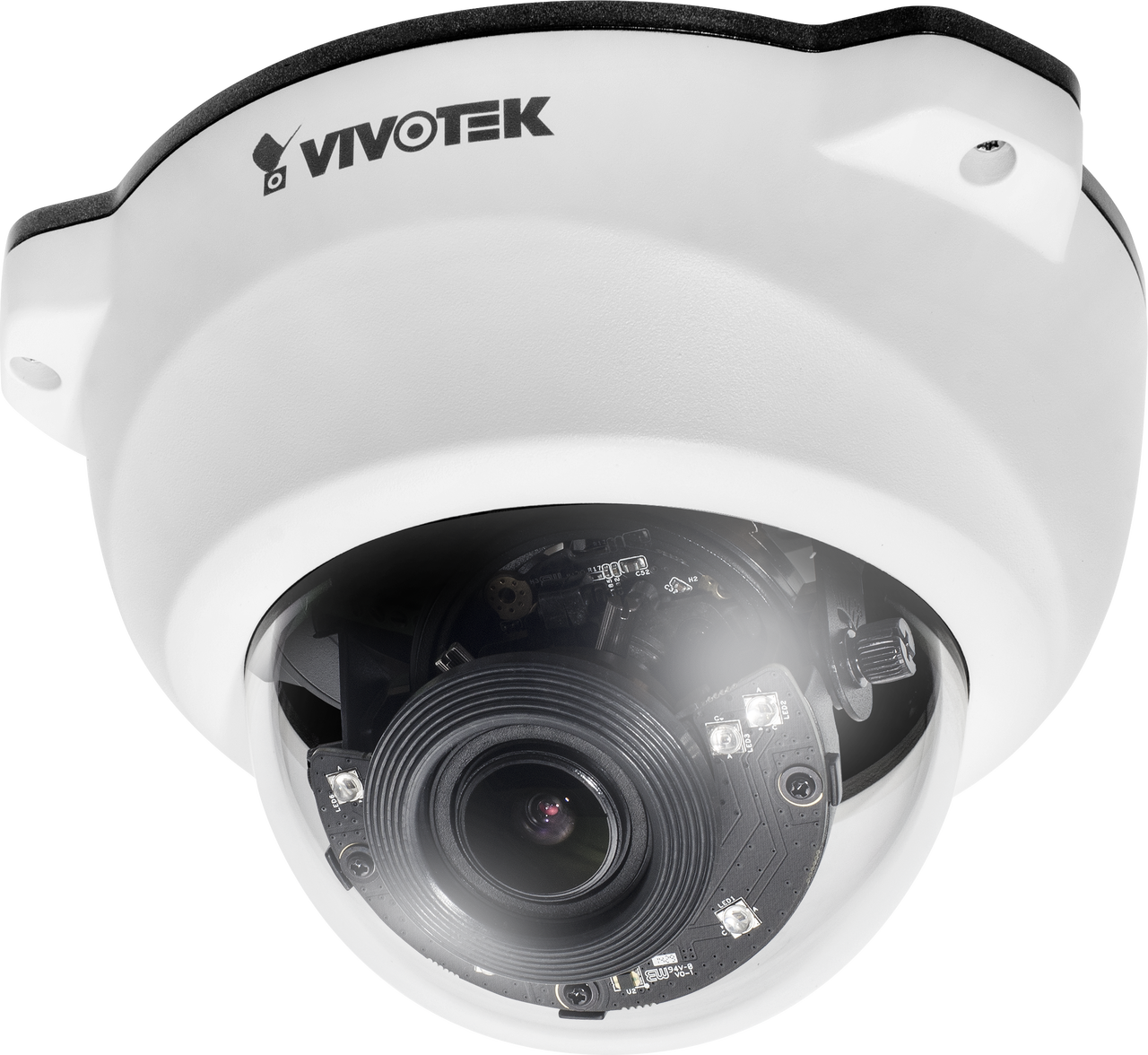

Vivotek FD8338-HV 1MP Fixed Dome Network Camera
Discontinued - Recommended Replacement: FD836B-HTV
Discontinued; replaced by the FD8367-TV.
Vivotek FD8338-HV Features
- Max Resolution: 1280x800
- Image Sensor: 1/3" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
- Minimum Illumination: 0.27 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
- IR Illuminators: Yes, 6 IR LEDs with Smart IR
- IR Illuminator Range: Effective up to 30 meters
- Lens Type: Vari-focal, Manual Focus
- Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
- Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in, 12x built-in )
- Iris: P-Iris
- Focus: Manual Focus
- Field of View: 33° ~ 87° (Horizontal), 21° ~ 54° (Vertical), 39° ~ 110° (Diagonal)
- Compression Styles: H.264, MJPEG
- Frame Rate: H.264: 30 fps @ 1280x800 or MJPEG: 30 fps @ 1280x800
- WDR Technology: Yes, WDR Pro
- Image Settings: Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, seamless recording
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Audio input/output (full duplex), External microphone input & Audio output
- Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
- ONVIF: Yes
- Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated metal housing
- Dimensions: Ø: 141 x 103 mm
- Weight: Net: 836g
- Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Operating Humidity: N/A
- Power: IEEE 802.3af PoE, PoE: Max. 9.7 W or DC 12V, DC 12V: Max. 9.96 W
- Warranty: 3 Year
- What's Included: FD8338-HV Network Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, waterproof connector, User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
The VIVOTEK FD8338-HV is a robust, fixed-dome style network camera designed for diverse outdoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the FD8338- HV is an all-in-one outdoor camera capable of capturing high quality images with 720P resolution, even in high-contrast lighting environments. While providing exceptional image quality, the FD8338-HV is also equipped with VIVOTEK Smart Stream and 3DNR to save substantial bandwidth for our users. To meet the harsh demands of outdoor applications, the FD8338-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and even high-pressure water jets from any angle, while its IK10-rated housing provides protection against attempted acts of vandalism or any violent impact.
