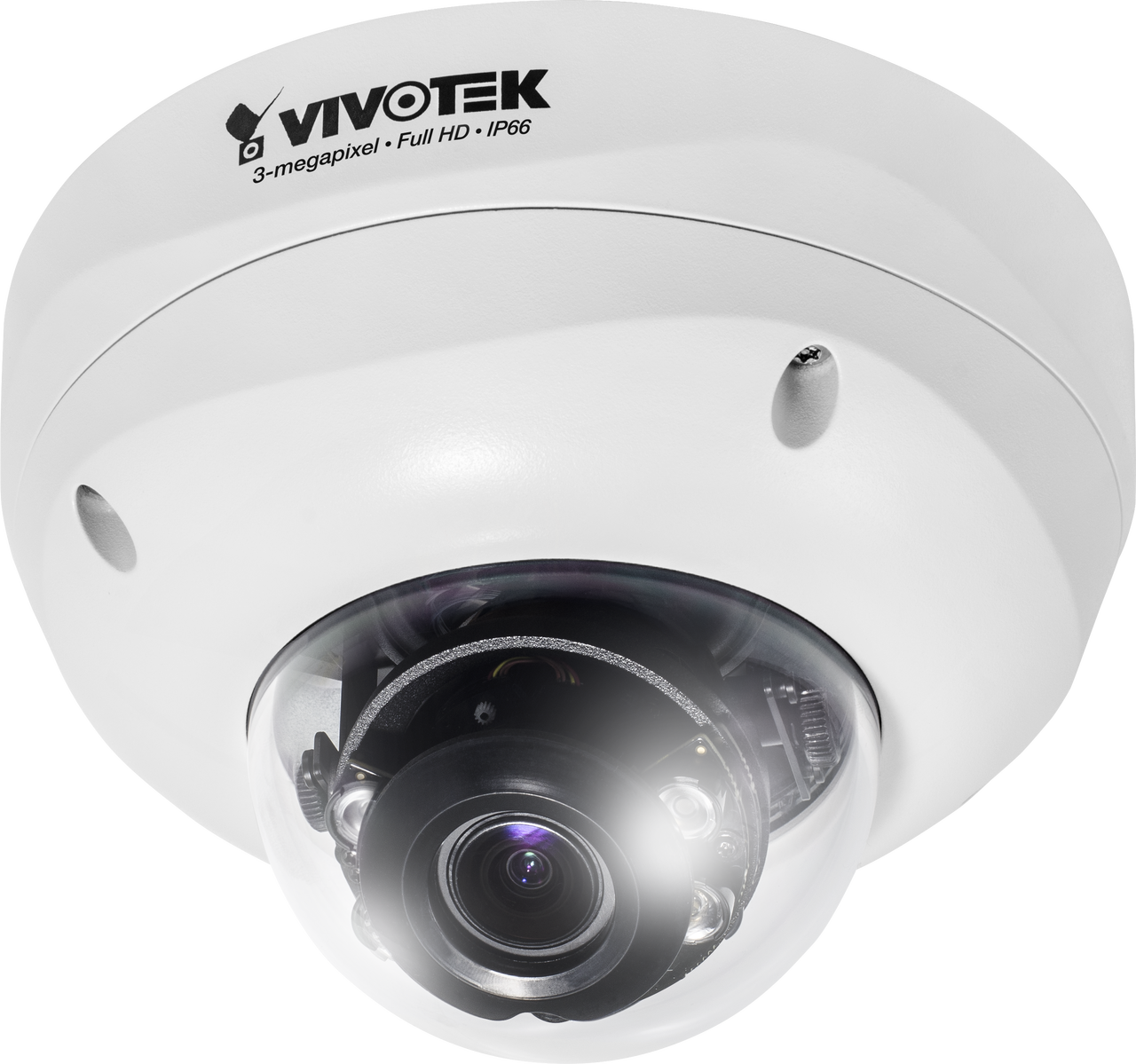

Vivotek FD8355HV 1.3 MP Smart Focus System Fixed Dome Network Camera

Replaced by the FD9365-HTV

Vivotek FD8355HV Features

• Max Resolution: 1280x1024 (1.3MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.08 Lux @ F1.3, 50 IRE (Color) & 0.001 Lux @ F1.3, 50 IRE (B/W)
• IR Illuminators: Yes, 4 IR LEDs with with Smart IR Technology
• IR Illuminator Range: Effective up to 30 meters
• Lens Type: Vari-focal, remote focus
• Focal Length: f = 3 ~ 10 mm
• Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in,12x built-in )
• Iris: P-iris
• Focus: Smart Focus System for Remote and Precise Focus Adjustment
• Field of View: 30° ~ 95° (horizontal), 24° ~ 75° (vertical), 39° ~ 123° (diagonal)
• Compression Styles: H.264, MJPEG
• Frame Rate: 30 fps @ 1280x1024 in both compression modes
• WDR Technology: WDR Pro II (140 dB)
• Image Settings: Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction (3DNR), Smart Stream
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Two-way Audio (full duplex) using External microphone input & Audio output
• Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated housing
• Dimensions: Ø: 173 mm x 115 mm
• Weight: Net: 1215 g
• Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Operating Humidity: N/A
• Power: 24V AC, 12V DC, IEEE 802.3af PoE
• Warranty: 3 Years
• What's Included: FD8355HV Network Camera, AV Cable, Bushing, DC Connector, Dessicant Bag, Double-Sided Tape, Hex Nut, L-Type Hex Key Wrench, Mounting Plate, Screws, Alignment sticker / Ceiling hole template sticker, Quick Installation Guide, Software CD, Warranty Card, Waterproof Connector

Vivotek FD8355HV Overview

VIVOTEK FD8355HV is a professional outdoor network dome camera offering 30 fps @ 1.3-Megapixel resolution with superb image quality. Featuring the new improved Wide Dynamic Range Technology WDR Pro II, it provides extreme visibility in extremely dark & light environments with 4 shutter capture methods. Combined 3D Noise Reduction Technology, which enables the FD8355HV to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image detail in extremely bright as well as dark environments. Additionally, as a professional day/night camera, FD8355HV adopts Smart IR technology which prevents overexposure and provides noise reduction to adjust IR lighting intensity instantaneously based on changes in lighting in the ambient environment. To provide top-notch image quality, FD8355HV also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Thus, FD8355HV is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment. The camera's IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while the IK10 vandalproof rating provides protection against the vandalism and impact.
