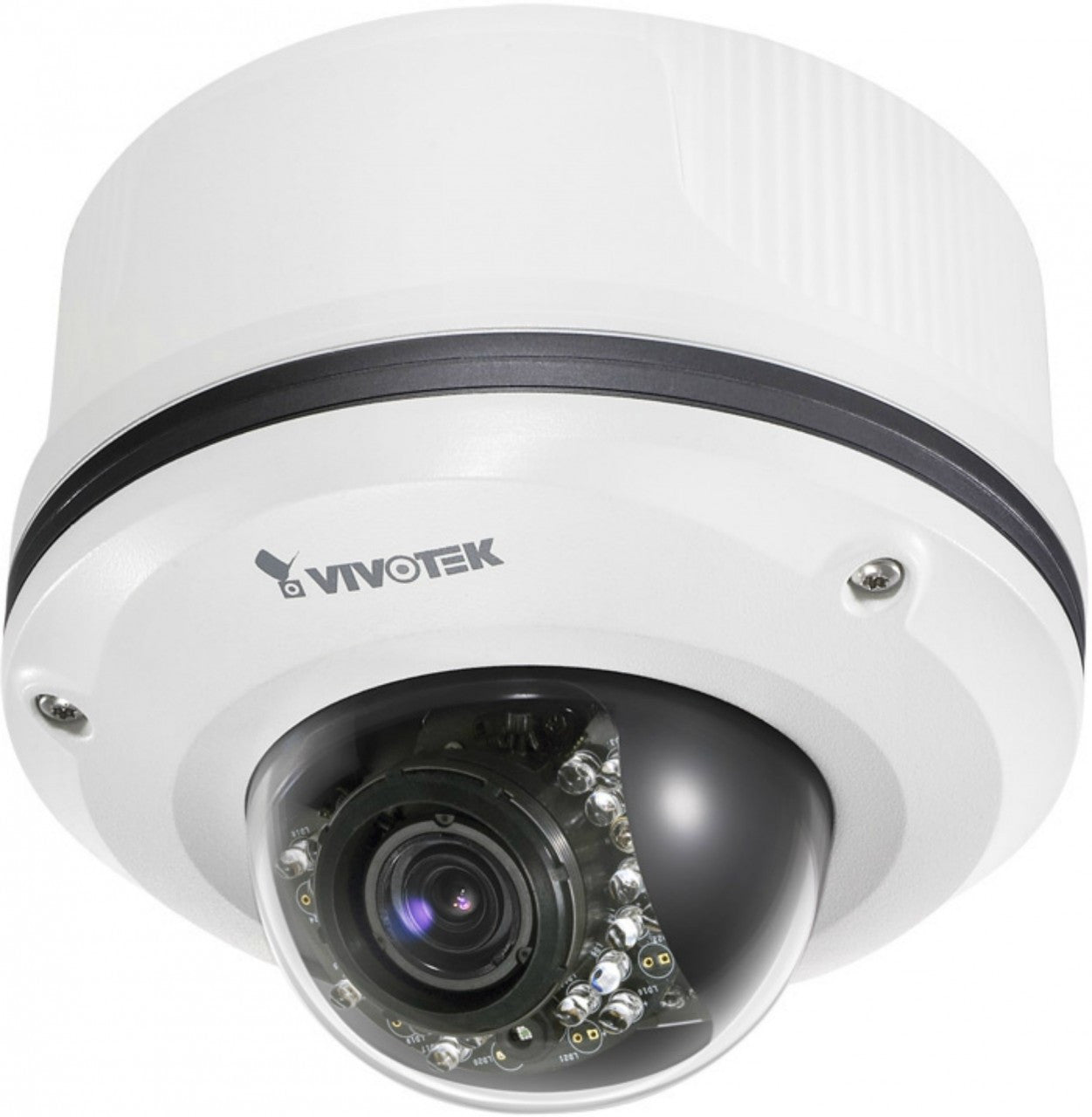

Vivotek FD8361 Outdoor 2 Megapixel Dome Network Camera


Vivotek FD8361 Outdoor 2 Megapixel Dome Network Camera

Sale price$425.00
SKU: FD8361


Vivotek FD8361 Features

  • Max Resolution: 1600x1200
  • Image Sensor: 1/3.2" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.1 Lux @ F1.2 (color); 0.001 Lux @F1.2 (B/W)
  • IR Illuminators: Yes
  • IR Illuminator Range: 20 meters
  • Lens Type: Vari-focal board lens
  • Focal Length: f=3 ~ 9 mm, F 1.2 (wide) F 2.1 (tele)
  • Zoom: ePTZ
  • Iris: Auto
  • Focus: Manual
  • Field of View: 31.7° ~ 93.0° (horizontal), 23.8° ~ 68.4° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x720, up to 15 fps at 1600x1200 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), ePTZ
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: External microphone input, Audio output, Supports two-way via SIP protocol audio, Supports audio mute
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Metal base and polycarbonate transparent cover vandal-proof: 1000g, Weather-proof IP66-rated housing
  • Dimensions: 170mm x 133 mm
  • Weight: 2184 g
  • Operating Temperature: -30 ~ 50 °C (-22 ~ 122 °F )
  • Operating Humidity: 20 ~ 95%
  • Power: 802.3af Power-over-Ethernet (Class 1), 12V DC, 24V AC, Max. 5.3 W, Max. 9.9 W (with heater, fan, and IR illuminator)
  • Warranty: 2 Years
  • What's Included: FD8361, bottom base, screws, quick installation guide, alignment stickers, power adapter, software CD, warranty card

Vivotek FD8361 Overview

VIVOTEK's FD8361 is the latest professional-series outdoor fixed dome network camera featuring superb megapixel image quality and exceptional bandwidth efficiency. With day & night functionality and a weatherproof housing, it is especially suitable for tough outdoor surveillance environments such as parking lots and streets. Featuring a 2-megapixel sensor, the FD8361 is able to provide extremely wide coverage with the finest details. Additionally, the camera is incorporated with high performance H.264 compression technology, and has adopted a number of innovative bandwidth-efficient technologies built into the camera, including cropping, ePTZ, and activity adaptive streaming. In order to adapt to constantly changing outdoor lighting conditions, the FD8361 features an auto-iris lens to perform better image quality under different lighting environment. The camera also comes with a removable IR-cut filter and IR illuminators for superior image quality around the clock. For protection against the elements, the camera is furnished with an IP66-rated housing and vandal-proofcasing to withstand rain, dust, and vandalism. The PoE-powered heater and fan further enhance the FD8361's performance and reliability in extremely cold and warm weather. The integrated BNC connector allowing the FD8361 to be connected directly to an analog monitor provides enhanced flexibility and usability and ease of installation. Other advanced features include a 3-axis mechanism for flexible installation, 802.3af PoE, SD/SDHC card slot, tamper detection, and two-way audio. With the included ST7501 32-CH central management software, the FD8361 is the ultimate camera for demanding outdoor environments.
