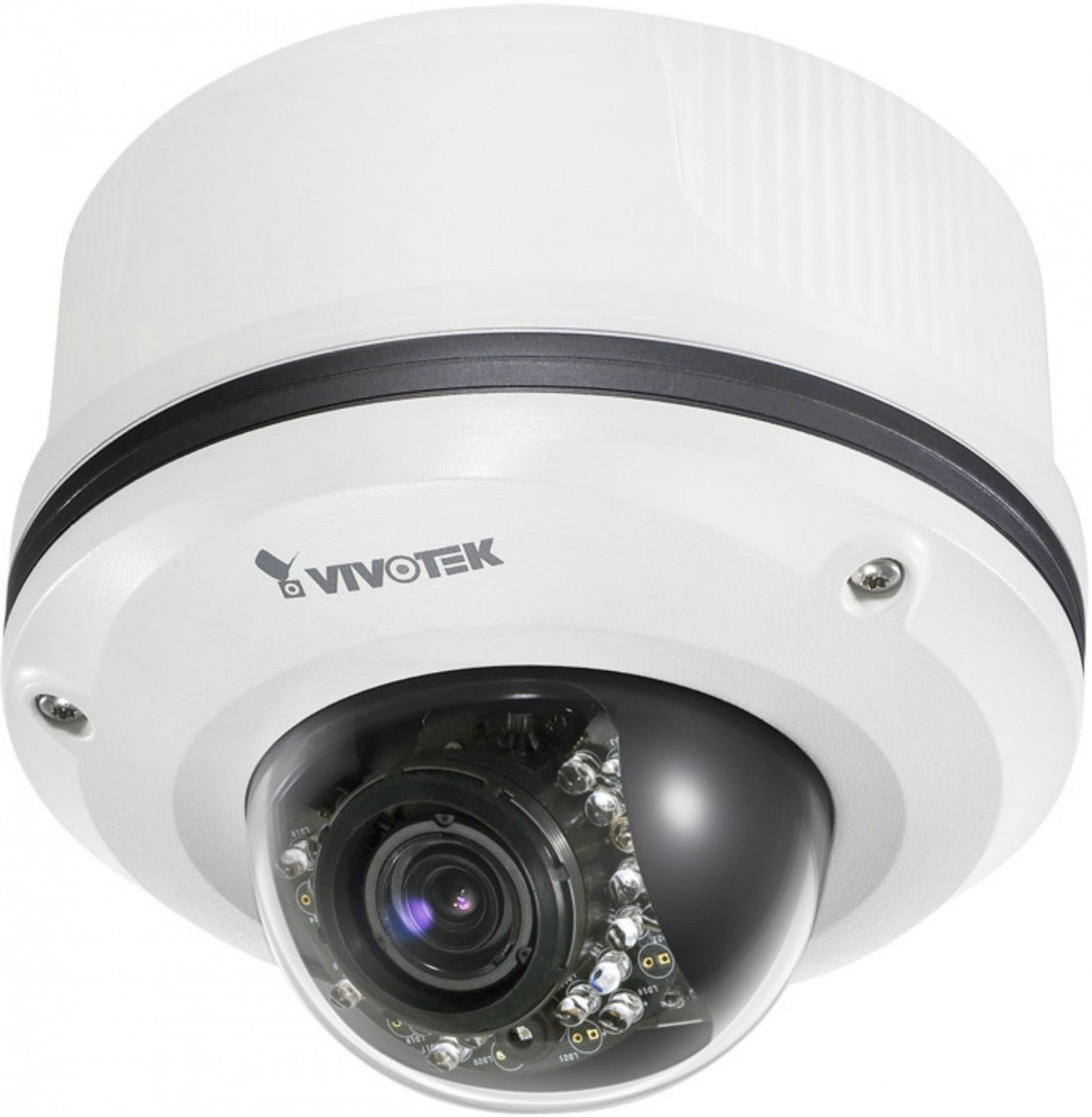

Vivotek FD8361L Vandal Proof Dome Camera


Vivotek FD8361L Vandal Proof Dome Camera

Sale price$545.00
SKU: FD8361L

Vivotek FD8361L Features

  • Max Resolution: 1600x1200
  • Image Sensor: 1/3.2" CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.1 Lux @ F1.2 (color), 0.001 Lux @ F1.2 ( B/W )
  • IR Illuminators: Yes
  • IR Illuminator Range: 20 meters
  • Lens Type: Vari-focal board lens
  • Focal Length: f=3 ~ 9 mm, F 1.2 (wide) F 2.1 (tele)
  • Zoom: ePTZ
  • Iris: Auto
  • Focus: Manual
  • Field of View: 31.7° ~ 93.0° (horizontal), 23.8° ~ 68.4° (vertical)
  • Compression Styles: H.264, MPEG-4 & MJPEG
  • Frame Rate: Up to 30 fps at 1280x720, up to 15 fps at 1600x1200 in all compression styles
  • Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC, AWB, AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), ePTZ
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: 10 clients on-line monitoring at the same time
  • On-board Storage: Yes, SD/SDHC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing
  • Dimensions: 170mm x 133 mm
  • Weight: 1907 g
  • Operating Temperature: -30 ~ 50 °C (-22 ~ 122 °F )
  • Operating Humidity: 20 ~ 95%
  • Power: 802.3af Power-over-Ethernet (Class 3), 24V AC, Max. 5.3 W, Max. 9.9 W (with heater, fan, and IR illuminator)
  • Warranty: 2 Years
  • What's Included: FD8361L, bottom base, screws, quick installation guide, alignment stickers, software CD, warranty card

Vivotek FD8361L Overview

The latest marvel in the VIVOTEK professional series of outdoor fixed dome cameras is the vandal proof FD8361L. The tamper and weather resistant dome network camera offers exceptional megapixel imagery, as well as superior bandwidth competence. Ideal in harsh outdoor environments such as parking lots and busy streets, the VIVOTEK FD8361L provides true round-the-clock surveillance in even the cruelest weather conditions. The VIVOTEK FD8361L features a 2 megapixel CMOS sensor and a removable infrared cut filter with IR illuminators designed to provide highly intricate image capture and review. Like each of the network dome cameras offered by VIVOTEK, the FD8361L is housed in an indestructible IP66 compliant enclosure capable of withstanding nature and vandalism. For colder or warmer climates, the camera comes equipped with a Power of Ethernet heater and fan to assist the lens in maintain optimal conditions in every environment.
