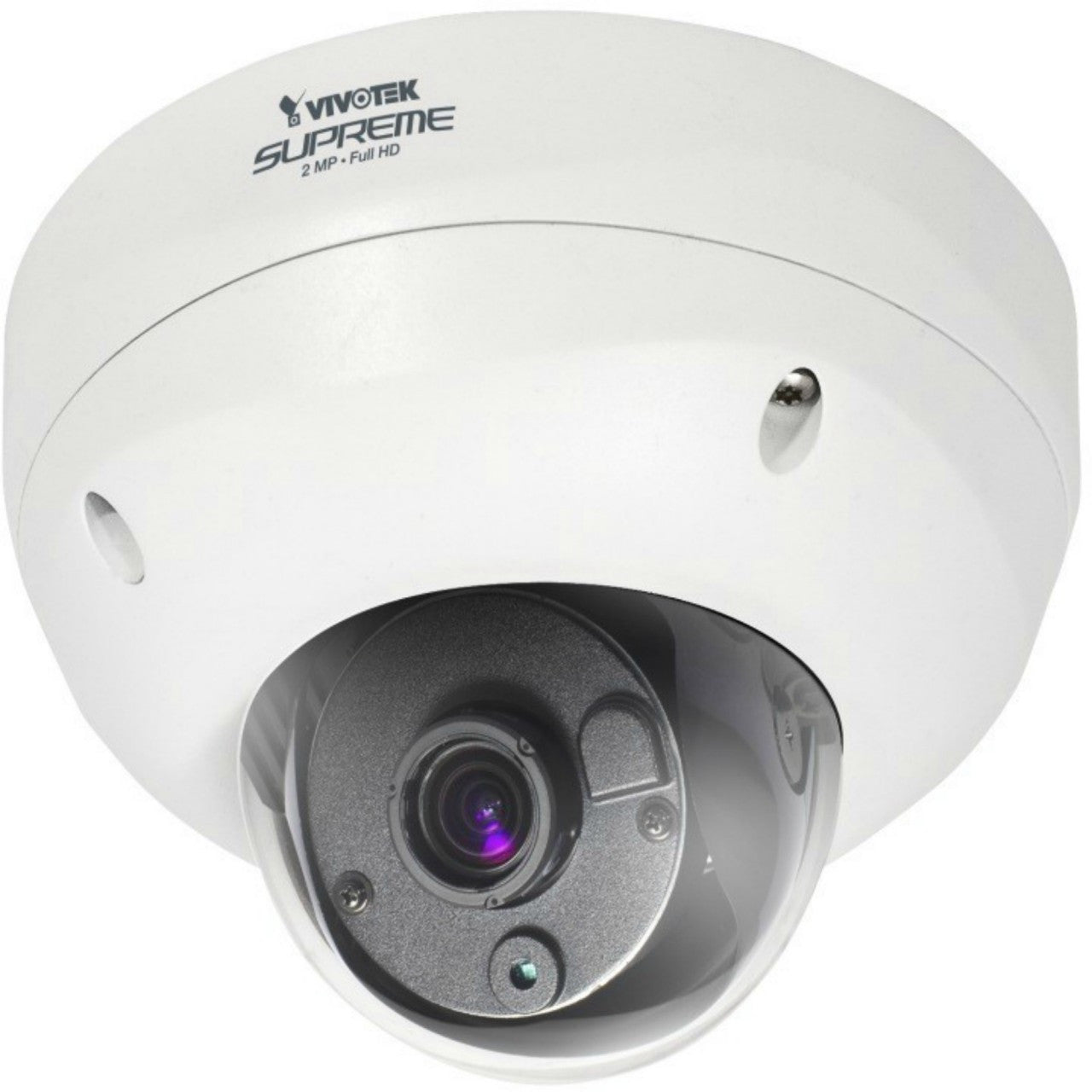

Vivotek FD8362 2MP Dome Network IP Camera

Discontinued.

Vivotek FD8362 2MP Dome Network IP Camera Features

• Resolution: 1920x1080
• Image Sensor: 1/2.7" progressive scan CMOS
• Sensor Size: F 1.2 (wide) F 2.1 (tele)
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.08 Lux @ F1.2 ( typical ) 0.001 Lux @ F1.2 ( B/W )
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Board
• Focal Length: f=3~9 mm
• Zoom: N/A
• Iris: Auto
• Focus: Remote
• Field of View: 31.7° ~ 93.0° (horizontal), 23.8° ~ 68.4° (vertical), 39.6° ~ 118.9° (diagonal)
• Compression Styles: H.264, MPEG-4 & MJPEG
• Frame Rate: Up to 30 fps
• Image Settings: Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, AGC AWB AES, Automatic, manual or scheduled day/night mode, Supports privacy masks, BLC (Backlight compensation), WDR enhanced
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: External microphone input, Audio output, Supports two-way audio, Supports audio mute
• Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
• ONVIF: Yes
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: Yes
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: Weather-proof IP66-rated housing, Vandal-proof IK10-rated metal housing
• Dimensions: 173mm x 115 mm
• Weight: 1296 g
• Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
• Operating Humidity: 90%
• Power: 12V DC, 24V AC, 802.3af Power-over-Ethernet (Class 3), DC 12V Max. 8.9W (with 400mA DO on), AC 24V Max. 12.2W (with 400mA DO on), PoE Max. 8.2W (with 200mA DO on)
• Warranty: 36 Months

Vivotek FD8362 2MP Dome Network IP Camera Overview

VIVOTEK FD8362 are professional fixed dome network cameras offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. The cameras can capture a much more comprehensive area than a standard VGA model, significantly reducing the number of units required. It is especially suitable for monitoring wide open outdoor such as building entrances, airports or applications requiring accurate identification. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus VIVOTEK introduces the Smart Focus System including Focus Assist Button and Remote Focus to make installation and adjustment easier. VIVOTEK adopts lenses with built-in stepping motors that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Its metal vandal-proof housing effectively provides robust protection from vandalism.

With other advanced features such as tamper detection, 802.3af compliant PoE, MicroSD/SDHC card for on-board storage, video cropping, and e-PTZ functionality, the FD8362 provide the most robust solution suitable for any demanding outdoor environments.
