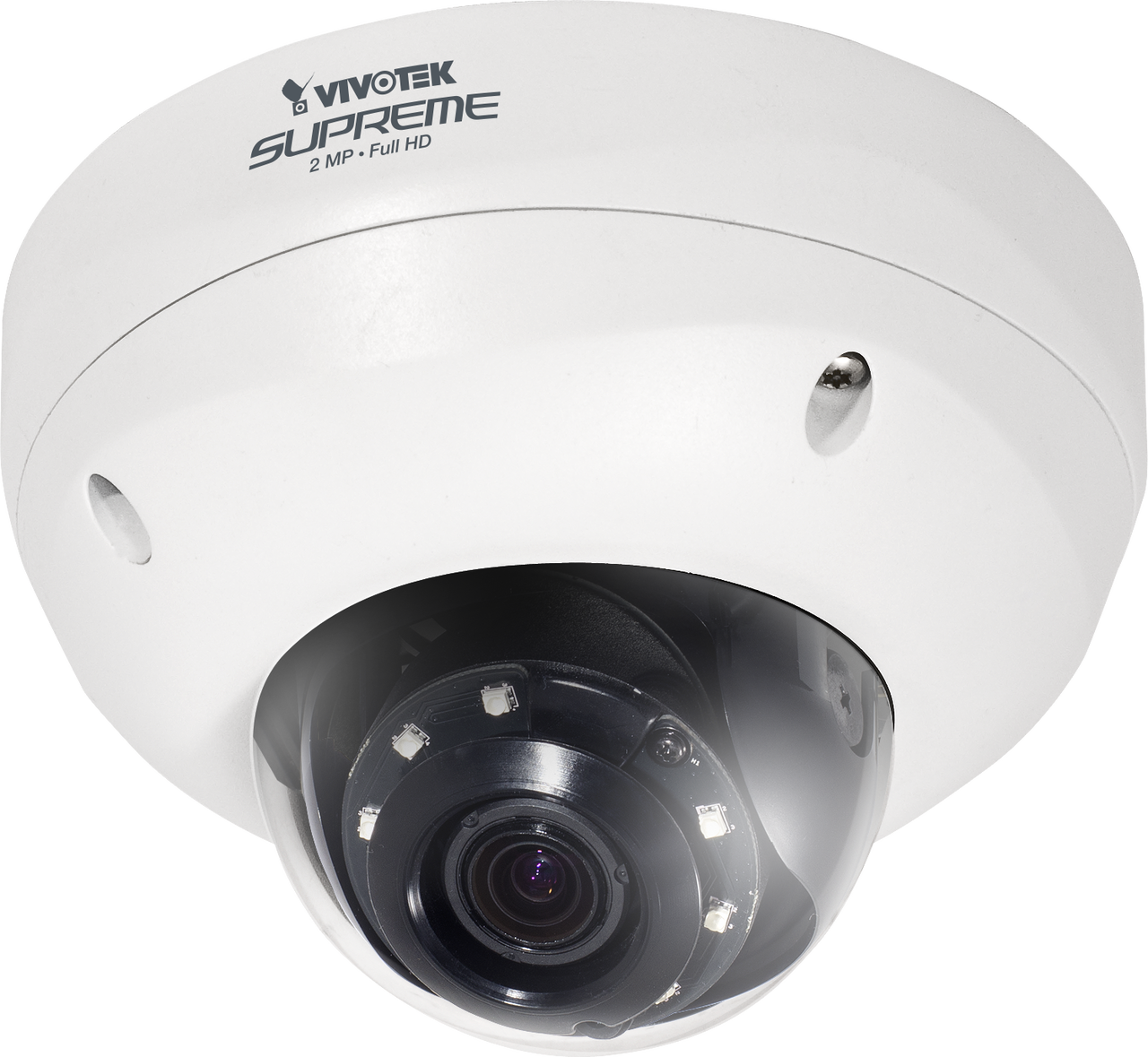

Vivotek FD8363 Full HD Vandal Proof Fixed Dome Network Camera

Discontinued, replaced by the FD8367-TV.

Vivotek FD8363 Features

• Max Resolution: 1920x1080
• Image Sensor: 1/2.7" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.08 Lux @ F1.2, 50 IRE (color); 0.001 Lux @ F1.2, 50 IRE (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: Up to15 meters
• Lens Type: Vari-focal
• Focal Length: f = 3 ~ 9
• Zoom: 48x digital zoom, (4x on IE plug-in, 12x built-in)
• Iris: DC-iris
• Focus: Smart Focus System, including Easy Focus Button and Remote Focus
• Field of View: 38° ~ 104° (horizontal), 22° ~ 71° (vertical), 43° ~ 111° (diagonal)
• Compression Styles: H.264, MJPEG & MPEG-4
• Frame Rate: 30 fps at 1920x1080 in all resolutions & compressions
• Image Settings: Adjustable image size, quality, and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Audio input / Audio output (Full duplex), External microphone input & External line output
• Alarm/Event Management: Video motion detection (Triple-window video motion detection), manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
• ONVIF: Yes
• Security: Multi-level user access with password protection; IP address filtering; HTTPS encrypted data transmission; 802.1X port-based authentication for network protection
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, Built in MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Vandal-proof IK10-rated metal housing; Weather-proof IP66-rated housing
• Dimensions: 173 mm x 115 mm
• Weight: 1220 g
• Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Operating Humidity: N/A
• Power: IEEE 802.3af PoE Class 3, 12V DC; 24V AC
• Warranty: 3 Years
• What's Included: FD8363 Network Camera, Quick installation guide, warranty card, mounting plate, alignment sticker, L-type hex key wrench, silica gel, screws, hex nut, double-sided tape, AV cable, waterproof connector, bushing, software CD, Power Adapter

Vivotek FD8363 Overview

VIVOTEK FD8363 is a professional outdoor dome network camera, offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As with other true day/night models, the camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the revolutionary Smart Focus System, including Easy Focus Button and Remote Focus to make installation and image adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance.The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions, while its metal vandal-proof housing effectively provides robust protection from vandalism. With other advanced features such as WDR enhanced, tamper detection, 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8363 provides the most robust solution suitable for demanding outdoor environments. The VIVOTEK FD8363 is able to transmit 30 fps @ 1080p with H.264 compression, while conventional megapixel cameras generally only achieve 10 to 15 fps due to hardware limitations. The ability to view and record footage at a full frame rate enables much more effective surveillance. Compatible with the HDTV (16:9) standard, the FD8363 provides surveillance coverage for an area up to six times larger than possible with a VGA camera, significantly reducing the number of cameras required. The FD8363 is especially well suited to monitor broad spaces such as shopping mall, airport, and hotel lobby, etc. In addition, it is excellent for applications requiring accurate recognition for post-content analysis, such as the identification of people or license plates.
