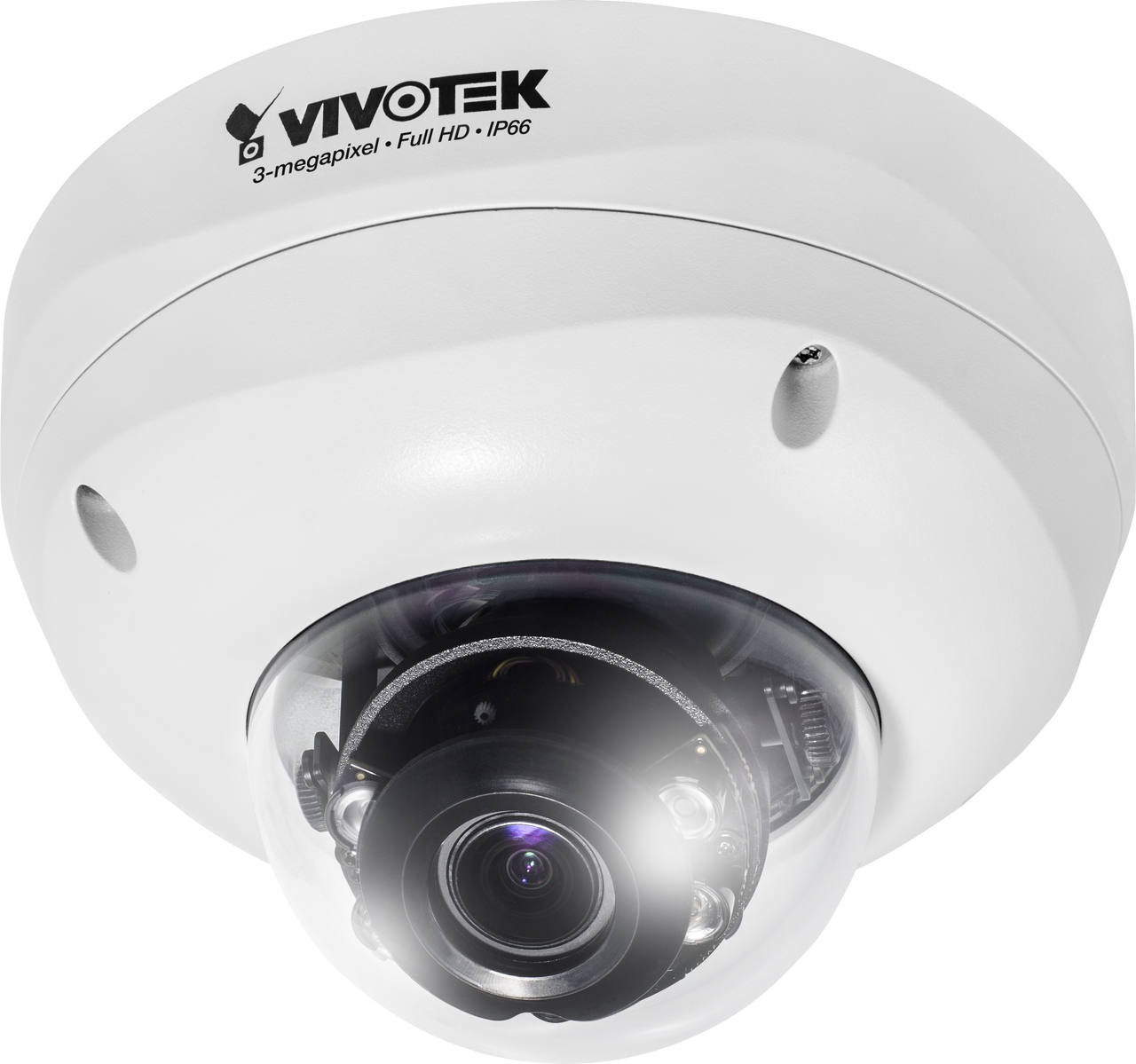

Vivotek FD8365EHV 2MP WDR Pro Smart Focus System Network Camera


Vivotek FD8365EHV 2MP WDR Pro Smart Focus System Network Camera

Sale price$675.00

Discontinued; replaced by the FD836BA-EHTV.

Vivotek FD8365EHV Features

  • Max Resolution: 1920x1080 (2MP)
  • Image Sensor: 1/2.8" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.42 Lux @ F1.3, 50 IRE (Color) & 0.001 Lux @ F1.3, 50 IRE (B/W)
  • IR Illuminators: Yes, 4 IR LEDs with Smart IR technology
  • IR Illuminator Range: Effective up to 20 meters
  • Lens Type: Vari-focal, remote focus
  • Focal Length: f = 3 ~ 10 mm
  • Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in,12x built-in )
  • Iris: P-iris
  • Focus: Smart Focus System for Remote and Precise Focus Adjustment
  • Field of View: 33° ~ 104° (horizontal), 19° ~ 56° (vertical), 39° ~ 121° (diagonal)
  • Compression Styles: MicroSD/SDHC/SDXC card slot
  • Frame Rate: 30 fps @ 1920x1080 in both compression modes
  • WDR Technology: WDR Pro (100 dB)
  • Image Settings: Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Smart Stream
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way Audio (full duplex) with External microphone input & Audio output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection: Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF:Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated housing
  • Dimensions: Ø: 173 mm x 115 mm
  • Weight: Net: 1215 g
  • Operating Temperature: AC/DC: -50°C ~ 50°C (-58°F ~ 122°F); PoE: -20°C ~ 50°C
  • Operating Humidity: N/A
  • Power: DC12V/AC24V & IEEE 802.3af PoE (DC Max.25.2W(Heater on) 8W(Heater off), AC Max. 30.3W(Heater on), 8.8W(Heater off), PoE Max. 10.6W)
  • Warranty: 2 Year
  • What's Included: FD8365EHV Network Camera, AV Cable, Bushing, DC Connector, Dessicant Bag, Double-Sided Tape, Hex Nut, L-Type Hex Key Wrench, Mounting Plate, Screws, Alignment sticker / Ceiling hole template sticker, Quick Installation Guide, Software CD, Warranty Card, Waterproof Connector

Vivotek FD8365EHV Overview

VIVOTEK FD8365EHV is a professional outdoor network dome camera offering 30 fps @ 2-Megapixel resolution with superb image quality. Featuring the Wide Dynamic Range Technology WDR Pro, it provides improved visibility in the extremely dark & light environment. Combined 3D Noise Reduction Technology, which enables the FD8365EHV to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image details in pretty bright as well as dark environments. Additionally, as a professional day/night camera, FD8365EHV adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on changes in lighting in the ambient environment. To provide top-notch image quality, FD8365EHV also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Thus, FD8365EHV is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment. The camera’ s IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while the IK10-rated vandalproof rating provides protection against the vandalism and impact. Additionally, the wide temperature range further enhances the FD8365EHV's performance and reliability in extremely cold and hot weather.
