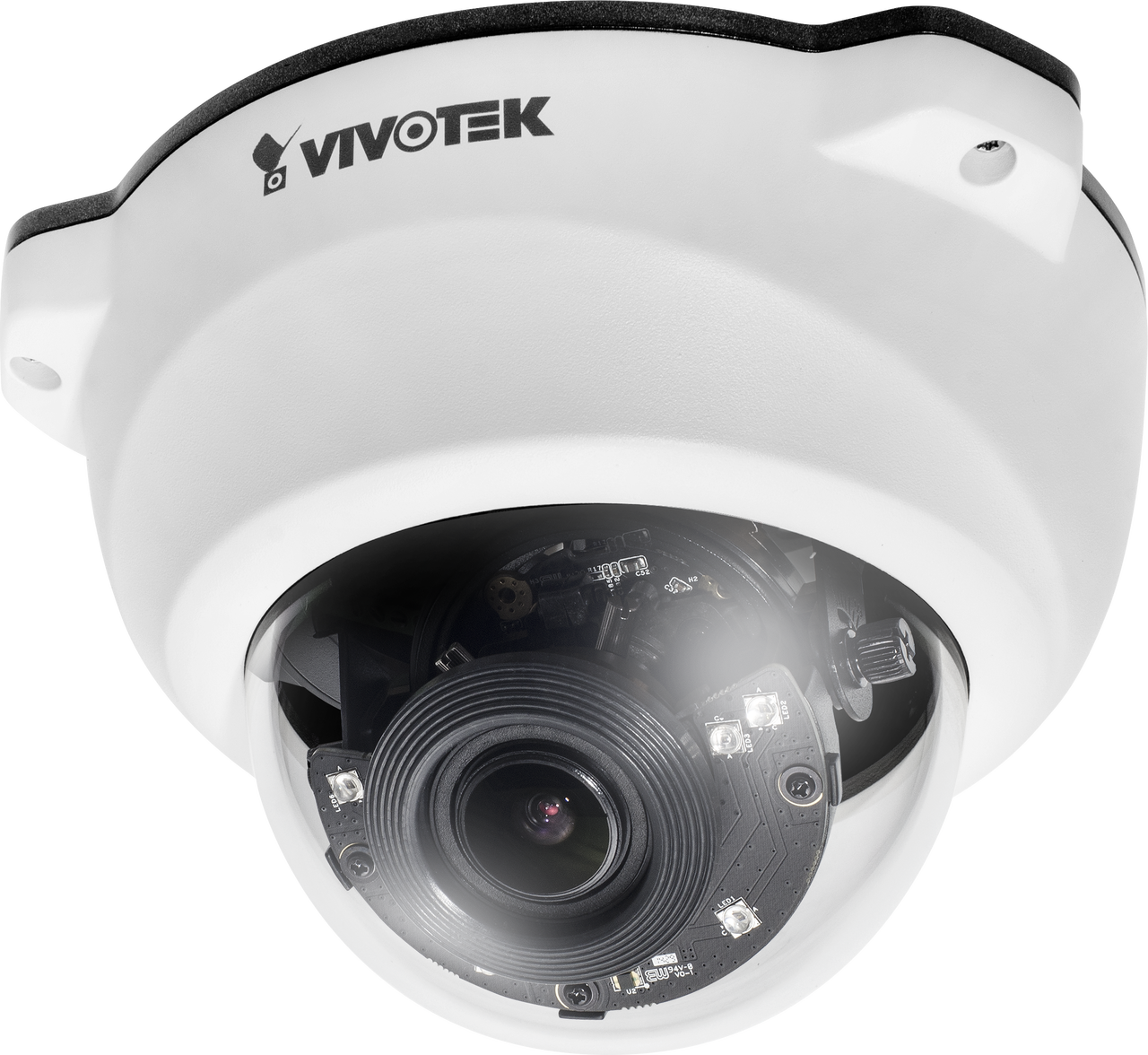

Vivotek FD8367-V 2MP IR Dome Network Camera

Discontinued; replaced by the FD8367A-V.

Vivotek FD8367-V Features

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.06 Lux @ F1.8 (Color); 0.001 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12 mm / F1.8 ~ F2.85
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Manual
• Field of View: 35° ~ 99° (Horizontal), 20° ~ 54° (Vertical), 41° ~ 123° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via Audio input /output (full duplex)
• Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card, File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Dimensions: Ø: 141 x 103 mm
• Weight: Net: 836 g
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V / 8.6W; IEEE 802.3af PoE Class 3 / 9.7W
• Warranty: 3 years
• What's Included: Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, CD (User's manual, quick installation guide, Installation Wizard 2, ST7501, 32-channel recording software). Power supply not included.

Vivotek FD8367-V Overview

VIVOTEK FD8367-V is a robust, outdoor-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8367-V is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. Providing such a polished image quality, FD8367-V is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users. To meet outdoor applications, FD8367-V is also designed with IP66-rated housing to help the camera body withstand rain and dust and high pressure water jets from any direction while its IK10-rated housing can provide the protection against the vandal act and impact.
