Vivotek FD8369A-V-B

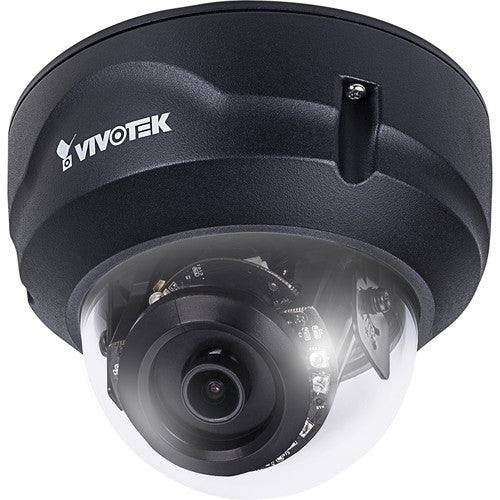

Vivotek FD8369A-V-B 2MP IR Fixed Dome Network Camera (Black)

Vivotek

Vivotek FD8369A-V-B 2MP IR Fixed Dome Network Camera (Black)

$157.50
Discontinued
SKU: FD8369A-V-B
Link to Manufacturer's Page

Contact

Replaced by the FD9360-H

Vivotek FD8369A-V Features

  • Available in a White housing (FD8369A-V) or a Black housing (FD8369A-V-B)
  • Max Resolution: 1920 x 1080 (2MP)
  • Image Sensor: 1/2.9" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.06 Lux @ F1.8 (Color); 0.01 Lux @ F1.8 (B/W)
  • IR Illuminators: Yes, with Smart IR
  • IR Illuminator Range: up to 30m
  • Lens Type: Fixed-focal
  • Focal Length: f = 2.8 / F1.8
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: N/A
  • Focus: Manual
  • Field of View: 105° (Horizontal), 60° (Vertical), 109° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 1920x1080 in both compression modes
  • WDR Technology: WDR Enhanced (69.4 dB)
  • Image Settings: Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, video rotation, defog
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection / Alarm Events Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Dimensions: Ø 129 mm x 93 mm
  • Weight: Net: 590.6 g
  • Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
  • Operating Humidity: 90%
  • Power/Consumption: IEEE 802.3af PoE Class 0 / Max. 10.5 W
  • Warranty: 2 years
  • What's Included: User's manual, quick installation guide, Installation Wizard 2, VAST 32-channel recording software, Quick installation guide, alignment sticker, screw pack

Vivotek FD8369A-V Overview

VIVOTEK’s FD8369A-V is an easy-to-use fixed dome network camera specifically designed for outdoor security applications, with a 2MP sensor enabling a viewing resolution of 1920x1080 at a smooth 30 fps. Dynamic and highly adaptable, the FD8369A-V is an all-in-one camera capable of capturing high quality video at high resolutions of up to 2 Megapixels.

The FD8369A-V features VIVOTEK's sophisticated Smart Stream II technology, allowing the camera to optimize image quality for desired regions, and thus ensure maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.

In order to adapt to constantly changing outdoor lighting conditions, the FD8369A-V features a removable IR-cut filter as well as IR illuminators effective up to 30M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in a weather-proof IP66-rated housing, making it impervious to rain and dust. The robustness of the FD8369A-V is further strengthened by the adoption of rugged IK10 design housing.

Incorporating a number of advanced features standard for VIVOTEK cameras, including video rotation, defog, a dedicated MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8369A-V is the ideal solution for your outdoor surveillance needs.
