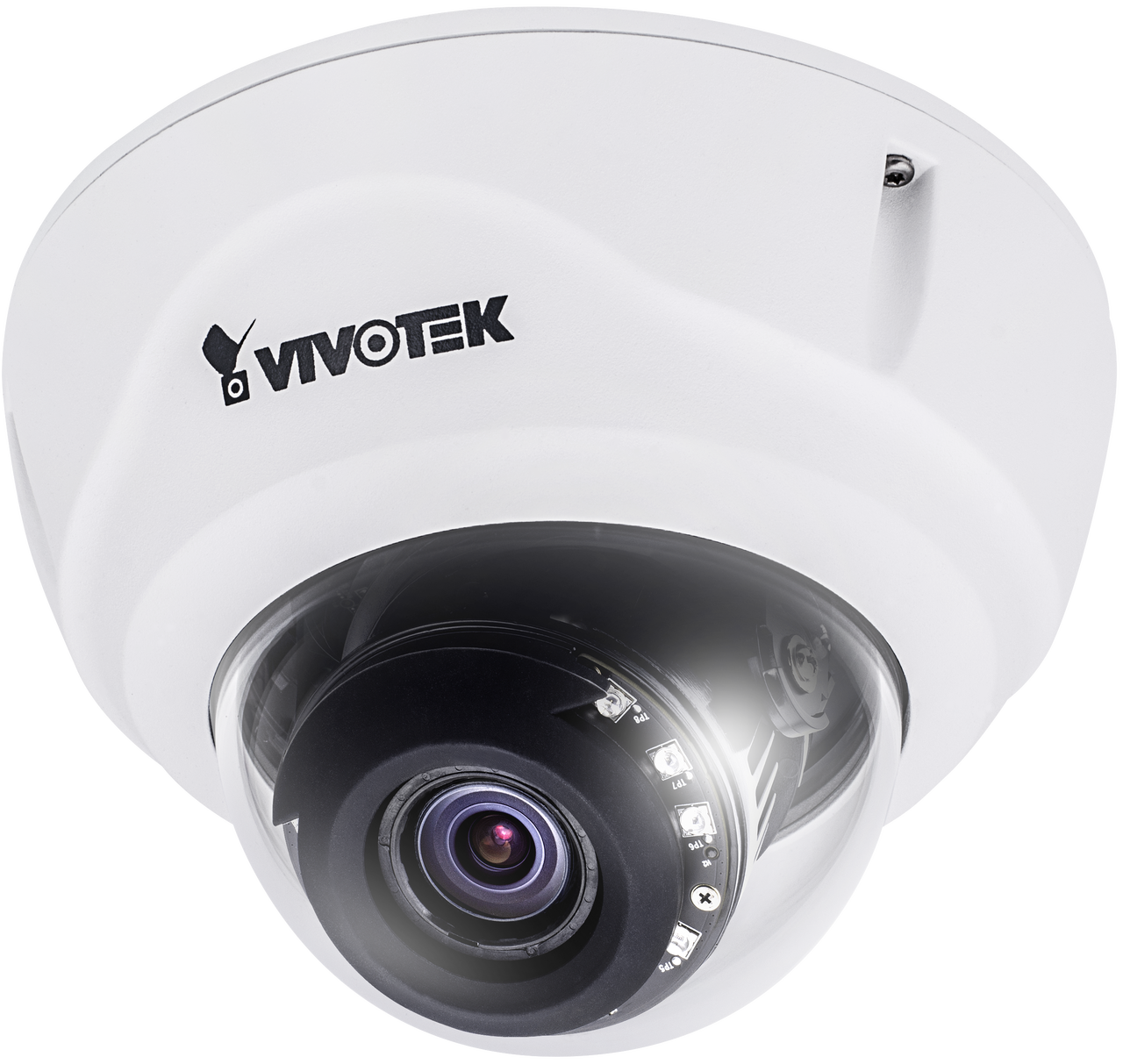

Vivotek FD836B-HVF2 2MP Dome Network Camera

Discontinued, replaced by the FD836BA-HVF2

Vivotek FD836B-HVF2 Features

• Max Resolution: 1920x1080 (2MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.06 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Fixed-focal
• Focal Length: f = 2.8 mm / F1.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: Auto
• Focus: Manual
• Field of View: 110° (Horizontal), 64° (Vertical), 135° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes, WDR
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via Internal microphone & input External line output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66 & Vandal-proof IK10
• Dimensions: Ø 155 x 103 mm
• Weight: 920 g (2.02 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 7.5 W (DC 12V) or Max. 9 W (PoE)
• Warranty: 2 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD836B-HVF2 Overview

VIVOTEK's FD836B-HVF2 is a robust, dome-style network cameras designed for diverse outdoor applications. Equipped with a Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD836B-HVF2 is an all-in-one outdoor camera capable of capturing high quality and high resolution video at up to 2 Megapixels whether in high contrast or low light with WDR and SNV technology. To meet the demands of outdoor applications, VIVOTEK's FD836B- HVF2 provides fixed focus for simple operation without extra electrical power and armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10-rated housing provides robust protection against acts of vandalism or other impacts. When choosing VIVOTEK FD836B-HV series, customers will be offered four options: the FD836B-EHTV, FD836B-HTV, FD836B-EHVF2, and FD836B-HVF2. Different options can be chosen based on the requirements of your application, such as the need for a specific focusing method or operating environment temperature.
