Vivotek

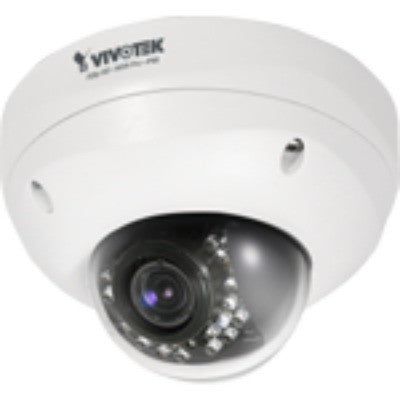

Vivotek FD8371V Outdoor Vandal Proof Dome Network Camera
Discontinued - Recommended Replacement: FD9371-HTV
Discontinued; replaced by the FD9371-HTV.
Vivotek FD8371V Features
- Max Resolution: 2048 x 1536 (3.1MP)
- Image Sensor: 1/2.8" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function with Smart IR Technology to Avoid Overexposure
- Minimum Illumination: 0.33 Lux @ F1.3, 50 IRE (Color @1/30 sec); 0.05 Lux @ F1.3, 50 IRE (Color@1/5 sec); 0.001 Lux @ F1.3 50 IRE (B/W)
- IR Illuminators: Yes, with Smart IR Technology
- IR Illuminator Range: 20 m
- Lens Type: Vari-Focal
- Focal Length: f = 3 ~ 10mm, F1.3 ~ F2.5
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
- Iris: P-iris / DC-iris (Reserved)
- Focus: Smart Focus System for Remote and Precise Focus Adjustment
- Field of View: 32° ~ 99° (horizontal); 24° ~ 72° (vertical); 40° ~ 128° (diagonal)
- Compression Styles: H.264/MJPEG/MPEG-4
- Frame Rate: H.264: 30 fps at 2048x1536, 60 fps at 1920x1080; MPEG-4: 30 fps at 2048x1536, 50 fps at 1920x1080; MJPEG: 30 fps at 2048x1536, 60 fps at 1920x1080
- Image Settings: WDR Enhanced, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capability: Supports two-way audio via external microphone input and output
- Alarm/Event Management: Triple-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-Board Storage: MicroSD / SDHC / SDXC Card Slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated housing
- Dimensions: Ø: 173 mm x 115 mm
- Weight: 1240 g (2.73 lb)
- Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Operating Humidity: N/A
- Power: IEEE 802.3af PoE Class 3, 24V AC, 12V DC
- Warranty: 2 years
- What's Included: User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software, Quick installation guide, warranty card, sun shield, wall mount bracket, waterproof RJ45 Ethernet enclosure, alignment sticker / desiccant bag, waterproof connector
VIVOTEK FD8371V are professional outdoor dome network cameras offering 30 fps @ 3-Megapixel or 60 fps @ 1080p resolution with superb image quality. As professional day/night cameras, FD8371V feature a Smart IR technology which provides the excellent ability of anti-overexposure and noise reduction to adjust the IR lighting intensity instantly based on environmental lighting change. Featuring 3D Noise Reduction Technology, it enables the FD8371V to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. By combining with WDR Enhanced technology, users can identify image details in extremely bright as well as dark environments. The FD8371V also feature Smart Stream Technology, which can be used to optimize resolution on a desired object or area to maximize bandwidth usage. The FD8371V come with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System to make installation and adjustment easier by allowing for remote focus and zoom adjustment. The IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while IK10-rated housing provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8371V's performance and reliability in extremely cold or warm weather.
