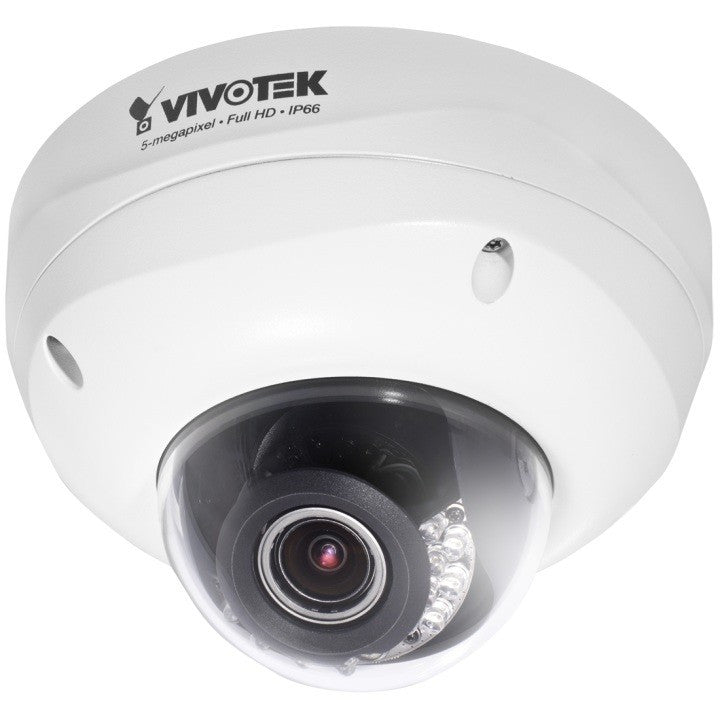

Vivotek FD8372 5 Megapixel Fixed Dome Network Camera

Vivotek

Vivotek FD8372 5 Megapixel Fixed Dome Network Camera

Sale price$845.00
Discontinued
SKU: FD8372

Contact

Discontinued, replaced with the FD8381-EV.

Vivotek FD8372 Features

  • Max Resolution: 2560x1920
  • Image Sensor: 1/2.5" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, removable IR-cut filter for day & night function
  • Minimum Illumination: 0.03 Lux @ F1.8, 50 IRE (color), 0.001 Lux @ F1.8, 50 IRE ( B/W )
  • IR Illuminators: Yes
  • IR Illuminator Range: 20 Meters
  • Lens Type: Vari-focal
  • Focal Length: f = 3.6~9, 1.8 (wide), 3.4 (tele)
  • Zoom: 4x digital zoom ( 4x on IE plug-in )
  • Iris: Auto
  • Focus: Auto, Smart Focus Sytem: remote focal & focus control
  • Field of View: 35.45° ~ 88.90° (horizontal), 26.69° ~ 67.01° (vertical), 43.99° ~ 111.00° (diagonal)
  • Compression Styles: H.264, MJPEG & MPEG-4
  • Frame Rate: H.264: 10 fps at 2560x1920, 30 fps at 1920x1080, MPEG-4: 10 fps at 1920x1536, 25 fps at 1920x1080, MJPEG: 13 fps at 2560x1920, 30 fps at 1920x1080
  • Image Settings: WDR enhanced, Adjustable image size, quality, and bit rate, Time stamp and text caption overlay, Flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, Gain, BLC (Backlight compensation), Supports privacy masks, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Audio input / Audio output (half duplex)
  • Alarm/Event Management: Triple-window video for motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, event notification using HTTP, SMTP, FTP, NAS server, file upload via HTTP, SMTP, FTP, NAS server
  • ONVIF: Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Vandal-proof IK10-rated metal housing, Weather-proof IP66-rated housing
  • Dimensions: 173 mm x 115 mm
  • Weight: 1453 g
  • Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
  • Operating Humidity: 80% RH
  • Power: 802.3af Power-over-Ethernet (Class 3), 24V AC, max 7.53 W (PoE), max 7.2 W (AC 24V)
  • Warranty: 2 Years
  • What's Included: FD8372, Bushing, Screws, Mounting Plate, Alignment Sticker, Power Adapter, Camera Stand, Waterproof Connector, Software CD, Quick Installation Guide, L-Type Hex Key Wrench

Vivotek FD8372 Overview

VIVOTEK FD8372 is a professional fixed dome network camera offering 5-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. Featuring 5-megapixel resolution and high-performance H.264/MPEG-4/MJPEG compression technology, the FD8372 offers extra-smooth video and wide coverage. The FD8372 employs many advanced features to allow the user to fully utilize the high definition video. The ePTZ function enables users to zoom in and focus on a region of interest (ROI) in the camera view with only a few clicks of a mouse. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus VIVOTEK introduces the Smart Focus System to make installation and adjustment easier. VIVOTEK adopts lenses with built-in stepping motors that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. As with other true day/night models, the camera comes with a removable IR-cut filter and IR illuminators (20 meters) to provide great clarity and contrast 24 hours a day. The metal vandal-proof housing effectively provides robust protection from vandalism, and the IP66 rating provides a robust solution suitable for demanding outdoor environments.
