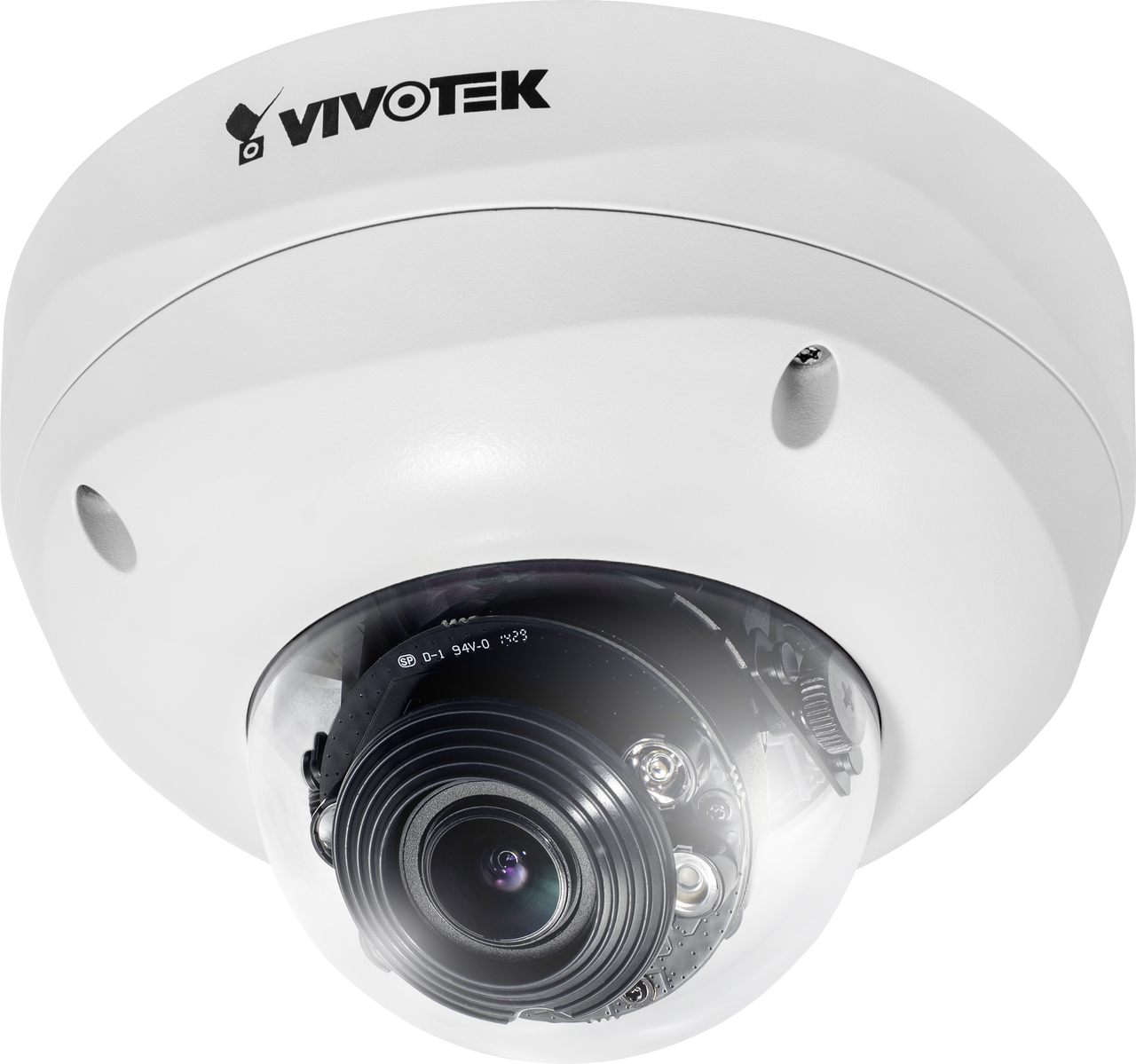

Vivotek FD8373-EHV 3MP WDR Pro Smart Focus System Network Camera


Vivotek FD8373-EHV 3MP WDR Pro Smart Focus System Network Camera

Sale price$675.00


Discontinued, replaced by the FD9371-EHTV.

Vivotek FD8373-EHV Features

  • Max Resolution: 2048x1536 (3MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.33 Lux @ F1.8 (Color), 0.001 Lux @ F1.8 (B/W)
  • IR Illuminators: Yes, 4 IR LEDs with Smart IR technology
  • IR Illuminator Range: Effective up to 20 meters
  • Lens Type: Vari-focal, remote focus
  • Focal Length: f = 2.8 ~ 12 mm
  • Zoom: ePTZ, 48x digital zoom ( 4x on IE plug-in,12x built-in )
  • Iris: P-iris
  • Focus: Smart Focus System for Remote and Precise Focus Adjustment
  • Field of View: 33° ~ 104° (horizontal), 19° ~ 56° (vertical), 39° ~ 121° (diagonal)
  • Compression Styles: MicroSD/SDHC/SDXC card slot
  • Frame Rate: H.264: 20 fps @ 2048x1536, 30 fps @ 1920x1080; MJPEG: 20 fps @ 2048x1536, 30 fps @ 1920x1080
  • WDR Technology: WDR Pro, 100dB
  • Image Settings: Adjustable resolution, quality and bitrate, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, Smart Stream Seamless recording, new text on video, SD recording 1HR
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-way Audio (full duplex) with External microphone input & Audio output
  • Alarm/Event Management: Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF:Yes
  • Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, MicroSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Weather-proof IP66-rated housing & Vandal-proof IK10-rated housing
  • Dimensions: Ø: 173 mm x 115 mm
  • Weight: Net: 1,240g
  • Operating Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
  • Operating Humidity: N/A
  • Power/Consumption: DC12V/AC24V & IEEE 802.3af PoE / DC Max.25.2W(Heater on), 8W(Heater off), AC Max. 30.3W(Heater on), 8.8W(Heater off), PoE Max. 10.6W
  • Warranty: 3 Year
  • What's Included: FD8373-EHV Network Camera, Quick installation guide, warranty card, alignment sticker, desiccant bag, waterproof connector, CD (User's manual, quick installation guide, Installation Wizard 2, free ST7501 32-channel VMS)

Vivotek FD8373-EHV Overview

VIVOTEK's FD8373-EHV network camera features a 3-Megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR Pro feature allows the camera to capture both the dark and bright areas of an image and combine the differences to generate a highly realistic representation of the original scene. This feature enables the camera to provide video quality very close to the capabilities of the human eye. The FD8373-EHV can be deployed widely in high contrast outdoor environments such as parking areas and streets. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field. The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures smooth operation even under a multitude of harsh weather conditions while its IK10-rated housing can provide the protection against the vandal act and impact. Additionally, the wide temperature range further enhances the FD8373-EHV's performance and reliability in extremely cold environments.
