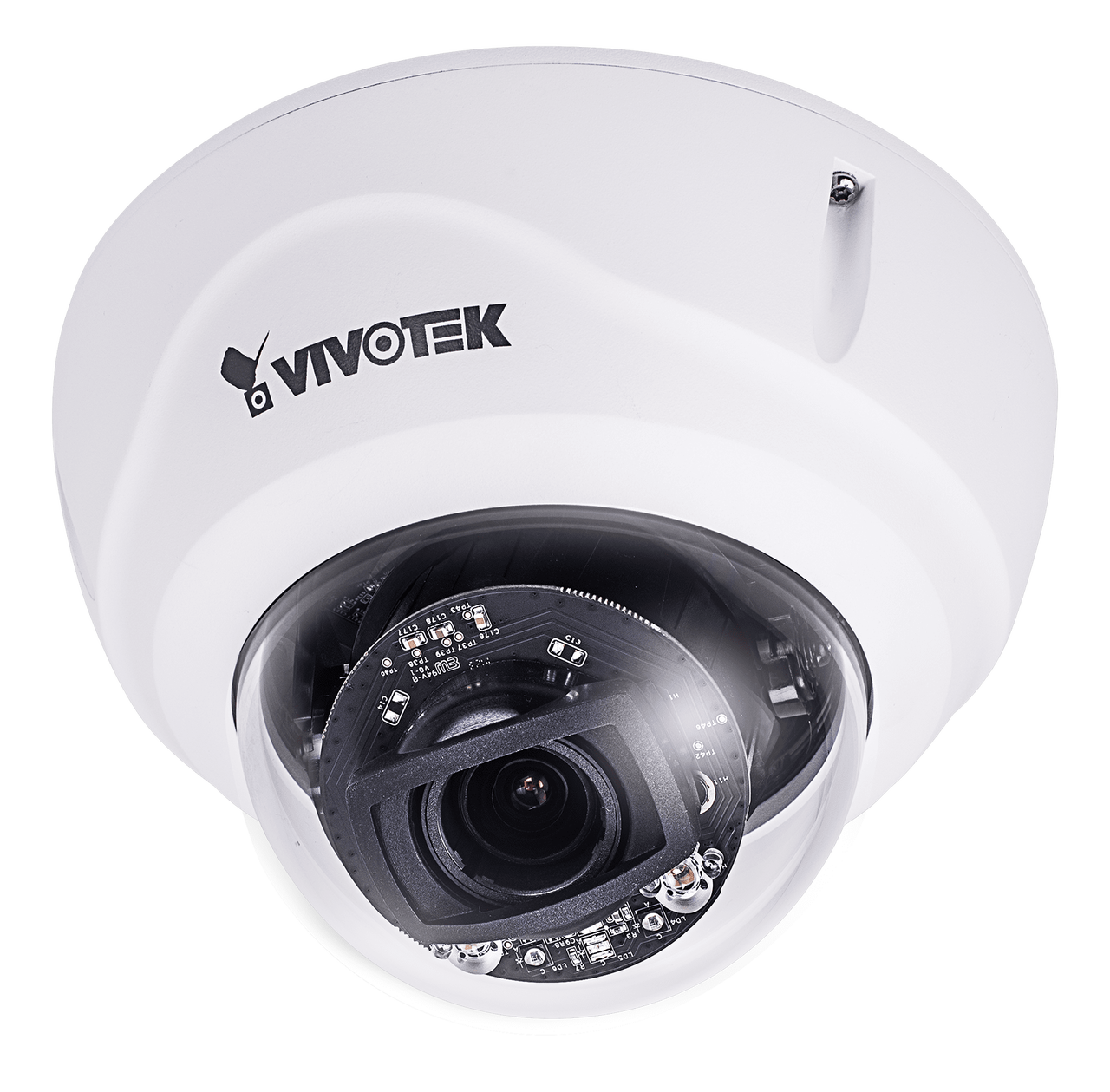

Vivotek FD8377-HTV 4MP Remote Focus Vari-Focal Dome Network Camera

Replaced by the FD9389-HTV

Vivotek FD8377-HTV Features

• Max Resolution: 2688x1520 (4MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
• Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 2.8 ~ 12mm / F1.4 ~ F2.8
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Auto
• Field of View: 32° ~ 93° (Horizontal), 18° ~ 50° (Vertical), 37° ~ 110° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 2688x1520 (WDR Pro off); 24 fps @ 2560x1440 (WDR Pro on)
• WDR Technology: WDR Pro (110 dB)
• Image Settings: Adjustable resolution, quality and constant bit rate control; Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, HLC, AE speed, video rotation
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two way audio via external microphone input & external line output
• Alarm/Event Management: Five-window motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, PIR detection, MicroSD card life expectancy, Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weatherproof, IK10 vandal-proof
• Dimensions: Ø 155 x 104 mm
• Weight: 862 g (1.9 lb)
• Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V, IEEE 802.3af PoE Class 0 / Max. 11 W
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker, screw pack

Vivotek FD8377-HTV Overview

VIVOTEK’s FD8377-HTV is a series of outdoor dome network cameras equipped with a 4MP sensor enabling resolution of 2688x1520 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD8377-HTV is capable of capturing high quality images whether in high contrast or low light environments.

The FD8377-HTV includes a remote focus lens for different monitoring range demands and is equipped with 30-meter IR illuminators for improved night visibility. For harsh outdoor environments, the FD8377-HTV is encased in an IP66 and IK10-rated housing, capable of operating from -30°C to 50°C.

Through employing VIVOTEK's Smart Stream II technology, the FD8377-HTV series provides great image quality while still maintaining low bandwidth. Additionally, VADP (VIVOTEK Application Development Platform) allows users to add customized applications for various user scenarios.
