Vivotek FD8377-HV-B

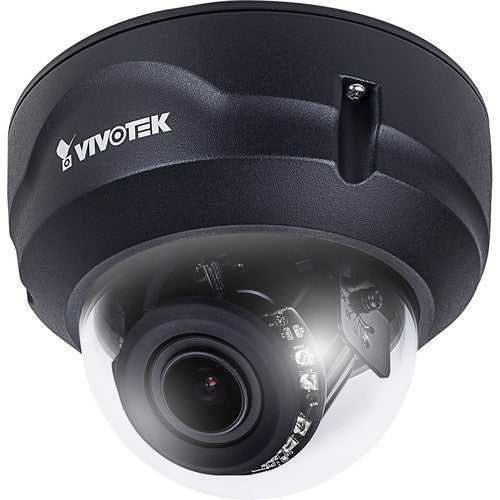

Vivotek FD8377-HV-B 4MP Vari-Focal Dome Network Camera (Black)

Vivotek

Vivotek FD8377-HV-B 4MP Vari-Focal Dome Network Camera (Black)

$322.50
Discontinued
SKU: FD8377-HV-B

Discontinued - Recommended Replacement: N/A

Link to Manufacturer's Page

Contact

Replaced by the IT9389-HT-B

Vivotek FD8377-HV Features

  • Max Resolution: 2688x1520 (4MP)
  • Image Sensor: 1/3" Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Removable IR-cut filter for day & night function
  • Minimum Illumination: 0.1 Lux @ F1.4 (Color); 0.01 Lux @ F1.4 (B/W)
  • IR Illuminators: Yes, with Smart IR
  • IR Illuminator Range: up to 30m
  • Lens Type: Vari-focal
  • Focal Length: f = 2.8 ~ 12mm / F1.4 ~ F2.2
  • Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Iris: DC auto iris
  • Focus: Manual
  • Field of View: 33° ~ 105° (H); 18° ~ 54° (V); 38° ~ 125° (D)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps @ 2688x1520 (without WDR Pro); 24 fps @ 2560x1440
  • WDR Technology: WDR Pro (110 dB)
  • Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Five-window motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
  • ONVIF: Yes
  • Security: N/A
  • Users: Live viewing for up to 10 clients
  • On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof, IK10 vandal-proof
  • Dimensions: Ø 129 x 94 mm
  • Weight: 591 g (1.3 lb)
  • Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
  • Operating Humidity: 90%
  • Power/Consumption: IEEE 802.3af PoE Class 0 / Max. 10 W
  • Warranty: 2 years
  • What's Included: Camera, Quick installation guide, alignment sticker, screw pack

Vivotek FD8377-HV Overview

VIVOTEK’s FD8377-HV is an outdoor-ready 4-Megapixel IR fixed dome camera offering high video quality with up to 30 fps at 2688x1520. With WDR Pro technology and a 2.8 ~ 12 mm vari-focal lens, the FD8377-HV is capable of capturing superb quality video under high contrast environments.

To adapt to challenging outdoor lighting conditions, the FD8377-HV comes with a removable IR-cut filter and built-in IR illuminators effective up to 30 meters for both day and night applications. Further, the FD8377-HV is armed with a robust IP66- and IK10-rated housing to enable the all-in one camera to withstand rain and dust as well as to protect against vandalism or tampering.

VIVOTEK's sophisticated Smart Stream II technology allows the FD8377-HV to optimize image quality for desired regions, and thus ensure maximum efficiency of bandwidth usage and savings of up to 50% on bandwidth and storage requirements.
