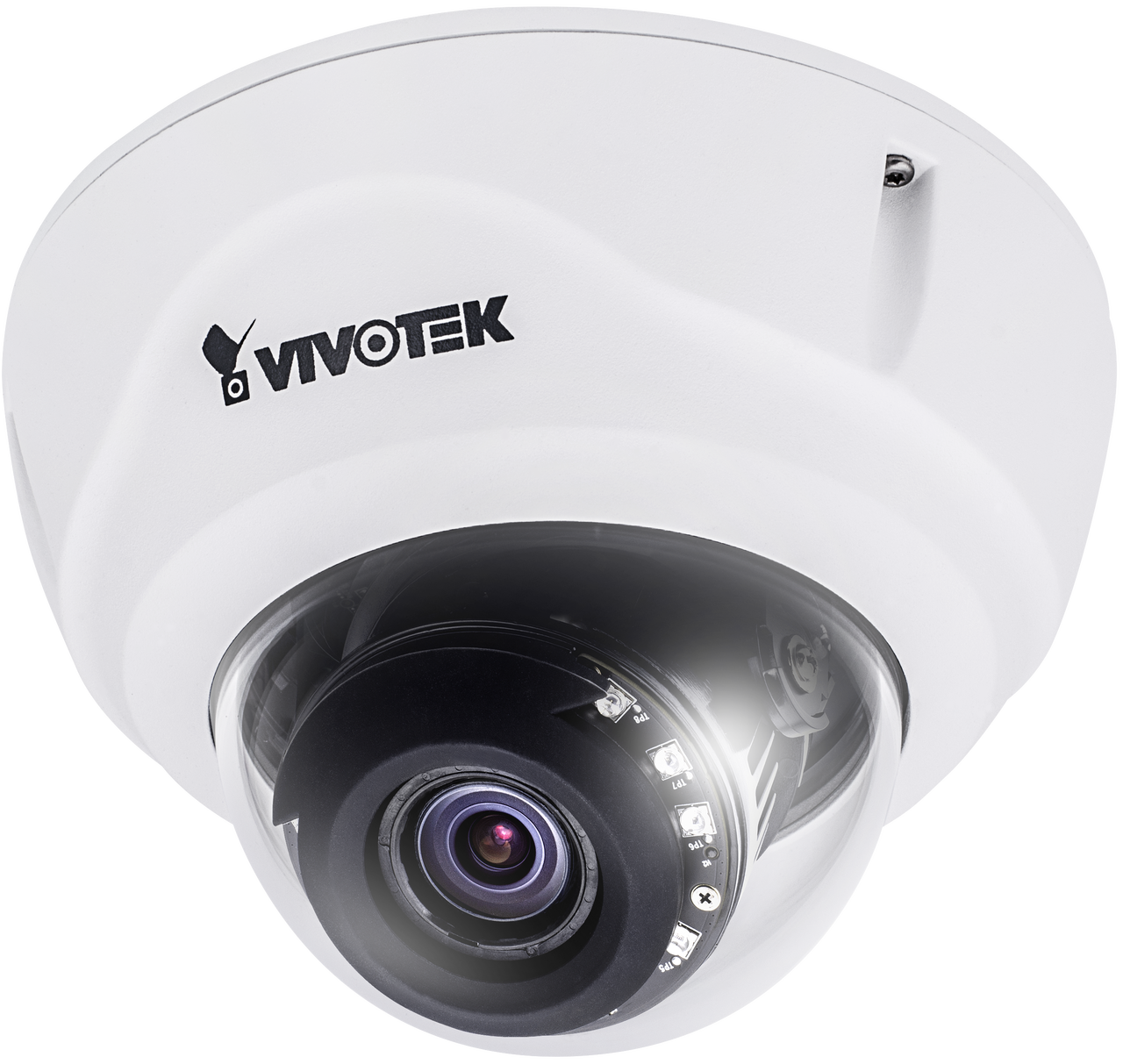

Vivotek FD8382-TV 5MP Remote Focus Dome Network Camera

Replaced by the FD9387-HTV

Vivotek FD8382-TV Features

• Max Resolution: 2560x1920 (5MP)
• Image Sensor: 1/3.2" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.04 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W)
• IR Illuminators: Yes, with Smart IR
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 3 ~ 9 mm / F1.2 ~ F2.3
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote
• Field of View: 35° ~ 78° (Horizontal), 27° ~ 54° (Vertical), 44° ~ 101° (Diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30 fps @ 1920x1080 in both compression modes
• WDR Technology: Yes, WDR Enhanced
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via Internal microphone input & External line output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66 & Vandal-proof IK10
• Dimensions: Ø 155 x 103 mm
• Weight: 920 g (2.02 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: N/A
• Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 8 W (DC 12V) or Max. 9.5 W (PoE)
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD8382-TV Overview

VIVOTEK’s FD8382-TV is an economical but professional outdoor fixed dome network camera in VIVTOTEK’s 5MP Lite series, which offer up to 15 fps at 5-Megapixel or 30 fps at 1080p resolution at a competitive price. To create the perfect focus required to reap the benefits of higher resolution, VIVOTEK’s FD8382-TV provides remote focus with built-in stepping motors and P-iris for precise adjustment remotely. Designed to provide higher resolution, the FD8382-TV is an ideal solution for those who demand sharper images with more detail. With powerful 3D Noise Reduction technology and Smart Stream technology, the IB8382-TV can also optimize resolution for a desired object or area to maximize the efficiency of bandwidth usage. To ensure higher resolution even in harsh environments, VIVOTEK’s FD8382-TV is also armed with IP66-rated housing to help the camera body withstand rain, dust and even high pressure water jets from any direction, while its IK10-rated housing provides protection against acts of vandalism or other impacts. With the highly flexible VADP (VIVOTEK Application Development Platform), users can extend the features of this FD8382 series by adding third-party applications for the FD8382-VF2, FD8382-EVF2, FD8382-TV, and FD8382-ETV. Thus, the FD8382 series is not only equipped with multiple focusing methods and wide temperature range options, but is also highly flexible and able to be expanded to meet a wide range of requirements.
