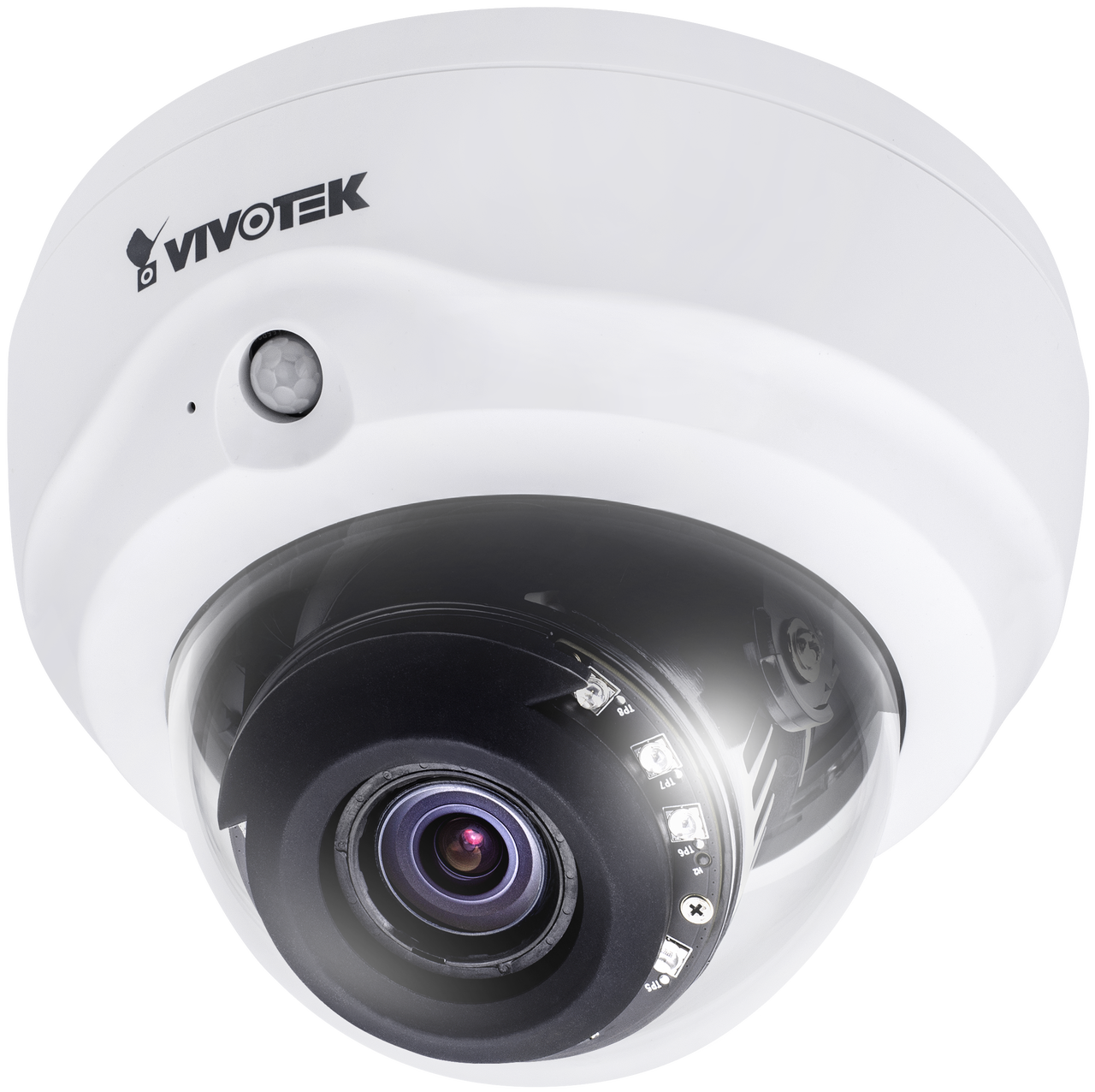

Vivotek FD9171-HT 3MP H.265 Vari-Focal Dome Network Camera

REPLACED BY THE FD9187-HT OR THE FD9189-HT.

Vivotek FD9171-HT Features

• Max Resolution: 2048x1536 (3MP)
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.01 Lux @ F1.2 (Color), 0.001 Lux @ F1.2 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 30m
• Lens Type: Vari-focal
• Focal Length: f = 3 ~ 9 mm / F1.2 ~ F2.3
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: P-iris
• Focus: Remote Focus
• Field of View: 41° ~ 86° (Horizontal), 31° ~ 64° (Vertical), 51° ~ 113 (Diagonal)
• Compression Styles: H.265 & H.264 & MJPEG
• Frame Rate: H.264 & H.265: 30 fps @ 2048x1536; MJPEG: 15 fps @ 2048x1536
• WDR Technology: Yes, WDR Pro
• Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D Noise Reduction, video rotation, defog
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via External microphone input & Audio output
• Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 138 x 103 mm
• Weight: 530 g (1.16 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: DC 12V or IEEE 802.3at PoE / Max. 9.6 W (DC 12V) or Max. 12 W (PoE)
• Warranty: 3 years
• What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)

Vivotek FD9171-HT Overview

VIVOTEK's FD9171-HT is a brand-new professional H.265 high- efficiency indoor dome network camera, offering 30 fps @ 3-Megapixels with outstanding image quality. Employing H.265 technology enables the camera to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II enables the camera to optimize resolution for a desired object or area and therefore to maximize efficiency of bandwidth usage. Combining H.265 and Smart Stream II, the FD9171-HT can reduce both bandwidth and storage consumption up to 80%* while producing image quality of the high standard. To meet the demands of indoor applications, VIVOTEK’s FD9171-HT features a built-in PIR sensor to help detect any unexpected events and to provide real-time responses.
