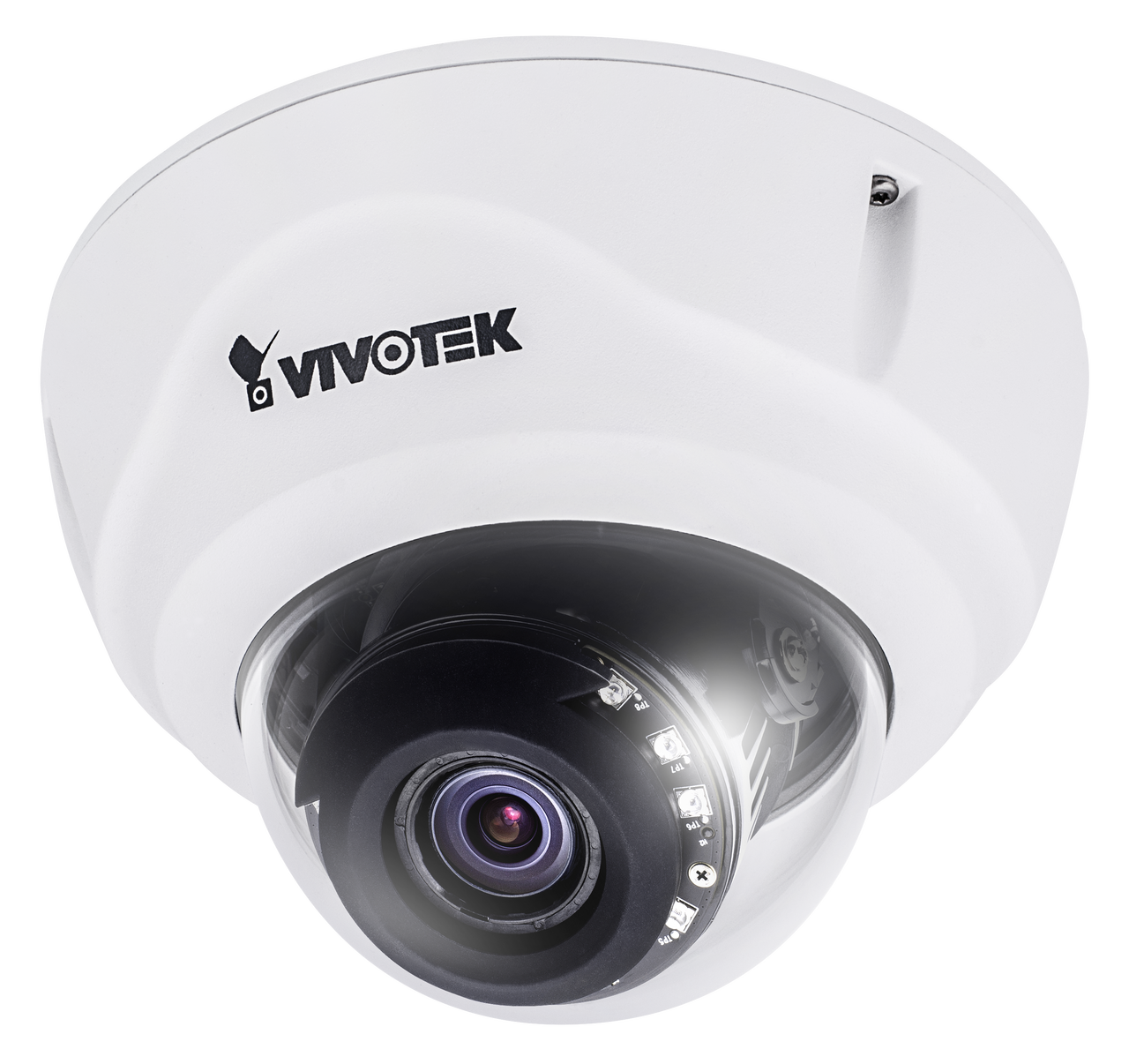

Vivotek FD9181-HT 5MP H.265 Remote Focus Dome Network Camera
REPLACED BY THE FD9187-HT OR THE FD9189-HT.
Vivotek FD9181-HT Features
- Max Resolution: 2560x1920 (5MP)
- Image Sensor: 1/1.8" Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
- Minimum Illumination: 0.04 Lux @ F1.3 (Color) 0.001 Lux @ F1.3 (B/W)
- IR Illuminators: Yes
- IR Illuminator Range: up to 30m
- Lens Type: Vari-focal
- Focal Length: f = 4 ~ 9 mm / F1.3 ~ F2.2
- Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Iris: P-iris
- Focus: Remote Focus
- Field of View: 45° ~ 93° (Horizontal) 34° ~ 68° (Vertical) 64° ~ 121° (Diagonal)
- Compression Styles: H.265 & H.264 & MJPEG
- Frame Rate: H.265 & H.264: 30 fps @ 2560x1920, 60 fps @ 1920x1080; MJPEG: 12 fps @ 2560x1920, 30 fps @ 1920x1080
- WDR Technology: Yes, WDR Pro
- Image Settings: Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3DNR, video rotation, defog, DIS
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Supports two-way audio via External microphone input & Audio output
- Alarm/Event Management: Five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, built-in SD/SDHC/SDXC card slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: Ø 138 x 103 mm
- Weight: 530 g
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F )
- Operating Humidity: 90%
- Power/Consumption: DC 12V or IEEE 802.3af/at PoE Class 0 / Max. 12.8W
- Warranty: 3 years
- What's Included: Camera, Quick installation guide, warranty card, alignment sticker/desiccant bag, screw pack, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST recording software)
Vivotek FD9181-HT Overview
VIVOTEK's FD9181-HT is a brand-new professional H.265 high-efficiency indoor dome network camera, offering 30 fps @ 5-Megapixel or 60 fps @ 1080p with outstanding image quality. By employing H.265 technology, the camera is able to provide higher and more efficient image compression rates than previous H.264 systems. In addition, VIVOTEK's sophisticated Smart Stream II technology enables the cameras to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage. Combining both H.265 and Smart Stream II, the FD9181-HT can reduce bandwidth and storage consumption by up to 80%* while retaining exceptional 5-Megapixel image quality. To meet the demands of indoor applications, VIVOTEK’s FD9181-HT features a built-in PIR sensor to help detect any unexpected events and to provide real-time responses .
